Target Components

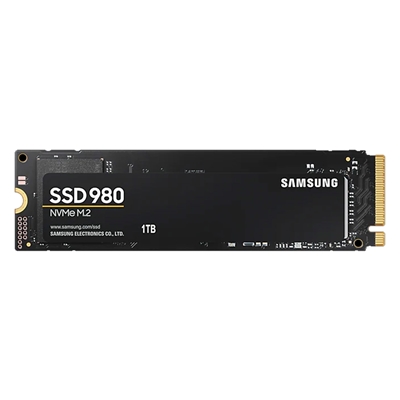

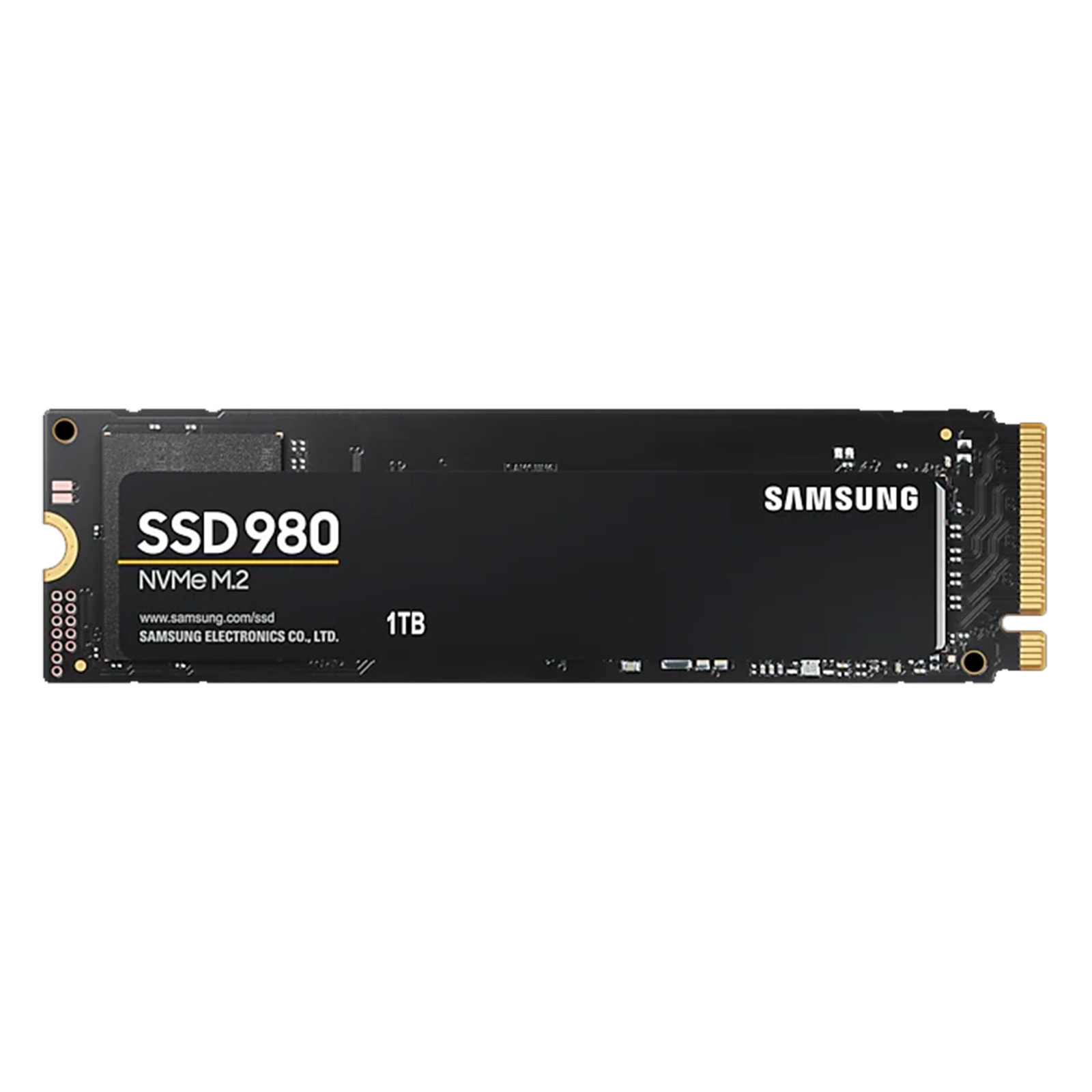

Samsung 980 (MZ-V8V1T0BW) 1TB NVMe SSD, M.2 Interface, PCIe Gen3, 2280, Read 350MB/s, Write 3000MB/s, 5 Year Warranty

Key Specifications
Type Of DriveM.2
ConnectionM.2 NVMe PCie 3.0
Capacity1TB
PackagingRetail
/productImages/80/HDSAM-MZV8V1T0BW.JPG
/productImages/80/155045.JPG
/productImages/80/155046.JPG
/productImages/80/155051.JPG
Manufacturer : SAMSUNG
EAN : 8806090572210
Manufacturer Part Code : MZ-V8V1T0BW
Weight : 0.1 kg
Login For Pricing

Key Specifications
Type Of DriveM.2
ConnectionM.2 NVMe PCie 3.0
Capacity1TB
PackagingRetail
Manufacturer :
SAMSUNG

EAN :
8806090572210

Manufacturer Part Code :
MZ-V8V1T0BW

Weight :
0.1 kg
Recommended Products
1298Enclosures & Docks
See details
1285Brackets & Converters
See details
1337Internal Cables
See details
1289Motherboards
See details

Upgrade to breathtaking NVMe speed
It's time to maximise your PC's potential with the 980. Whether you need a boost for gaming or a seamless workflow for heavy graphics, the 980 is the smart choice for outstanding SSD performance, and it's all backed by an NVMe interface and PCIe 3.0 technology.

Packed with speed
Get right to it. The 980 harnesses nearly all the speed advantages of PCIe 3.0 through HMB technology and dramatic NVMe efficiency. The DRAM-less design delivers exceptional value, achieving breakneck sequential read/write speeds up to 3,500/3,000 MB/s, over 6.2x the speed of SATA SSDs.

Keep moving with Full Power Mode
Keep your SSD running at peak level for nonstop, consistent high performance with Full Power Mode. Switch it on through Samsung Magician software to always keep your SSD in active mode. Instantly jump right back to intensive work with huge files, graphics-heavy games, or even normal PC usage.

Built for the long run
Keep your files safe with an SSD that's in it for the long haul. With up to 600 TBW and a 5-year limited warranty, the 980's optimized endurance comes with proven reliability thanks to Samsung's in-house solutions, from the state-of-the-art controller to V-NAND and the latest firmware.

Reliable thermal control
High-performance SSDs usually require high-performance thermal control. To ensure stable performance, the 980 uses nickel coating to help manage the controller's heat level and a heat spreader label to deliver effective thermal control of the NAND chip.

Smart thermal solution
Embedded with Samsung's cutting-edge thermal control algorithm, the 980 manages heat on its own to deliver durable and reliable performance. To minimize performance fluctuations in the long haul, Samsung's Dynamic Thermal Guard technology maintains the 980's temperature at optimal levels.

Samsung Magician software
Unlock the full power of the 980 with Samsung Magician's intuitive yet advanced optimization tools. Monitor drive health, optimize performance, protect valuable data, and receive important updates with Magician to ensure you're always getting the best performance out of your SSD.

World's No.1 Flash Memory
Experience superior performance and reliability that you can only get from the world's number one brand for flash memory since 2003. All firmware and components, including Samsung's world-renowned DRAM and NAND, are produced in-house, allowing end-to-end integration for quality you can trust.

Capacity
1TB

Model
980 EVO MZ-V8V1T0BW

Form Factor
M.2 2280

Interface
PCIe 3.0 (x4)

Connections
1 x M.2 (PCIe)

Host Controller
NVMe 1.4
Samsung Pablo

Storage Memory
Samsung V-NAND 3bit MLC

Max Read/Write
Read: Up to 3500 MB/s
Write: Up to 3000MB/s

Max 4KB Random Read/Write
Read: Up to 50,000 IOPS
Write: Up to 48,000 IOPS

Cache Memory
HMB(Host Memory Buffer)


MTBF
1,500,000 hours

Dimensions (W x H x D)
Max 80.15 x Max x 22.15 x Max 2.38 (mm)

Weight
8g

Packaging
Retail

Additional Features
Magician Software for SSD management
Manufacturer's Website:
Warranty:
1-Year Return To Base 4 Year Manufacturers Warranty- https://samsung.hanaro.eu/WebPortal/
ENERGY MANAGEMENT
Operating voltage 3.3 V
Power consumption (max) 5.3 W
Power consumption (average) 4.6 W
FEATURES
Interface PCI Express 3.0
Security algorithms 256-bit AES
Mean time between failures (MTBF) 1500000 h
Memory type V-NAND
Read speed 3500 MB/s
Write speed 3000 MB/s
SSD capacity 1 TB
S.M.A.R.T. support Yes
Random write (4KB) 480000 IOPS
Random read (4KB) 500000 IOPS
Component for PC/Laptop
Hardware encryption Yes
PCI Express interface data lanes x4
SSD form factor M.2
Harmonized System (HS) code 84717070
NVMe Yes
NVMe version 1.4
LOGISTICS DATA
Country of origin South Korea
Harmonized System (HS) code 84717070
OPERATIONAL CONDITIONS
Operating temperature (T-T) 0 - 70 °C
Operating vibration 1500 G
PACKAGING DATA
Package weight 78 g
WEIGHT & DIMENSIONS
Weight 8 g
Height 2.38 mm
Width 80.2 mm
Depth 22.1 mm
