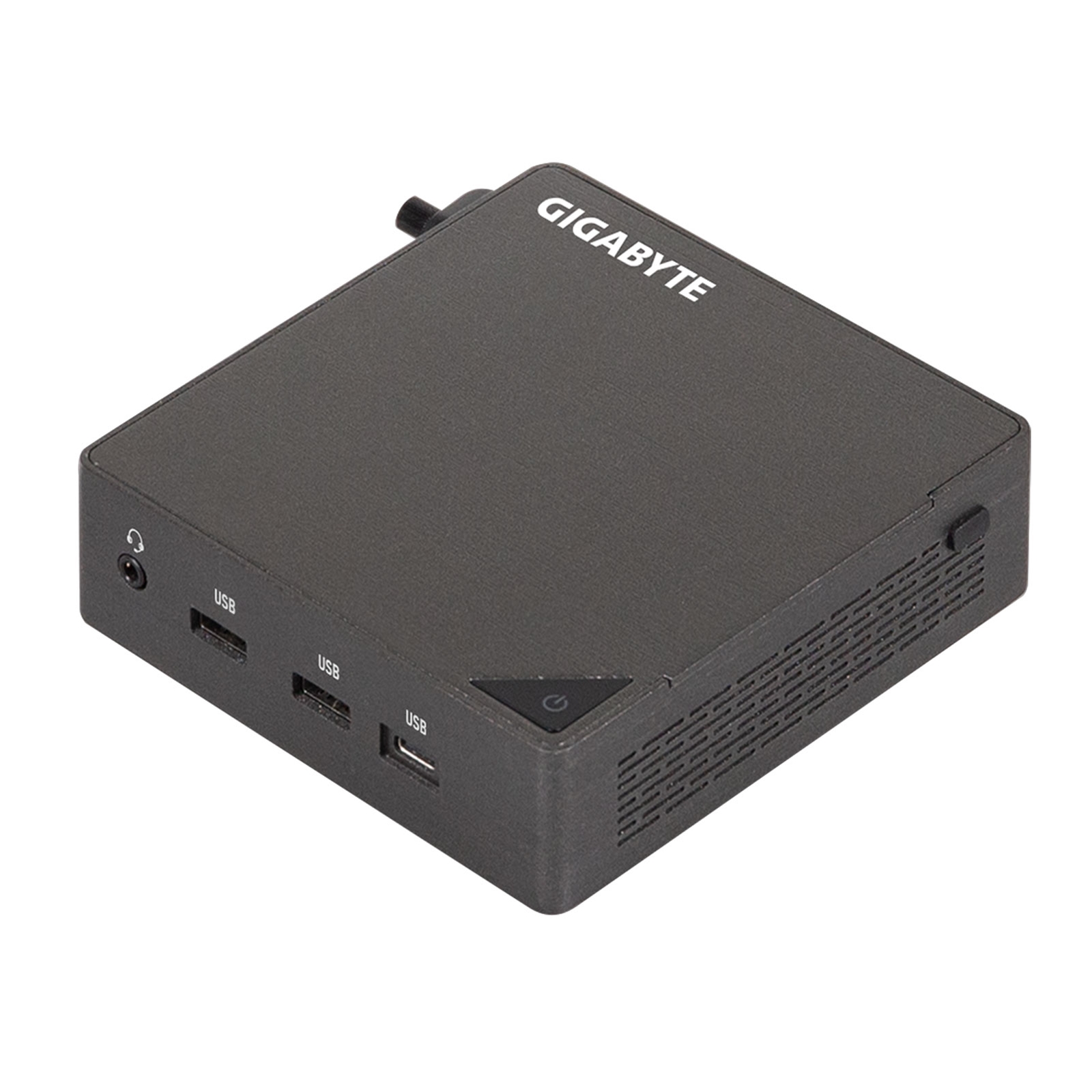

The GIGABYTE BRIX GB-BRU5-225H is a new mini-PC featuring the latest Intel® Core™ Ultra processors (Series 2) and boasts an integrated GPU with a remarkable 20% performance increase over the previous generation. Furthermore, it unleashes exceptional AI performance, delivering up to 83 Tera Operations Per Second (TOPS), making it perfectly suited for demanding generative AI tasks and intensive multitasking scenarios.

Space-saving
Ultra compact PC design. Particularly useful in environments with limited space.

Low power
Energy savings and lower electricity bills.

Portability
Easily carried around for use in different locations.

Low noise
Quieter operation, which is particularly appreciated in quiet working environments.

Suitability for specific purposes
Designed for specific purposes, such as home theater PCs, smart home controllers, data storage servers, etc.

Low maintenance costs
With a simple design and fewer components, it reduces maintenance costs and makes upgrades or repairs easier.

DIMENSIONS
Size
112.6 x 34.4 x 119.4 mm (W x H x D) (Slim chassis design)

Motherboard Size
105 mm x 114.49 mm

PERFORMANCE
CPU
Intel® Core™ Ultra 5 processor 225H, 14C (4P + 8E + 2LPE), 28W

Memory
2 x SO-DIMM DDR5 slots, support up to 5600MHz, Max. 96GB
or
2 x CSO-DIMM DDR5 slots, support up to 6400MHz, Max. 96GB

Graphics
Intel® Arc™ Graphics, 130T GPU
2 x HDMI v2.1, 4096x2160 60Hz (TMDS, CEC)
2 x USB Type-C ALT (DisplayPort v2.1)
(Intel® Arc™ Graphics requires using 2 x SO-DIMM/CSO-DIMM dual channel memory)

Audio
Realtek ALC245

NETWORKING
LAN
2.5GbE LAN (Intel® I226V)

EXPANSION SLOTS
1 x M.2 M Key 2280 slot (PCIe Gen4x4) (PCIe Gen5x4, ready design)
1 x M.2 M Key 2280 slot (PCIe Gen4x4 + SATA)
1 x M.2 E Key 2230 Wi-Fi & BT slot (Wi-Fi 7 RTL8922AE)

I/O PORTS
Front I/O
1 x Headset
2 x USB 3.2 Gen2 Type-A
1 x USB 3.2 Gen2 Type-C (ALT)

Rear I/O
2 x HDMI (TMDS & CEC)
1 x USB4
1 x USB 3.2 Gen2 Type-C (PD IN)
1 x USB 3.2 Gen2 Type-A
1 x USB 2.0 Type-A
1 x RJ45

Left I/O
1 x Kensington Lock Slot

POWER
Input: AC 100-240V
Output: DC 20V/5A, 100W (Type-C PD)

VESA MOUNT
Supports 75 x 75 and 100 x 100 mm

OPERATING SYSTEM
Windows 11 64-bit

ENVIRONMENT
System Operating Temperature: 0°C to +35°C
System Storage Temperature: -20°C to +60°C

NPU
Intel® AI Boost NPU up to 13 TOPs

Manufacturer's Website:

www.gigabyte.com

Warranty:

Gigabyte 3 Year Return to Manufacturer Warranty (Reseller only)

Warranty Length: 3 years

Warranty Type:Return-To-Manufacturer

Warranty Coverage: Gigabyte's 3-year warranty includes a 7-day DOA period covering manufacturing defects and faults. If a product becomes faulty within the first 7 days of purchase, it can be returned to Target under the 7-Day DOA agreement, at which point we will replace it where possible, or offer account credit. If it becomes faulty after the first 7 days the product will need to be returned directly to Gigabyte. Acccount credit will be unavailable outside of the 7-day DOA agreement.

Warranty Instructions: RESELLERS - please raise a Gigabyte RMA. Information needed for claims is Part/Model Number, Serial Number, Fault Description, Place of Purchase (Target Components Limited). Please make sure to comment in the email that you are a trade customer and not an end user. This should speed up Gigabyte processing of your request. Gigabyte will reply by email with a returns number and confirmation of the returns address which is currently:

GBT Tech. Co. Ltd Returns Department Unit 1 Fitzhamon Court Wolverton Mill Milton Keynes MK12 6LB

END USERS - in the first instance, please return it to the reseller you originally purchased it. Target is unable to deal with end-user warranty issues. In the event an end-user is unable to contact the reseller, they must contact Gigabyte directly via Gigabyte Returns.

Warranty Information: https://www.gigabyte.com/uk/Support/Consumer/Warranty

AUDIO
Built-in speaker(s)	No
DESIGN
Chassis type	0.46L sized PC
Product type	Mini PC barebone
GRAPHICS
Graphics card family	Intel
On-board graphics card model	Intel Arc 130T
On-board graphics card	Yes
MEMORY
Maximum internal memory	96 GB
Memory slots type	SO-DIMM
Number of memory slots	2
NETWORKING
Ethernet LAN	Yes
Bluetooth	Yes
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
PACKAGING CONTENT
AC adapter included	Yes
Power cord included	Yes
PORTS & INTERFACES
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	1
VGA (D-Sub) ports quantity	0
HDMI ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
PROCESSOR
Processor model	225H
Processor manufacturer	Intel
Built-in processor	No
Processor generation	Intel Core Ultra (Series 2)
STORAGE
Storage drive sizes supported	M.2
Supported storage drive types	SSD
WEIGHT & DIMENSIONS
Height	34.4 mm
Width	112.6 mm
Depth	119.4 mm

Processor	Intel Core Ultra 5
Processor Cores	14
Memory Type	2x DDR5
Max Memory	96GB
Storage M.2 Slots	3
Storage 2.5 Inch Slots	None
VESA	Not Included

Processor	Intel Core Ultra 5
Processor Cores	14
Memory Type	2x DDR5
Max Memory	96GB
Storage M.2 Slots	3
Storage 2.5 Inch Slots	None
VESA	Not Included

Target Components

Gigabyte BRIX (GB-BRU5-225H) Barebone Kit, Intel Core Ultra 5 225H 14 Core CPU, 2 x DDR5 SO-DIMM Slots, 2 x M.2 2280 Slots, 1 x M.2 E Key 2230 Wi-Fi & BT slot (Wi-Fi 7 RTL8922AE)
