TINY PC, MAXIMUM PRODUCTIVITY
Robust Memory, Ample Storage With Intel Power
Fueled by Intel Core processor, the ThinkCentre Neo 50q Gen 5 Tiny PC manages business reliably. With workload optimization, it delivers peak performance. Moreover, it enhances your creative output and productivity with vast memory and storage — run resource-heavy software while switching between tasks with zero lag.
SAFEGUARD YOUR PC, EMPOWER YOUR BUSINESS
Secured Inside Out
ThinkShield security offers hardware and software solutions with Discrete Trusted Platform Module (dTPM) 2.0 for encryption and RAID 0/1 for quicker recovery and backup. Experience an end-to-end customized security solution and remote manageability for data with ThinkCentre Customization while configuring your device via the Lenovo Device Manager.
CREDIBILITY & COLLABORATION
Sustainability
Our goal is to provide smarter technology that builds a brighter, more sustainable future for our customers, communities, and the planet. That's why we pursue industry-leading labels and certifications that demonstrate our commitment to sustainability in product design. Together, we can build a smarter future for all.
PERFORMANCE
Processor
Intel Core 5 210H, 8C (4P + 4E) / 12T, P-core 2.2 / 4.8GHz, E-core 1.6 / 3.6GHz, 12MB Intel Smart Cache
Graphics
Integrated Intel Graphics
Chipset
Intel SoC Platform
Memory
8GB DDR5-5600 (1 x 8GB SODIMM)
Memory Slots
Two DDR5 SODIMM slots, dual-channel capable
Max Memory
Up to 64GB DDR5-5600
Storage
256GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0
Max Storage Support
Up to two drives, 2 x M.2 SSD, up to 1TB each
RAID Preset
None
Card Reader
No Card Reader
Optical
None
Audio Chip
High Definition (HD) Audio, Realtek ALC256 codec
Speakers
2W x1
Camera
No Camera
Microphone
No Microphone
Power Supply
90W, 89% efficiency adapter
DESIGN
Keyboard
USB Calliope Keyboard, Black, English (UK)
Mouse
USB Calliope Mouse, Black
Optional Bay
None
Expansion Slots
Three M.2 slots: one for WLAN and two for SSD
Case Color
Black
Stand
None
Adapter Cage
None
Toolless Chassis Screw
Toolless Chassis Screw
Mounting
VESA Mount
IO Box
No IO Box
Pen
Not Supported
Form Factor
Tiny (1L)
Dimensions (W x D x H)
179 x 182.9 x 34.5 mm without rubber feet; 179 x 182.9 x 36.5 mm with rubber feet
Weight
Approximately 1.13 kg (2.49 lbs)
CONNECTIVITY
WLAN + Bluetooth
Realtek Wi-Fi 7 RTL8922AE, 802.11be 2x2 + Bluetooth 5.4
WWAN
WWAN Not Supported
Ethernet
Integrated 100/1000M

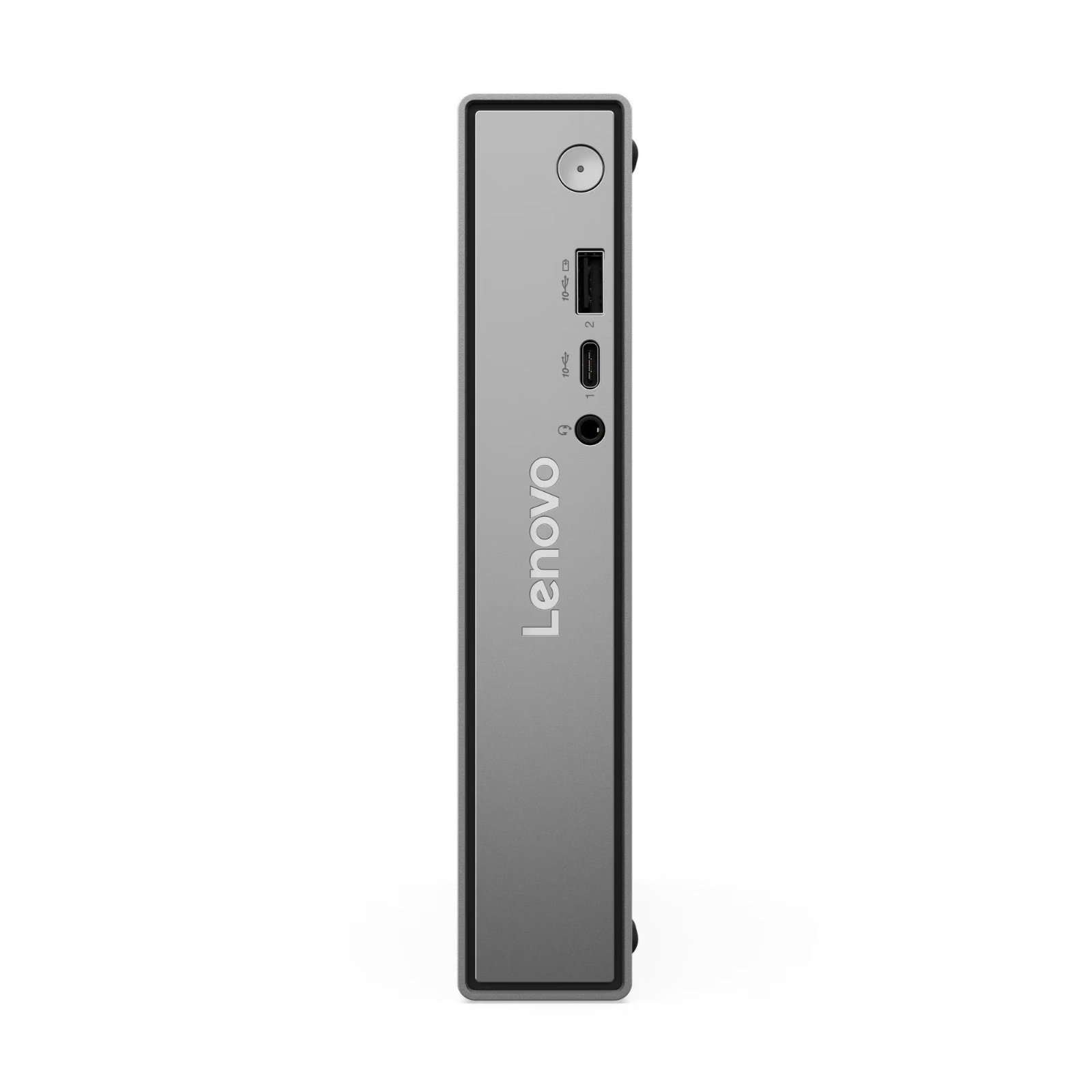

Front Ports
1 x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with data transfer and 5V@3A charging
1 x USB-A (USB 10Gbps / USB 3.2 Gen 2), with Always On and [5V@2.1A](mailto:5V@2.1A) charging
1 x Headphone / microphone combo jack (3.5mm)
Rear Ports
2 x USB-A (USB 2.0), one supports Smart Power On
2 x USB-A (USB 10Gbps / USB 3.2 Gen 2)
1 x HDMI 2.1 TMDS
1 x DisplayPort™ 1.4b
1 x Ethernet (GbE RJ-45)
1 x Power connector
Optional Rear Ports
None
Monitor Cable
None
SECURITY & PRIVACY
Security Chip
Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Fingerprint Reader
No Fingerprint Reader
Physical Locks
Kensington Security Slot, 3 x 7 mm
Chassis Intrusion Switch
Chassis Intrusion Switch
MANAGEABILITY
System Management
Non-vPro
SERVICE
Base Warranty
1-year, Courier or Carry-in
Included Upgrade
1-year Onsite from 1-year Depot WHB (CPN)
CERTIFICATIONS
Green Certifications
ENERGY STAR 9.0
EPEAT Gold Registered
RoHS compliant
TCO Certified, Generation 10
Mil-Spec Test
MIL-STD-810H:2022 military test passed (Solar Radiation 505.7, Salt Fog 509.8, Contamination by fluids 504.3)
SOFTWARE
Operating System
Windows 11 Pro, English
Bundled Software
None
ACCESSORIES
Bundled Accessories
None
Warranty:
1 year on-site warranty 0333 777 3991
DOA period 6 Days - This is from date of invoice. Customers to contact Lenovo to troubleshoot and they will advise process for return or repairs
|
AUDIO
|
| Audio system |
High Definition Audio |
| Built-in microphone |
No |
| Number of speakers |
1 |
| Audio chip |
Realtek ALC256 |
CERTIFICATES
|
| Certification |
ENERGY STAR 9.0
RoHS compliant
TCO Certified, generation 10 |
DESIGN
|
| Chassis type |
mini PC |
| Cable lock slot |
Yes |
| Product colour |
Black |
| Placement supported |
Vertical |
| Volume |
1 L |
| Cable lock slot type |
Kensington |
| Colour name |
Raven black |
DISPLAY
|
| Display included |
No |
ENERGY MANAGEMENT
|
| Power supply |
90 W |
| Power supply input voltage |
100 - 240 V |
| Power supply input frequency |
50/60 Hz |
EXPANSION SLOTS
|
| Number of M.2 (M) slots |
3 |
GRAPHICS
|
| On-board graphics card model |
Intel® Graphics |
| Discrete graphics card model |
Not available |
| On-board graphics card |
Yes |
| Discrete graphics card |
No |
| On-board graphics card family |
Intel® Graphics |
| On-board GPU manufacturer |
Intel |
KEYBOARD
|
| Keyboard connectivity |
Wired |
MEMORY
|
| Internal memory type |
DDR5-SDRAM |
| Memory slots |
2x SO-DIMM |
| Maximum internal memory |
64 GB |
| Memory clock speed |
5600 MHz |
| Memory channels |
Dual-channel |
| Memory layout (slots x size) |
1 x 8 GB |
| Internal memory |
8 GB |
NETWORKING
|
| Wi-Fi standards |
Wi-Fi 7 (802.11be) |
| Bluetooth version |
5.4 |
| Ethernet LAN |
Yes |
| Antenna type |
2x2 |
| Bluetooth |
Yes |
| Wi-Fi |
Yes |
| Ethernet LAN data rates |
100,1000 Mbit/s |
| Ethernet interface type |
Gigabit Ethernet |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| WLAN controller model |
Realtek RTL8922AE |
| WLAN controller manufacturer |
Realtek |
OPERATING SYSTEM/SOFTWARE
|
| Operating system installed |
Windows 11 Pro |
| Operating system language |
English |
OPERATIONAL CONDITIONS
|
| Operating altitude |
0 - 3048 m |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage temperature (T-T) |
-40 - 60 °C |
| Operating temperature (T-T) |
5 - 35 °C |
| Storage relative humidity (H-H) |
10 - 90% |
| Non-operating altitude |
0 - 12192 m |
OTHER FEATURES
|
| Ethernet interface type |
Gigabit Ethernet |
PACKAGING CONTENT
|
| Contrast ratio (typical) |
10 - 90% |
| Display included |
No |
| Mouse included |
Yes |
| Keyboard included |
Yes |
| Mouse connectivity |
Wired |
| Keyboard connectivity |
Wired |
PACKAGING DATA
|
| Package weight |
2.03 kg |
| Package depth |
250 mm |
| Package height |
186 mm |
| Package width |
240 mm |
PERFORMANCE
|
| Motherboard chipset |
Intel SoC |
| Audio system |
High Definition Audio |
| Built-in speaker(s) |
Yes |
| Trusted Platform Module (TPM) |
Yes |
| Fingerprint reader |
No |
| Password protection type |
BIOS, HDD, Supervisor |
| Number of speakers |
1 |
| Trusted Platform Module (TPM) version |
2.0 |
| Product type |
Mini PC |
| Password protection |
Yes |
| Audio chip |
Realtek ALC256 |
PORTS & INTERFACES
|
| USB 2.0 ports quantity |
2 |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
1 |
| HDMI version |
2.1 |
| DisplayPorts quantity |
1 |
| Combo headphone/mic port |
Yes |
| DisplayPort version |
1.4b |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| Thunderbolt 3 ports quantity |
0 |
PROCESSOR
|
| Processor model |
210H |
| Number of processors installed |
1 |
| Processor manufacturer |
Intel |
| Processor family |
Intel Core 5 |
| Processor cores |
8 |
| Processor threads |
12 |
| Processor boost frequency |
4.8 GHz |
| Processor cache |
12 MB |
| Processor cache type |
Smart Cache |
| Efficient cores |
4 |
| Performance cores |
4 |
| Processor base power |
45 W |
| Maximum turbo power |
115 W |
| Efficient-core base frequency |
1.6 GHz |
| Performance-core base frequency |
2.2 GHz |
| Processor generation |
Intel Core (Series 2) |
| Efficient-core Max Turbo Frequency |
3.6 GHz |
| Performance-core Max Turbo Frequency |
4.8 GHz |
PROCESSOR SPECIAL FEATURES
|
| Intel® Smart Cache |
Yes |
STORAGE
|
| Optical drive type |
No |
| Total storage capacity |
256 GB |
| Card reader integrated |
No |
| SSD interface |
PCI Express 4.0 |
| SSD capacity |
256 GB |
| Number of SSDs installed |
1 |
| Storage media |
SSD |
| SSD form factor |
M.2 |
| NVMe |
Yes |
| Self-Encrypting Drive (SED) |
Yes |
| Total SSDs capacity |
256 GB |
| M.2 SSD size |
2280 (22 x 80 mm) |
WEIGHT & DIMENSIONS
|
| Weight |
1.13 kg |
| Package weight |
2.03 kg |
| Height |
36.5 mm |
| Width |
179 mm |
| Depth |
182.9 mm |
| Package depth |
250 mm |
| Package height |
186 mm |
| Package width |
240 mm |
