Target Components

COMPACT SIZE, COLOSSAL POWER

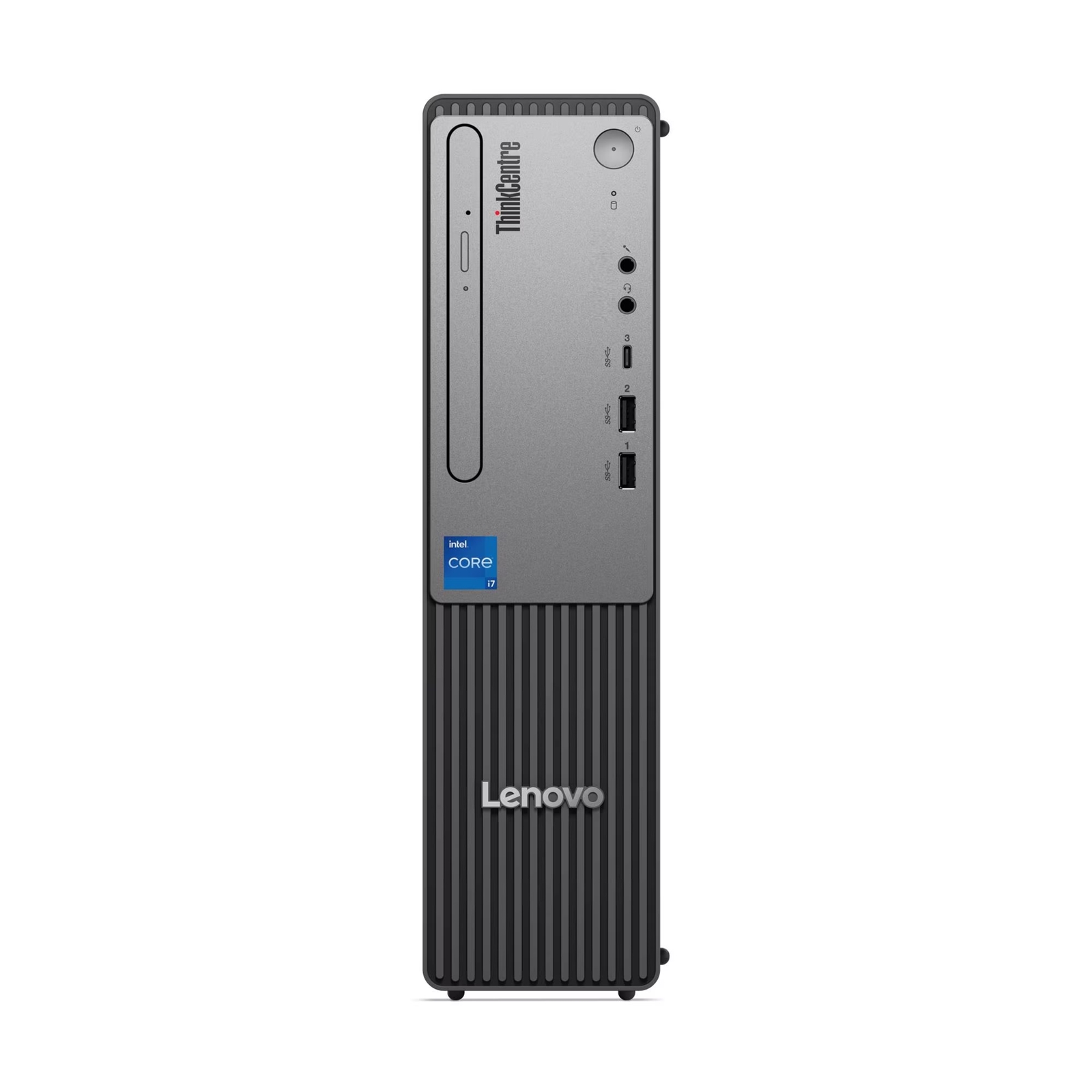

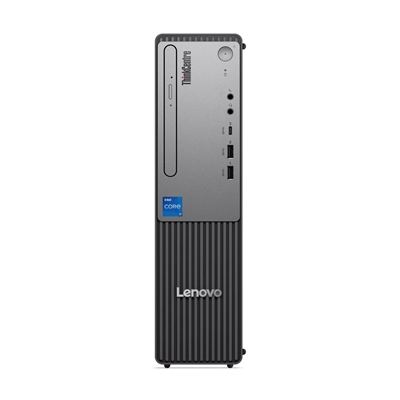

Boost your business performance with the Lenovo ThinkCentre Neo 30s Gen 5 SFF desktop, powered by Intel® Core™ processors. Perfect for a compact workspace, it delivers optimal performance, making demanding tasks feel effortless. Enjoy flexible storage, ample memory, and the power of optional Intel® Arc™ graphics — to keep pace with your ambitions.

COOL, EFFICIENT & SILENT
The ThinkCentre Neo 30s Gen 5 SFF desktop ensures optimal performance without overheating — thanks to its Intelligent Cooling Engine (ICE). Adaptive cooling modes facilitate cool, efficient computing even under heavy workloads. Plus, enjoy a quieter workspace with TUV Ultra Low Noise certification, allowing your team to stay focused without distractions.

BRIDGE DEVICES, BREAK BARRIERS
Stay connected and enjoy multidevice collaboration with this small-form-factor desktop. Whether exchanging medical files or sharing classroom notes — the Smart Connect app enables quick and secure cross-device interaction, seamlessly. Moreover, multitask like a pro with versatile ports, expansion slots, and optional Smart Cable for enhanced productivity.

BUILT-IN SAFEGUARDS YOU CAN TRUST
The ThinkCentre Neo 30s Gen 5 SFF desktop is fortified with ThinkShield's hardware and software security solutions. The firmware Trusted Platform Module (fTPM) provides data encryption while BIOS-level Smart USB protection prevents unauthorized access. Keep physical thefts at bay with Kensington Security Slot™, padlock loop, and an intrusion switch cable.

CREDIBILITY & COLLABORATION
Our goal is to provide smarter technology that builds a brighter, more sustainable future for our customers, communities, and the planet. That's why we pursue industry leading labels and certifications that demonstrate our commitment to sustainability in product design. Together, we can build a smarter future for all.

Tech Specs

Processor
Intel® Core™ i5-13420H, 8C (4P + 4E) / 12T, P-core 2.1 / 4.6GHz, E-core 1.5 / 3.4GHz, 12MB

Graphics
Integrated Intel® UHD Graphics

Chipset
Intel® SoC Platform

Memory
1x 8GB SO-DIMM DDR5-5200

Memory Slots
Two DDR5 SO-DIMM slots, dual-channel capable

Max Memory
Up to 64GB DDR5-5200

Storage
256GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal

Max Storage Support
Up to two drives, 2x M.2 SSD
• M.2 SSD up to 1TB each

Card Reader
No card reader

Optical
None

Audio Chip
High Definition (HD) Audio, Realtek® ALC623-CG codec

Speakers
1Wx1

Power Supply
180W 85%

Keyboard
USB Calliope Keyboard, Black, English (UK)

Mouse
USB Calliope Mouse, Black

Expansion Slots
One PCIe® 4.0 x16, low-profile, length = 155mm, height = 70mm
One PCIe® 3.0 x1, low-profile, length = 155mm, height = 70mm
Three M.2 slots (one for WLAN, two for SSD)

Case Color
Chassis: Black, Bezel: Grey

Stand
None

Pen
Pen Not Supported

Form Factor
SFF (8.2L)

Dimensions (WxDxH)
92.5 x 291.7 x 339.5 mm (3.6 x 11.5 x 13.4 inches)

Weight
Around 4.63 kg (10.2 lbs)

WLAN + Bluetooth
Intel® Wi-Fi® 6 AX203, 802.11ax 2x2 + BT5.2

WWAN
Non-WWAN

Ethernet
Integrated 100/1000M

Front Ports
1x USB-C® (USB 5Gbps / USB 3.2 Gen 1), with 15W charging
2x USB-A (USB 5Gbps / USB 3.2 Gen 1)
1x headphone / microphone combo jack (3.5mm)
1x microphone (3.5mm)

Rear Ports
2x USB-A (Hi-Speed USB / USB 2.0)
2x USB-A (USB 5Gbps / USB 3.2 Gen 1), one supports Smart Power On
1x HDMI® 2.1 TMDS
1x VGA
1x Ethernet (RJ-45)
1x line-out (3.5mm)

Optional Rear Ports (configured)
None

Monitor Cable
None

Security Chip
Firmware TPM 2.0 integrated in SoC

Physical Locks
Kensington® Security Slot™
Padlock Loop

Smart Cable Clip
None

Chassis Intrusion Switch
None

Additional Security
None

Base Warranty
1-year, Courier or Carry-in

Included Upgrade
1Y Onsite from 1Y Depot WHB (CPN)

Operating System
Windows® 11 Pro, English

Bundled Software
None

Bundled Accessories
Slim ODD Bracket Kit
