Target Components

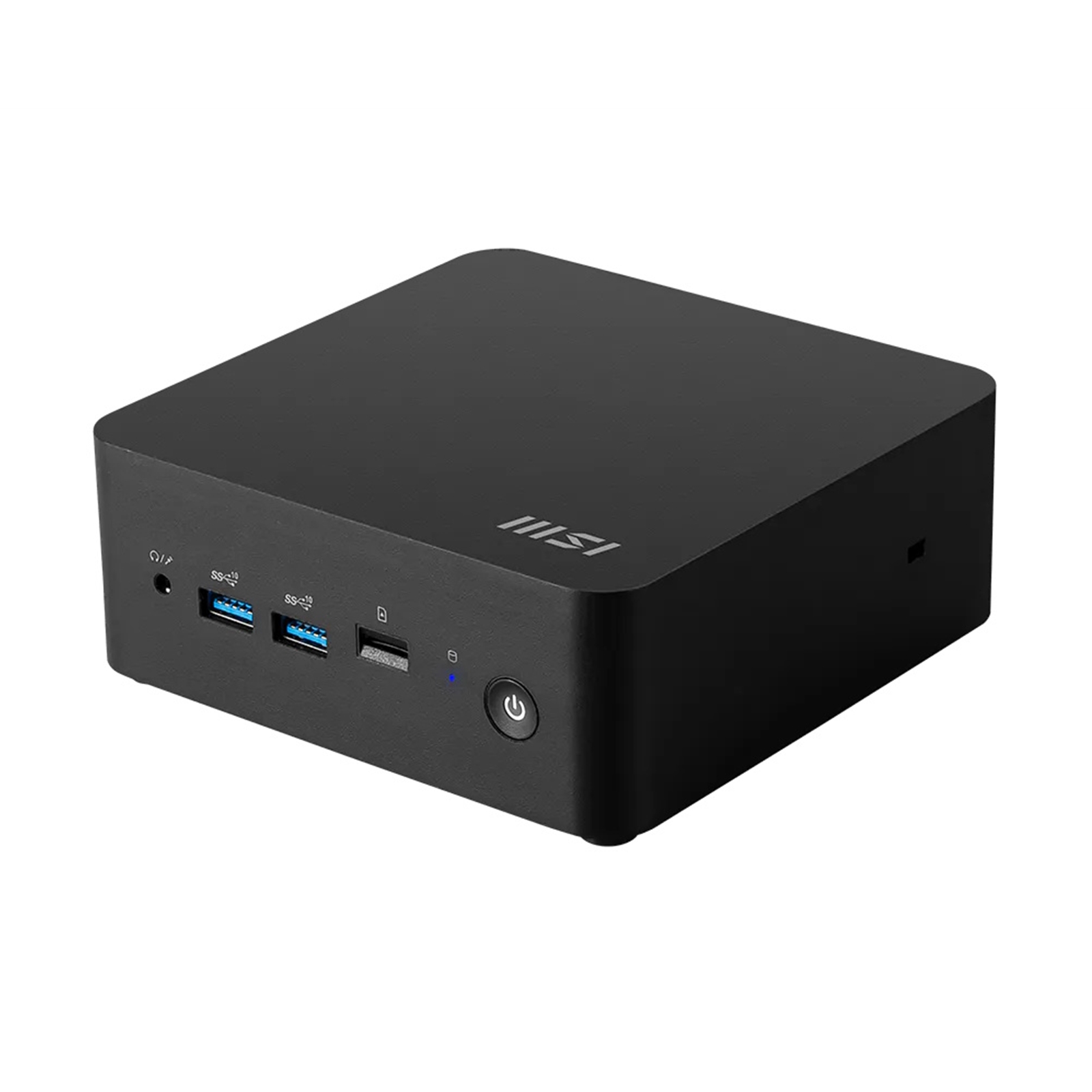

MSI Cubi NUC 1M Intel Core 5 120U, 16GB DDR5 ADATA RAM, 1TB ADATA NVMe Storage, Intel Graphics, Dual ThunderBolt 4, Dual HDMI, Dual LAN, WiFi 6E, BT 5.3 with VESA Mount

The Cubi NUC Series blends business-centric design with environmental responsibility - an embodiment of MSI's dedication to sustainability. Our commitment extends to incorporating sustainable materials in both our product design and packaging, protecting the earth through our actions. By utilizing sustainable materials such as PCR plastics, recycled pulp from FSC™-certified forests, more active management of substances used in manufacturing processes, and the continued use of renewable energy in production processes, we ensure the products' durability and a commitment to a greener world.

The Cubi NUC Series embodies sustainable value and heightened productivity.

Dimension
135.6 x 132.5 x 50.10 (mm)

CPU
Intel Core 5 Processor 120U
Performance Cores: 2 Cores, 4 Threads, 1.4 GHz Base, 5.0 GHz Turbo
Efficient Cores: 8 Cores, 8 Threads, 0.9 GHz Base, 3.8 GHz Turbo

Memory
1 x ADATA 16GB SODIMM DDR5
ADATA AD5S480016G-S 16GB (1x 16GB) SODIMM System Memory, 24800MTs, DDR5, CL40
2 Lanes (1 occupied)
Max. 64GB

Storage
Adata Legend 860 (SLEG-860-1000GCS) 1TB NVMe SSD, PCIe Gen4, M.2 Interface, 2280, Read 5000 MB/s, Write 3000 MB/s
Form Factor
M.2 2280
NAND Flash
3D NAND
Interface
PCIe Gen4 x4
Sequential Read (Max)
Up to 6,000MB/s
Sequential Write (Max)
Up to 5,000MB/s
Operating Temperature
0°C - 70°C
Storage Temperature
-40°C - 85°C
Shock Resistance
1,500G/0.5ms
MTBF
2,000,000 hours

LAN
2x Intel I226-V

Wifi Card
INTEL Wi-Fi 6E AX211.NGWG.NV
(Wi-Fi 6E - 802.11ax 2x2+BT)

Graphics
GPU Name: Intel Graphics
Graphics Max Dynamic Frequency: 1.3 GHz
Graphics Output: eDP 1.4b, DP 1.4a, HDMI 2.1
Execution Units: 80
Max Resolution (HDMI): 4096 x 2304 @ 60Hz
Max Resolution (DP)? :7680 x 4320 @ 60Hz
Max Resolution (eDP - Integrated Flat Panel): 4096 x 2304 @ 120Hz
DirectX Support: 12.1
OpenGL Support: 4.6
OpenCL Support: 3.0
H.264 Hardware Encode/Decode: Yes
H.265 (HEVC) Hardware Encode/Decode: Yes
AV1 Encode/Decode: Decode Only
Intel Quick Sync Video: 4

Audio
HD audio

Front I/O
1x Mic-in / Headphone-out Combo
2x USB 10Gbps Type A
1x Micro-SD card Reader

Rear I/O
2x USB 10Gbps Type A
1x HDMI out (supports 4K @60Hz as specified in HDMI 2.1)
2x RJ45 LAN (2.5G)
1x HDMI out (supports 4K @60Hz as specified in HDMI 2.1)
which supports the MSI Power Link
1x DC Jack
1x Thunderbolt 4 (DP 1.4 alt-mode up to 4K@60Hz / PD-out
15W)
1x Thunderbolt 4 (DP 1.4 alt-mode up to 4K@60Hz / PD-out
15W / PD-in up to 100W)

Side
1x External Power Switch Slot
1x Kensington Lock Slot

Power Supply
120W External (Provided)

VESA
VESA support
100 x 100 mm

Support OS
Microsoft Windows compatible (not provided)

Environment
System Environment Operating Temperature: 0°C to +35°C
System Storage Temperature: -20°C to +60°C
