AMD Ryzen 3 4300G AM4 Processor
Take your computing experience to the next level with the AMD Ryzen 3 4300G. With Socket AM4 compatibility, this processor uses the Zen 2 (Renoir) architecture and features four cores that can execute up to eight threads thanks to AMD Simultaneous Multithreading (SMT). The processor has a default operating frequency of 3.8 GHz, which can be boosted up to 4 GHz depending on the workload, and comes with 4MB of L3 cache to enhance performance.
SMOOTH AND RESPONSIVE
The Ryzen 3 4300G is built on a 7 nm production node, with 9,800 million transistors, and its unlocked multiplier simplifies the overclocking process. The processor consumes a typical amount of power for a modern PC, with a TDP of 65 W, and supports DDR4 memory with a dual-channel interface at a maximum supported speed of 3200 MHz. The Ryzen 3 4300G uses a PCI-Express Gen 3 connection to communicate with other components in the system, and features the Radeon Vega 6 integrated graphics solution, ensuring smooth and responsive visuals. Whether you're gaming, streaming, or working on complex projects, the AMD Ryzen 3 4300G is a reliable and efficient processor that can handle it all.
MAXIMUM COOLING, TINY FOOTPRINT
Install up to six 120mm or four 140mm cooling fans, and support radiators up to 280mm on top and in front for high performance cooling.
Product Description

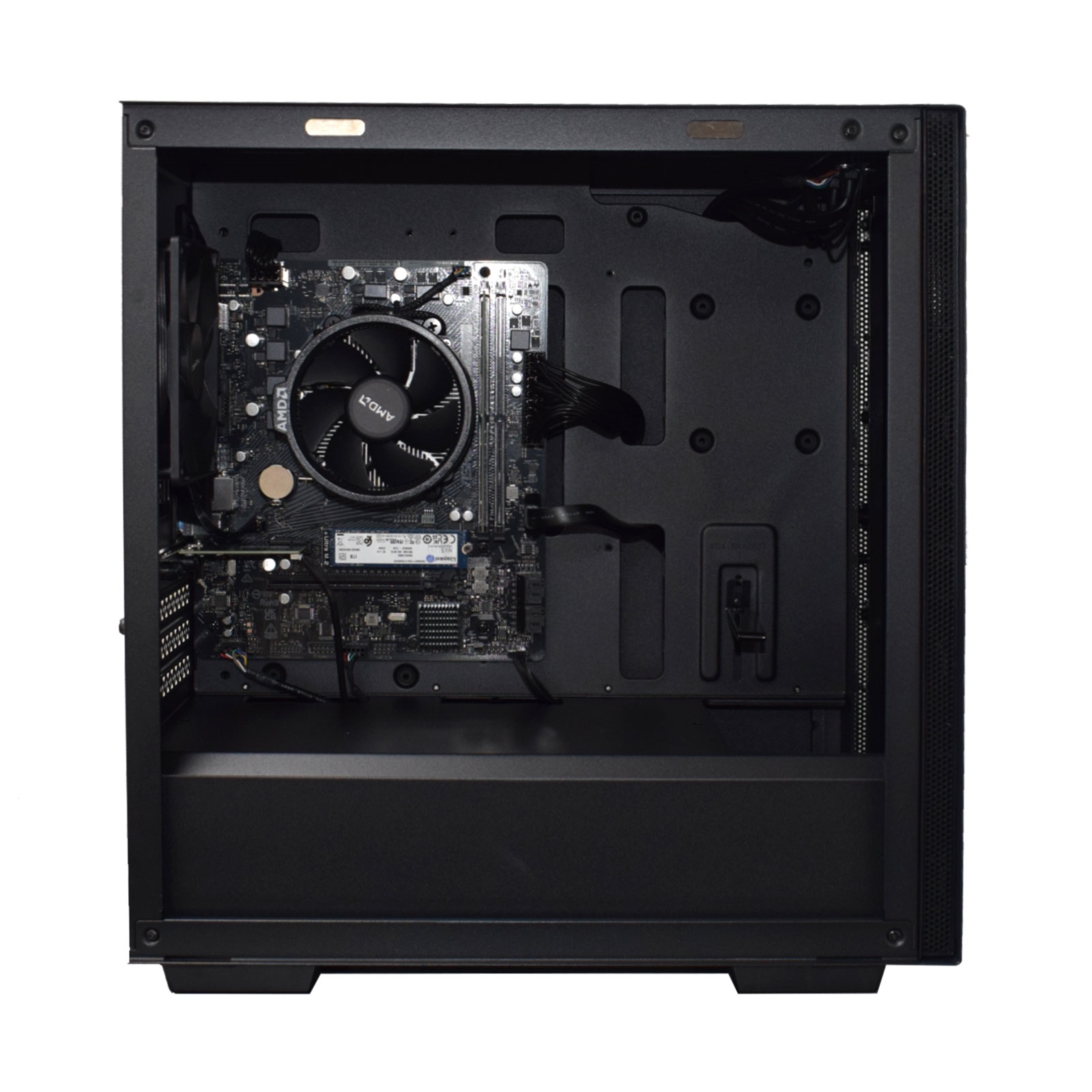

AMD Ryzen 3 4300G Quad Core 8 Thread 3.80GHz (4.00GHz Boost), 8GB DDR4 RAM, 1TB Kingston NVMe M.2, WiFi 6 + BT, Deep Cool Micro Chassis - Pre-Built PC
Processor
AMD Ryzen 3 4300G 4 Core AM4 Processor, 8 Threads, 3.8GHz up to 4.0GHz Boost, 6MB Cache, 65W, with Wraith Stealth Cooler, Radeon Vega 6 Graphics
Processor Cores
4
Processor Threads
8
Core Clock Speed
3.80GHz
Core Boost Speed
4.00GHz
Memory
PNY Performance MD8GSD43200-SI 8GB (1x 8GB) DIMM System Memory, 3200MHz, DDR4, CL22
Memory Configuration
1 x 8GB
2 Lanes (1 occupied)
SSD Drive
Kingston NV3 (SNV3S/1000G) 1TB NVMe SSD, M.2 Interface, PCIe Gen4, 2280, Read 6000 MB/s, Write 4000 MB/s
Format
NVMe M.2
Max Read/Write Speeds
Read: Up to 6000MB/S
Write: Up to 4000MB/S
Hard Drive
N/A
Optical Drive
N/A
Graphics
Graphics Model: Radeon Graphics
Graphics Core Count: 6
Graphics Frequency: 1700 MHz
Graphics Card I/O
N/A
Operating System
N/A
Card Reader
N/A
Networking
Mercusys MA30E AC1200 WiFi Bluetooth PCIe Adapter
Strong Dual Band Wi-Fi Speed — Speeds up to 867 Mbps (5 GHz) + 300 Mbps (2.4 GHz)
Wider Signal Coverage — Two high-performance antennas
Bluetooth 5.0 — The Bluetooth 5.0 technology achieves faster speeds and broader coverage
MU-MIMO — Simultaneously serve several devices with no more latency or bandwidth congestion
Improved Security — The latest security enhancement, WPA3, provides enhanced protection in personal password safety
Backward Compatibility — Full support for 802.11ac/a/b/g/n standards
Power Supply
DeepCool PF400 80 PLUS Standard Power Supply 400W, Silent Hydraulic Bearing Fan, Reliable Protection, Flat Black Cables, 85% Efficiency
Main Power Connector 24 (20+4) Pin x 1
EPS 12V Connector 8 (4+4) Pin x 1
PCI-E (6+2) Pin x 2
SATA x 5
4 Pin Peripheral x 1
Motherboard
ASRock A520M-HVS Super Alloy AMD AM4 Socket Motherboard, Micro-ATX, 2x DDR4 Slots, 1x M.2 Socket, GbE LAN
Expansion Slot
1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)
1 x PCI Express 3.0 x1 Slot
Storage
4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
Rear I/O
1 x PS/2 Mouse/Keyboard Port
1 x D-Sub Port
1 x HDMI Port
2 x USB 2.0 Ports (Supports ESD Protection)
4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone
Internal I/O
1 x SPI TPM Header
1 x COM Port Header
1 x Chassis Intrusion and Speaker Header
1 x CPU Fan Connector (4-pin)
2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x 24 pin ATX Power Connector
1 x 4 pin 12V Power Connector
1 x Front Panel Audio Connector
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

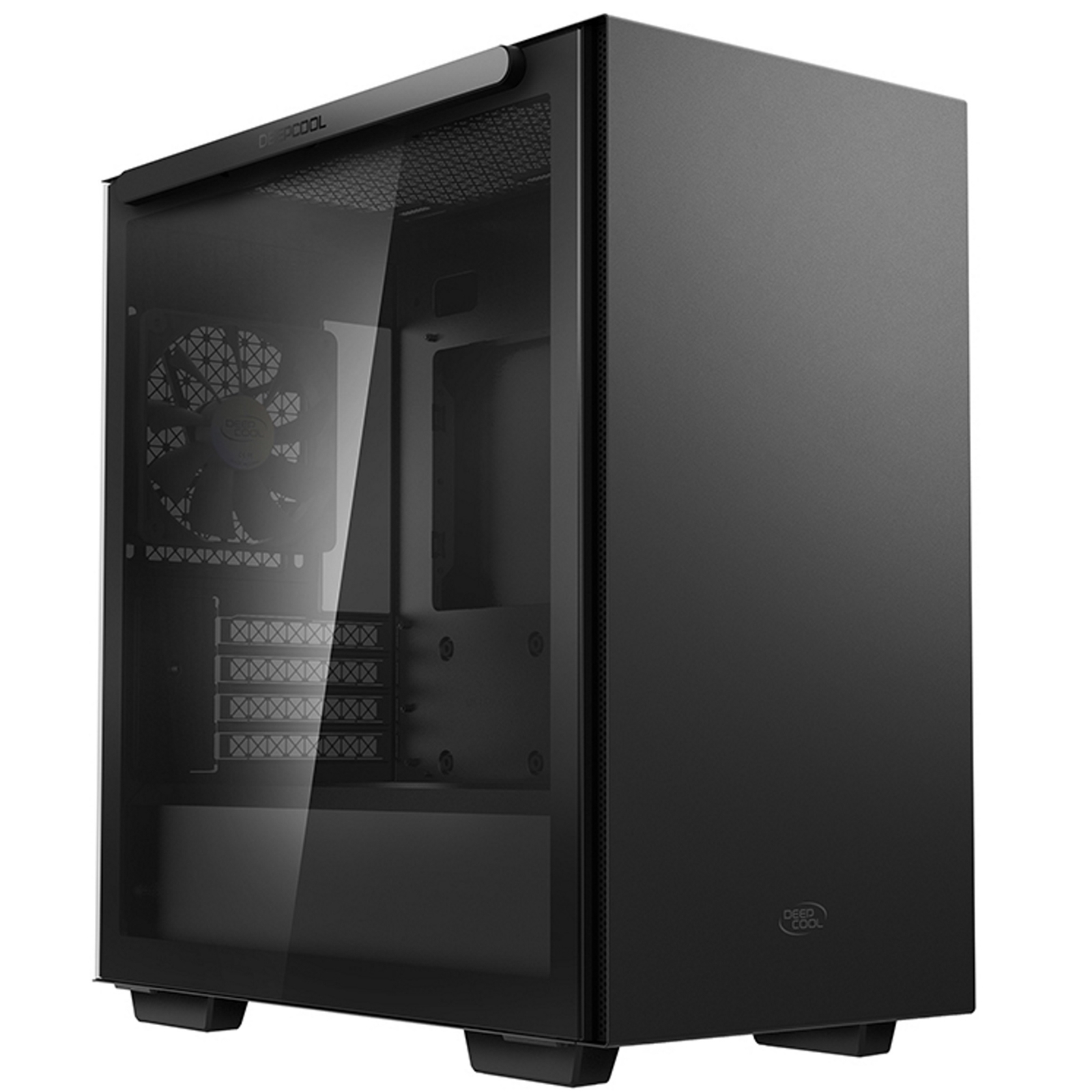

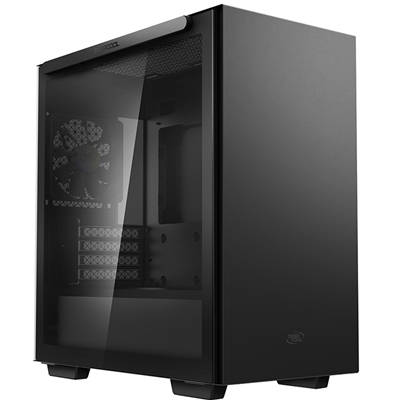

Chassis
DeepCool MACUBE 110 Case, Home & Business, Black, Micro Tower, 2 x USB 3.0, Tempered Glass Side Window Panel, Micro ATX
Drive Bays
Internal 3.5": 2
Internal 2.5": 2
IO Ports
2 x USB 3.0
1 x Audio
Cooling
Front: 3 x 120mm / 2 x 140mm
Top: 2 x 120mm / 2 x 140mm
Rear: 1 x 120mm DC fan (Pre-installed)
Dimensions
400mm x 225mm x 431mm
Package Weight
6.90 kg
Warranty
3 Years; 1st year parts including collect and return and a further 2 years labour warranty (UK mainland only)
