Target Components

Main Features:
Designed for alarm and door-entry systems from brands like Paxton and Axis
Secure, wired-only connection
Tiny, 1-litre unit fits on the back of a monitor
Powerful 14th Gen Intel Core i5 4.70GHz processor
Superfast 500GB Kingston Technology NVMe SSD with 16GB DDR4 RAM
HDMI, DisplayPort, USB-A,
Wi-Fi, Gigabit Ethernet

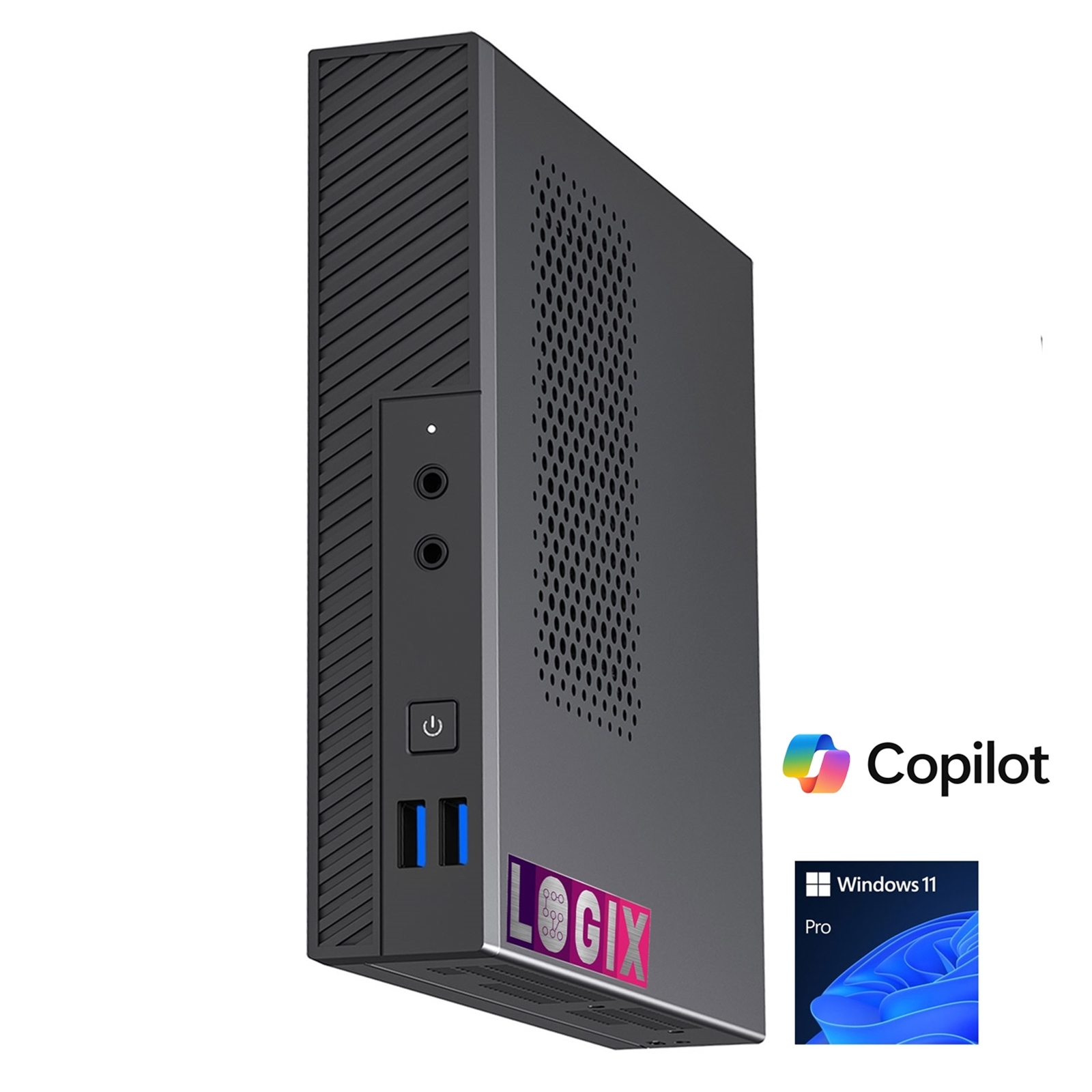

Do not be fooled by its tiny size, the LOGIX LT-548P is a powerful 10-core business PC designed to discreetly fit to the back of a monitor. Whether you're working on large reports, surfing the Internet, presenting or participating in online meetings, or a bit of everything, its powerful 14th Gen Intel Core i5 processor, cutting edge graphics, fast memory and ample storage will make it all a breeze.

The LOGIX LT-548P has both wired and wi-fi Internet connections, making it extremely secure and ideal for running alarm and door-entry systems from brands like Paxton and Axis. It's a true workhorse, but it's been hand-built in the UK with all the care and attention of a custom-made PC, just without the flashing lights or even flashier pricetag.

It's built to be used all-day, reliably and, thanks to its tiny size, attaches discreetly to a monitor or monitor-arm, freeing up physical and mental space and allowing you to concentrate on the task(s) at hand.

Microsoft Windows 11 Pro has been installed and updated, ready-to-go. It's bloatware free, no additional software is installed, so there's no spending hours removing programs and files you don't need that slow your PC down. We've even included a Logitech MK120 keyboard and optical mouse so you can get going straight away.

Built to the highest of standards and featuring world renown brands, this PC is futureproofed and designed to last, which is why it comes with a full 3-year warranty. The World's most popular operating system, Windows 11 Pro, is preinstalled – you just need to turn it on and follow the instructions in the Quick Start Guide – Reliability and security built in.

Specification:

Operating System: Windows 11 Pro
Processor: Intel i5 14th Gen 10 Core
Memory (RAM): Kingston Technologies 16GB DDR4
Storage:Kingston Technologies 500GB NVMe M.2 SSD
Graphics: Intel UHD Graphics 730 with 4K & DirectX support
Sound: 7.1 Surround Sound
Case: Small Form 1 Liter VESA Mountable
Connections:
1 x DisplayPort
1 x HDMI
2 x USB-A 3.0
2 x USB-A 2.0
2 x USB-A 3.2
1 x Ethernet
1 x Mic In/ Headphone Out
Networking:
Wired: 1Gb Realtek Ethernet
Wi-Fi + BT
Peripherals: Logitech MK120 Wired Keyboard (with waterproof silicone cover) & Mouse
Warranty: 3 years - parts and collection included

Product Description
Small Form Factor - Intel i5 12400 6 Core 12 Threads 2.50GHz (4.40GHz Boost), 8GB RAM, 250GB NVMe M.2, Windows 11 Pro - 1L VESA Mountable Small Foot Print for Home or Office Use - Pre-Built PC

Processor
Intel Core i5 14400 10 Core Processor 16 Threads, 3.5GHz up to 4.7GHz Turbo Raptor Lake Refresh Socket LGA 1700 20MB Cache, 65W, Maximum Turbo Power 148W, Intel UHD 730 Graphics

Processor Cores
10

Processor Threads
16

Core Clock Speed
3.50GHz

Core Boost Speed
4.70GHz

Memory
Kingston KVR32S22S8/16 ValueRAM 16GB DDR4 3200MHz Non-ECC SODIMM Memory

Memory Configuration
1 x 16GB
2 Lanes (1 occupied)

SSD Drive
Kingston NV3 (SNV3S/500G) 500GB NVMe SSD, M.2 Interface, PCIe Gen4, 2280, Read 6000 MB/s, Write 2200 MB/s

Format
NVMe M.2

Max Read/Write Speeds
Sequential Read : 6000MB/s
Sequential Write : 2200 MB/s

Hard Drive
N/A

Optical Drive
N/A

Graphics
Intel UHD Graphics 730
Graphics Base Frequency
300 MHz
Graphics Max Dynamic Frequency
1.40 GHz
Execution Units
24
Max Resolution (HDMI)
4096 x 2160 @ 60Hz
Max Resolution (DP)
7680 x 4320 @ 60Hz

Graphics Card I/O
N/A

Operating System
Microsoft Windows 11 Professional 64bit English OEI DVD Operating Software

Card Reader
N/A

Networking
1Gb Realtek Ethernet
ASUS LANGuard
Wi-Fi 5 Single Antenna
BT

Power Supply
External 120w (provided)

Motherboard
Asus PRO H610T D4-CSM - Corporate Stable Model, Intel H610, 1700, Thin Mini ITX, 2 DDR4 SO-DIMM, HDMI, DP, LVDS

Storage
2 x SATA III
1 x M.2 (2260/2280) - SATA & PCIe

Rear I/O
2 x USB 3.2 Gen2
2 x USB 2.0
1 x DisplayPort
1 x HDMI
1 x Realtek 1Gb Ethernet
2 x Audio jacks
1 x DC Power (Support 19V)

Internal I/O
1 x 4-pin CPU Fan
1 x 4-pin Chassis Fan
1 x 2-pin +19V
1 x SATA power
1 x M.2 (Key M)
2 x SATA 6Gb/s
1 x USB 3.2 Gen1
2 x USB 2.0
1 x USB 2.0
1 x 2-pin internal DC power
1 x Stereo speaker
1 x DMIC 1 x Backlight inverter voltage selection
1 x FPD brightness
1 x Panel voltage selection
1 x Panel off
1 x Clear CMOS
1 x Chassis Intrude
1 x COM Port
1 x COM debug
1 x Front Panel Audio
1 x LVDS 1 x M.2 slot (Key E)
1 x Speaker
1 x SPI TPM (14-1pin)
1 x 10-1 pin System Panel

Chassis
LT100 1 Litre USB3.0 Ultra-Thin Mini-ITX Computer Case

IO Ports
2 x USB 3.0
1 x HD Audio
1 x Microphone

Dimensions
182mm x 36mm x 186mm (W x H x D)

Package Weight
2.55 kg

Warranty
3 Years collect & Return UK Main Land
