GENERAL
Model

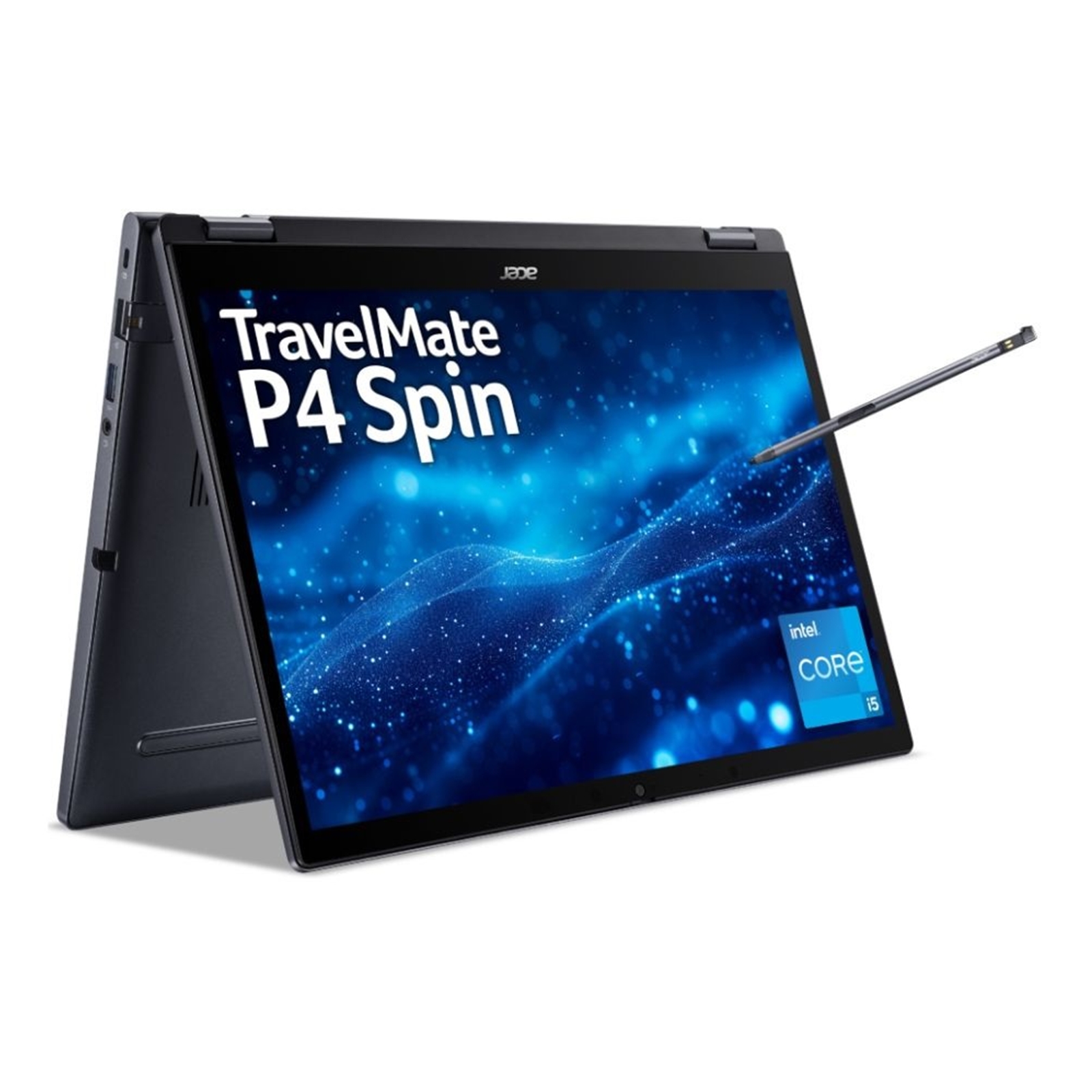

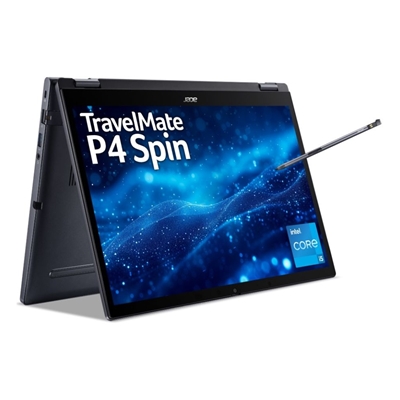

Acer TravelMate P4 Spin 14 TMP414RN-53 (NX.B22EK.00B)
Product Type
2-in-1 Convertible Notebook (Flip Design)
Colour
Slate Blue
OPERATING SYSTEM
Operating System
Windows 11 Pro Education
PERFORMANCE
Processor Manufacturer
Intel®
Processor Family
Intel® Core™ i3 (13th Gen)
Processor
Intel® Core™ i3-1315U
Processor Cores
6 (2 Performance + 4 Efficient)
Processor Threads
8
Processor Base Frequency
1.2 GHz
Processor Boost Frequency
Up to 4.5 GHz
Processor Cache
10 MB
Graphics
Intel® UHD Graphics
Memory
8GB DDR4 SDRAM (1 x 8GB)
Memory Slots
2 x SO-DIMM
Max Memory
64GB
Storage
256GB PCIe® 4.0 NVMe™ SSD
Storage Type
SSD
Card Reader
microSD Card Reader
Optical Drive
None
DESIGN
Display
14.0" WUXGA (1920 x 1200) IPS Touchscreen, 16:10 aspect ratio, Anti-glare, ComfyView, Corning® Gorilla® Glass 3
Touchscreen
Yes, Multi-touch
Refresh Rate
60Hz
Brightness
200 nits
Colour Gamut
45% NTSC
Input Device
Digitizer with Acer Active Stylus Pen
Keyboard
Backlit UK Keyboard
Touchpad
Precision Touchpad with Corning® Gorilla® Glass surface
Camera
FHD Webcam (1920 x 1080) with IR Camera, Windows Hello and Privacy Shutter
Audio
Stereo Speakers
Dual Microphones
DTS:X® Ultra
Dimensions (W x D x H)
31.9 x 22.9 x 1.89 cm
Weight
1.48 kg
Case Material
Anodised Aluminium
BATTERY & POWER
Battery
3-cell Lithium-Ion, 56Wh
Power Adapter
65W USB-C Power Adapter
CONNECTIVITY
Wireless
Intel® Wi-Fi 6E AX211 (2x2)
Bluetooth
Bluetooth® 5.3
Ethernet
Gigabit Ethernet (RJ-45)
Ports
2 x USB-C® / Thunderbolt™ 4 with Power Delivery and DisplayPort Alt Mode
2 x USB 3.2 Gen 1 Type-A
1 x HDMI
1 x RJ-45 Ethernet
1 x Headphone / Microphone Combo Jack
1 x microSD Card Reader
SECURITY
Security Chip
Discrete TPM 2.0
Fingerprint Reader
Yes
Smart Card Reader
Yes
Other Security
Windows Hello IR Camera
Privacy Shutter
Kensington Security Slot
Administrator Password
System Password
SOFTWARE
Bundled Software
Acer ProShield Plus Security Manager
CERTIFICATIONS
Green Certifications
ENERGY STAR®
TCO Certified Notebooks 9
TCO Certified Generation 10
Mil-Spec Test
MIL-STD-810H military-grade tested
Sustainability
34.5% Post-Consumer Recycled Plastic
100% Recyclable Packaging
ACCESSORIES
Bundled Accessories
Acer Active Stylus
USB-C Power Adapter
WARRANTY
Manufacturer Warranty
1-Year Carry-in Warranty
Warranty:
1 Year Manufacturer Warranty. Tel: 0371 760 1000.
|
AUDIO
|
| Audio system |
DTS Audio Processing |
| Built-in microphone |
Yes |
| Number of built-in speakers |
4 |
| Number of microphones |
2 |
BATTERY
|
| Battery technology |
Lithium-Ion (Li-Ion) |
| Battery capacity (Watt-hours) |
56 Wh |
CAMERA
|
| Video capturing speed |
60 fps |
| Front camera |
Yes |
| Front camera resolution |
1920 x 1080 pixels |
| Privacy camera |
Yes |
| Privacy type |
Privacy shutter |
| Front camera HD type |
Full HD |
| Infrared (IR) camera |
Yes |
CERTIFICATES
|
| Wi-Fi certified |
Yes |
DESIGN
|
| Form factor |
Convertible (Folder) |
| Product colour |
Black |
| Product type |
Hybrid (2-in-1) |
| Built-in stylus pen storage |
Yes |
| Stylus pen support |
Yes |
DISPLAY
|
| Display diagonal |
35.6 cm (14") |
| Display resolution |
1920 x 1200 pixels |
| Touchscreen |
Yes |
| LED backlight |
Yes |
| Native aspect ratio |
16:10 |
| HD type |
WUXGA |
| Panel type |
IPS |
| Display technology marketing name |
ComfyView |
ENERGY MANAGEMENT
|
| AC adapter power |
65 W |
| DC-in jack |
Yes |
| USB Type-C charging port |
Yes |
GRAPHICS
|
| Discrete graphics card model |
Not available |
| On-board graphics card |
Yes |
| Discrete graphics card |
No |
| On-board graphics card family |
Intel Iris Xe Graphics |
| On-board GPU manufacturer |
Intel |
KEYBOARD
|
| Pointing device |
Clickpad + Stylus |
| Numeric keypad |
No |
| Keyboard backlit |
Yes |
MEMORY
|
| Internal memory type |
DDR4-SDRAM |
| Maximum internal memory |
64 GB |
| Memory channels |
Dual-channel |
| Internal memory |
8 GB |
NETWORKING
|
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Bluetooth version |
5.1 |
| Ethernet LAN |
Yes |
| Antenna type |
2x2 |
| Bluetooth |
Yes |
| Ethernet LAN data rates |
100,1000,10000,100000 Mbit/s |
| Wi-Fi band |
Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| Mobile network connection |
No |
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| WLAN controller model |
Intel Wi-Fi 6E AX211 |
| MIMO |
Yes |
| MIMO type |
Multi User MIMO |
| WLAN controller manufacturer |
Intel |
OPERATING SYSTEM/SOFTWARE
|
| Operating system installed |
Windows 11 Pro Education |
OTHER FEATURES
|
| AC adapter included |
Yes |
PACKAGING CONTENT
|
| AC adapter included |
Yes |
| Stylus pen |
Yes |
PORTS & INTERFACES
|
| USB 2.0 ports quantity |
0 |
| Ethernet LAN (RJ-45) ports |
1 |
| SmartCard slot |
Yes |
| HDMI ports quantity |
1 |
| HDMI version |
2.1 |
| Combo headphone/mic port |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
2 |
| Thunderbolt 4 ports quantity |
2 |
| Intel® Thunderbolt 4 |
Yes |
PROCESSOR
|
| Processor model |
i3-1315U |
| Processor manufacturer |
Intel |
| Processor family |
Intel® Core™ i3 |
| Processor cores |
6 |
| Processor threads |
8 |
| Processor boost frequency |
4.5 GHz |
| Processor cache |
10 MB |
| Processor frequency |
3.3 GHz |
| Processor cache type |
Smart Cache |
| Efficient cores |
4 |
| Performance cores |
2 |
| Processor generation |
Intel Core i3-13xxx |
SECURITY
|
| Cable lock slot |
Yes |
| Trusted Platform Module (TPM) |
Yes |
| Fingerprint reader |
Yes |
| Cable lock slot type |
Kensington |
| Smart card reader |
Yes |
STORAGE
|
| Compatible memory cards |
MicroSD (TransFlash) |
| Optical drive type |
No |
| Total storage capacity |
256 GB |
| Card reader integrated |
Yes |
| SSD interface |
PCI Express 4.0 |
| SSD capacity |
256 GB |
| Number of SSDs installed |
1 |
| Storage media |
SSD |
| NVMe |
Yes |
SUSTAINABILITY
|
| Sustainability certificates |
ENERGY STAR |
WEIGHT & DIMENSIONS
|
| Weight |
1.49 kg |
| Height |
18.9 mm |
| Width |
319 mm |
| Depth |
229 mm |
