Target Components

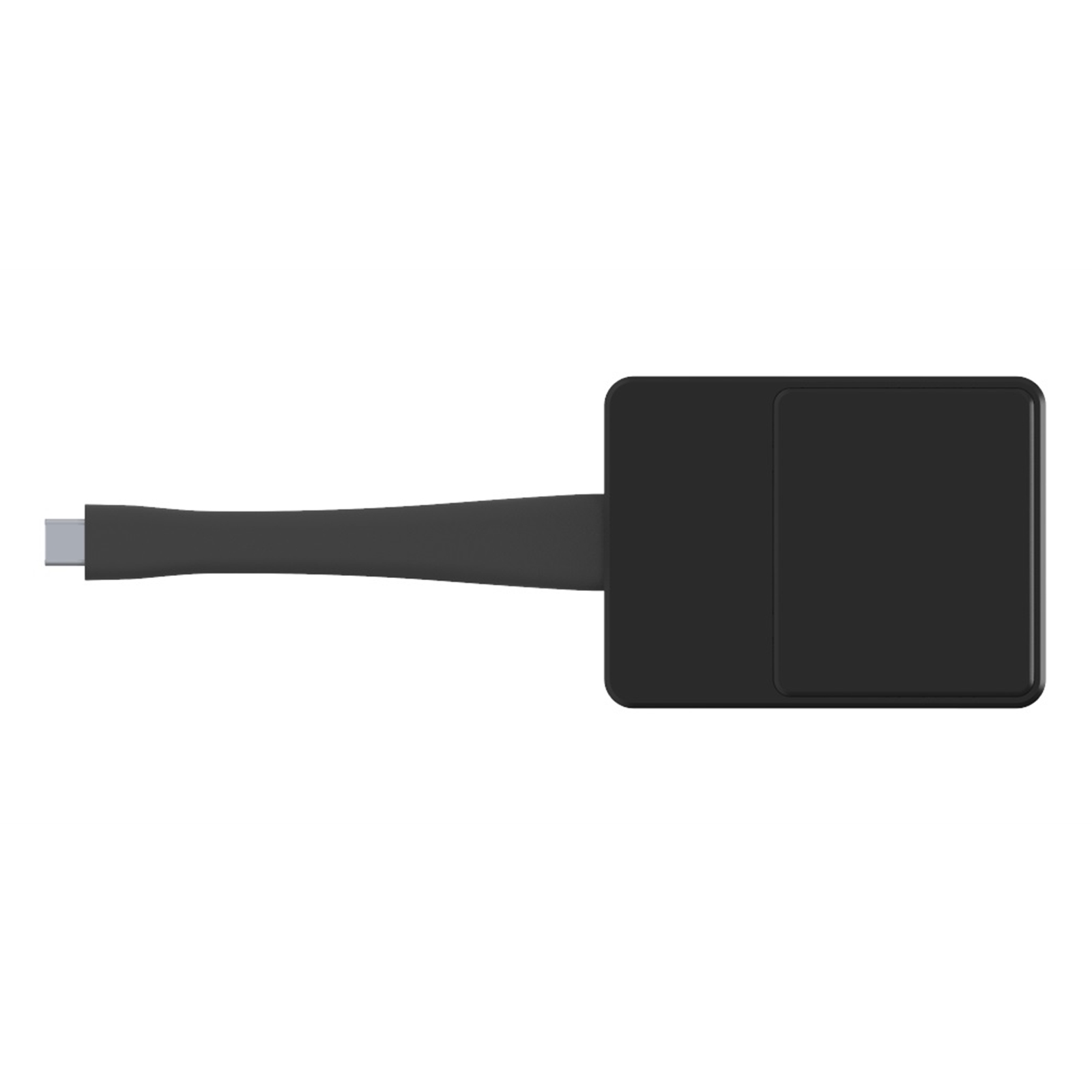

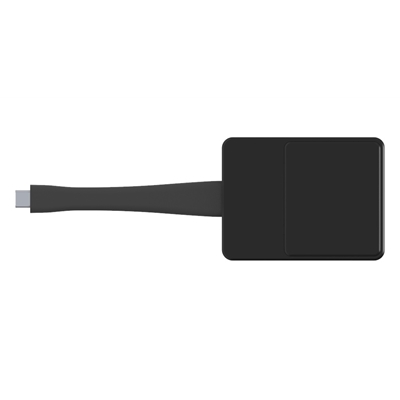

Newline Click2Cast Wireless Presentation Button

CAST YOUR SCREEN WITH A SINGLE CLICK!
Elevate your collaborative experience with Newline Click2Cast, the key to seamless wireless casting for your lessons or meetings, activated with just a click! Connect Click2Cast dongle to your laptop or smartphone and within seconds, you're casting effortlessly to your interactive display. No cables, no mess! Click2Cast supports 4K resolution for a crystal-clear image that enhances your presentations. Plus, with its advanced multicasting capabilities users can connect simultaneously, ensuring a dynamic collaboration environment. Simplify your connectivity, amplify your impact!

Specifications

MODEL
CLICK2CAST

CAMERA
Wi-Fi 5 GHz & 2,4 GHz
Authentication Protocol WPA2 (WPA2 PSK (Pre Shared
key) / WPA2 Enterprise)
Frame Rate 30 fps (4K), 60 fps (FHD)
Output Resolution up to 3840 x 2160 (4K)
Latency 150 ms
Ports USB Type-C
OS Support
Windows 7, Windows 8.1,
Windows 10 or Windows 11,
MacOS , Chrome OS, Linux OS,
Android

POWER CONSUMPTION
Input Voltage 5 V (USB Type C Power Supply)
Current Consumption 0,9 A
Power Consumption 2,5W

TRANSPORTATION
Operating Temperature -0º ~ 40º
Storage Temperature -20º ~ 60º
Dimensions 176 mm x 58 mm x 17 mm
Packaging dimensions 213 x 110 x 35 mm
Net Weight 80 g

EXTRA FEATURES
LED Blue / Green / Red
Mouse Cursor Control Back Yes
Touchback yes
Maximum Number
of Simultaneous Streams Grid view: up to 9
Extended Screen Casting yes
Mirror Control yes
BYOM (Bring Your Own Meeting) yes

CERTIFICATIONS
Internal certifications CE / REACH / WEEE / RoHS / ISO

PACKAGE CONTENT
Dongle USB Type-C 1
USB Type-C to USB Type-A
Adaptor 1
User Guide 1

COMPATIBILITY
Newline Displays 23QA, 23QAS, 23QCA, 23QCA+,
23C, 24Z, STV24Plus, DV24Plus
