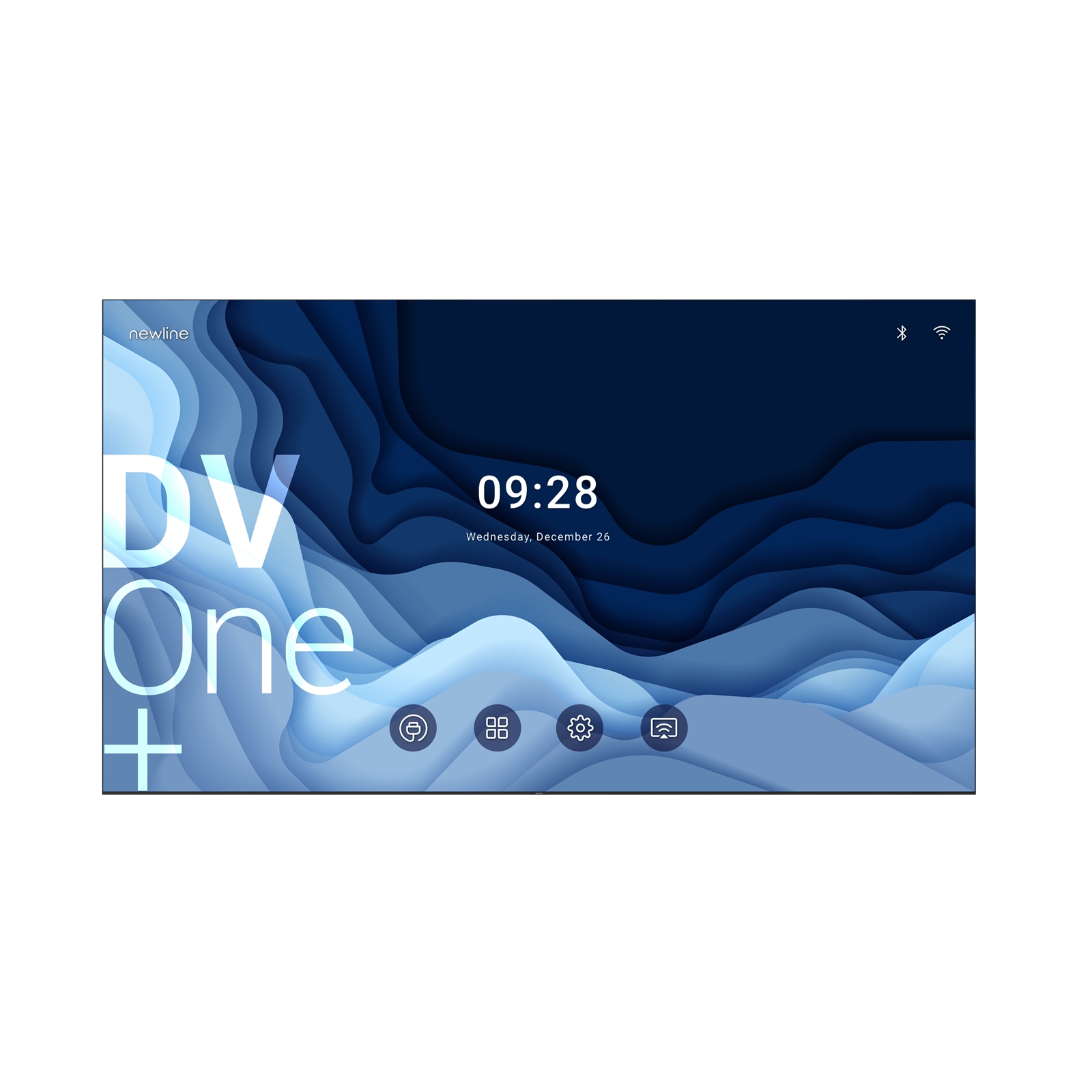

Newline Direct View+ 135" LED all in one FHD

DIRECT VIEW LED IN LARGE FORMAT
Experience the power of Newline DV One+, an advanced LED display solution that combines durability with stunning visuals. Built with glue-on-board (GOB) technology, it ensures reliability and low maintenance. With a wide color gamut and a 6000:1 contrast ratio, it delivers lifelike images. Perfect for indoor advertising or conference rooms, DV One+ offers smooth visuals and high refresh rate 3840 Hz. Available in large 4 size options: 135", 163", 189" and 216", DV One+ makes a statement in any space.

GO BEYOND WITH CLICK2CAST!
Compatible with the Newline Click2Cast dongle, a hassle-free hardware solution for one click casting. Just a single button to initiate wireless screen casting effortlessly

NEWLINE INTERACTIVE ECOSYSTEM
The Newline Interactive Ecosystem streamlines operations with seamless tools for content sharing, signage management, and display control, optimizing workflows

MODEL
DV ONE+ 135"

PANEL
Display Type Direct LED
Lights Welding Type GOB
Display Area 3000 x 1687,5
Pixel Pitch 1,56 mm
Display Ratio 16:9
Resolution 1920 x 1080 (FHD)
Colours 16,7 mln
Wide Color Gamut Yes
Brightness 550 cd/m²
Contrast Ratio 6000:1
Response Time 6 ms
Viewing Angle 160º
Refresh Rate 3840 Hz
Display Lifetime 100 000 hours

POWER CONSUMPTION
Standard Mode 580 W
Standby Mode 0,5 W

SPEAKERS
Speakers Position Bottom front
Speakers Max. Power. 1 x 5 W

SMART SYSTEM
Chipset Amlogic A311D2
CPU 4 x A73 2,20 GHz, 4 x A53 2,20 GHz 4
RAM 4 GB
Storage 32 GB
Operating System Android 13
Wi-FI 6

PORTS I/O
Side 1 x USB Type A 3.0, 1 x USB Type B, 1 x HDMI in (4K@30 Hz), 1 x USB Type C (65 W Power Delivery)
Rear 1 x USB Type A 3.0, 1 x HDMI In , 1 x HDMI Out (4K@60 Hz), 1 x Audio Line Out, 1 x SPDIF Out, 1 x LAN In (RJ45), 1 x RS232

EXTRA FEATURES
Wake-on-LAN Yes
Wake-on-WiF Yes

DIMENSIONS / WEIGHT / STORAGE
Net Weight 148 Kg
Gross Weight
(not including pallet) 189 Kg
Gross Weight
(including pallet) 236 Kg
Outline Dimensions 3009 x 1704 x 71 mm
Packaging Dimensions 2018 x 768 x 834 mm
Operating Temperature 0°C - 40°C
Storage Temperature 0°C - 40°C
Humidity 10% - 90% (non-condensing)
Mounting Wall Mount / Mobile Stand

NEWLINE COMPATIBILITY
Software Ecosystem Display Management Plus, Signage Pro, Cast+
Accessories Click2Cast, Mobile Stand (for 135" and 163")
