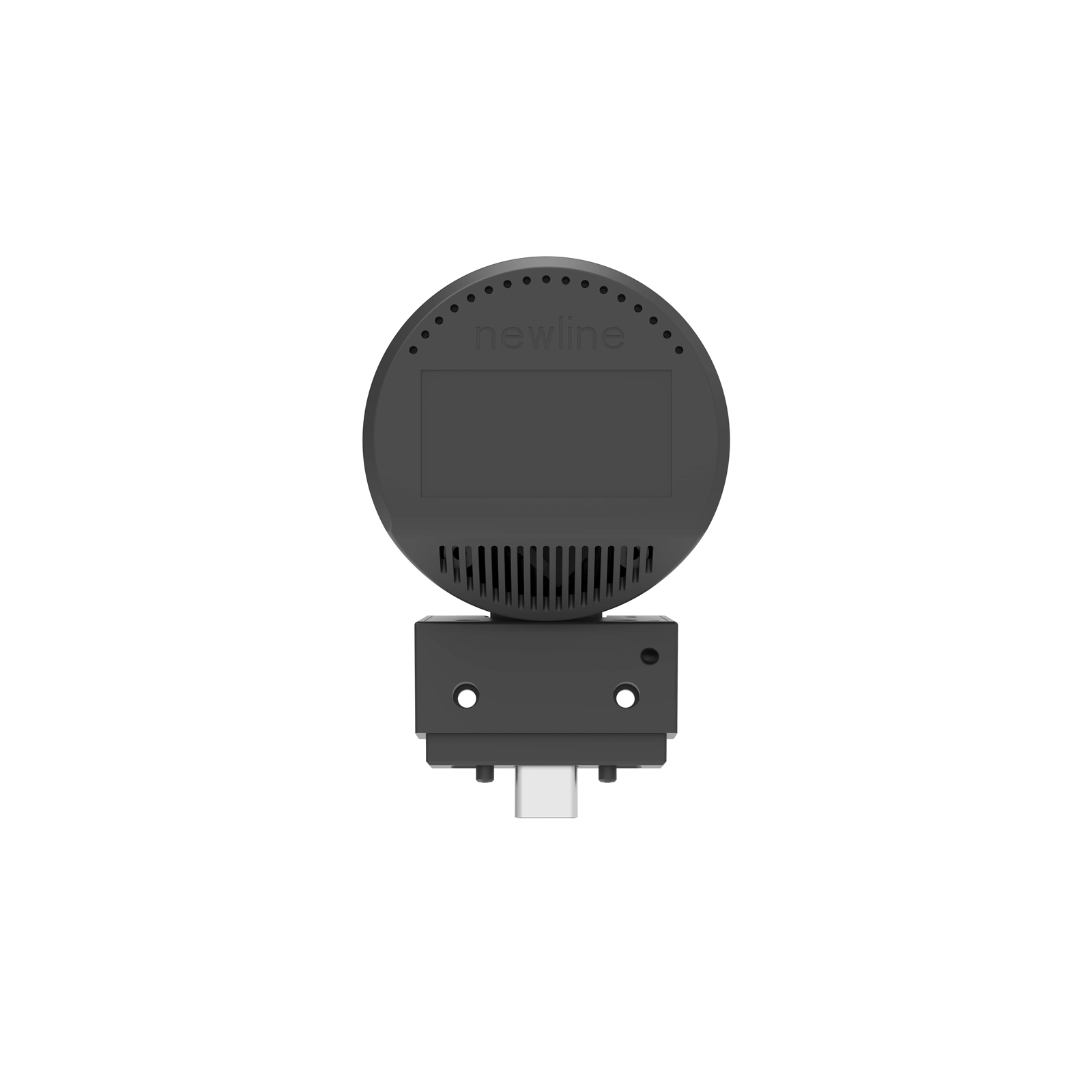

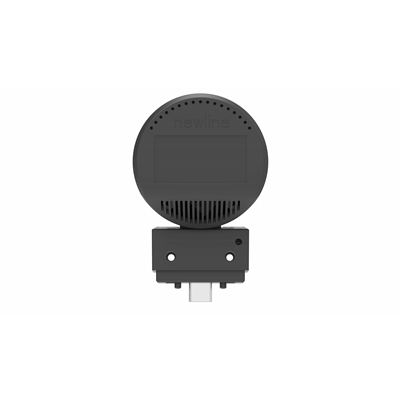

Newline Modcam+ 4K Camera

ALL-IN-ONE 4K AI CAMERA AND MIC SOLUTION
Elevate your video conferencing experience in a flash by integrating the cutting-edge Newline 4K ModCam+ into your Newline displays. The brilliantly tiltable camera design with a wide Field of View, AI-Powered Auto-Framing, and Dual Built-in microphones for pristine audio, makes it your professional solution for remote teaching and virtual team meetings on platforms such as Google Meet, Microsoft Teams and Zoom. Choose Newline to take your video conferencing to the next level.

Specifications

MODEL
MODCAM+

HARDWARE
Sensor Sony 4K CMOS Sensor
Resolution 3840 × 2160/30 fps (4K)
Field of View 120º
Iris Diaphragm F F2.2 ± 5%
Tilt -10°~ +90°
Depth of Field 0,8 m ~ Inf
Power Input USB 5V / 500 mA
Operation Temperature 0 - 50º
Dimension 73 x 61 x 35 mm
Net Weight 0,3 Kg
USB Type C 1

CAMERA
Digital Zoom 3,75 x Digital Zoom
Auto Color Balance Adjustments
White Balance, Exposure,
Black Level Correction,
Denoise and Anti-flickering
AI Auto Framing (Face tracking) v
ePTZ v
Anti-flicker Refresh Rate 50/60 Hz
Mirror Image v
Custom Image Adjustments Brightness, Contrast, Saturation,
Sharpness and Gamma

MICROPHONE
Microphone Array Dual Mic
Pick-up Distance 3 m
Noise Reduction 2D, 3D video
Signal to Noise Ratio (SNR) 74 dB
Sensitivity -30 ± 2 dB
Duplex v
Automatic Quality Gain Control v
Built-in Audio ANR/AGC supports long-distance collect voice

COMPATIBILITY
UVC UVC1 (Compatible with Windows / Mac)
Newline Interactive Displays Flex, 21Q, 22Q, 22Z, 23QA,
23QAS, 23QCA, 23QCA+
Videoconferencing Software
Solutions
Zoom,

CERTIFICATIONS
Internal Certifications FCC/CE/ KCM/UKCA/RoHS/EAC
