Newline OPS- PC 14th Gen

THE POWER OF WINDOWS SEAMLESSLY INTEGRATED

Newline OPS PC is an onboard computer for Newline displays that seamlessly integrates into the OPS slot on back of the panel. When you turn on your Newline display, the OPS PC automatically turns on as well. No visible cables, no need to connect any other Windows devices. Newline OPS PC features a number of variants with different specifications. All models have OneKey Recovery to quickly restore your PC in case of system failure. Newline OPS PC is powered by Intel and supports 4K/UHD at 60 Hz for brilliant image quality. An absolute must-have for any Newline solution!

Specifications

MODEL
OPS 14th Gen Intel Core Ultra 5 + Windows 11 Pro Preinstalled (not activated) WB5E820W

SMART SYSTEM
WB5E820W
Socket 14th Gen Intel Core Ultra 5 125H
Performance 18 MB Cache (4,50 GHz)
Memory 8 GB (2 x 4 GB DDR4)
Storage 256 GB
Graphics Intel Xe LPG Graphics
WiFi/BT Wi-Fi 6 & Bluetooth 5.3
LAN Integrated 10/100/1000 M
JAE 80 Pin HDMI 2.0 (4K @60 Hz)

ELECTRICAL
Audio Realtek ALC5682 Audio DAC
Working Voltage DC19 V / 5 A

FRONT I/O
USB-A 3.2 2
USB-A 2.0 2
RJ45 10/100/1000 M 1
HDMI OUT 2.0 (4K@30 Hz) 1
HDMI IN 2.0 (4K@60 Hz) 1
Jack 3,5 mm Mic In 1
WiFi/BT ANT 2
Power button 1
Power LED 1
HDD/SSD LED 1
Kensington lock slot 1
USB-C (Thunderbolt 4.0) 1
USB-C (support device mode) 1

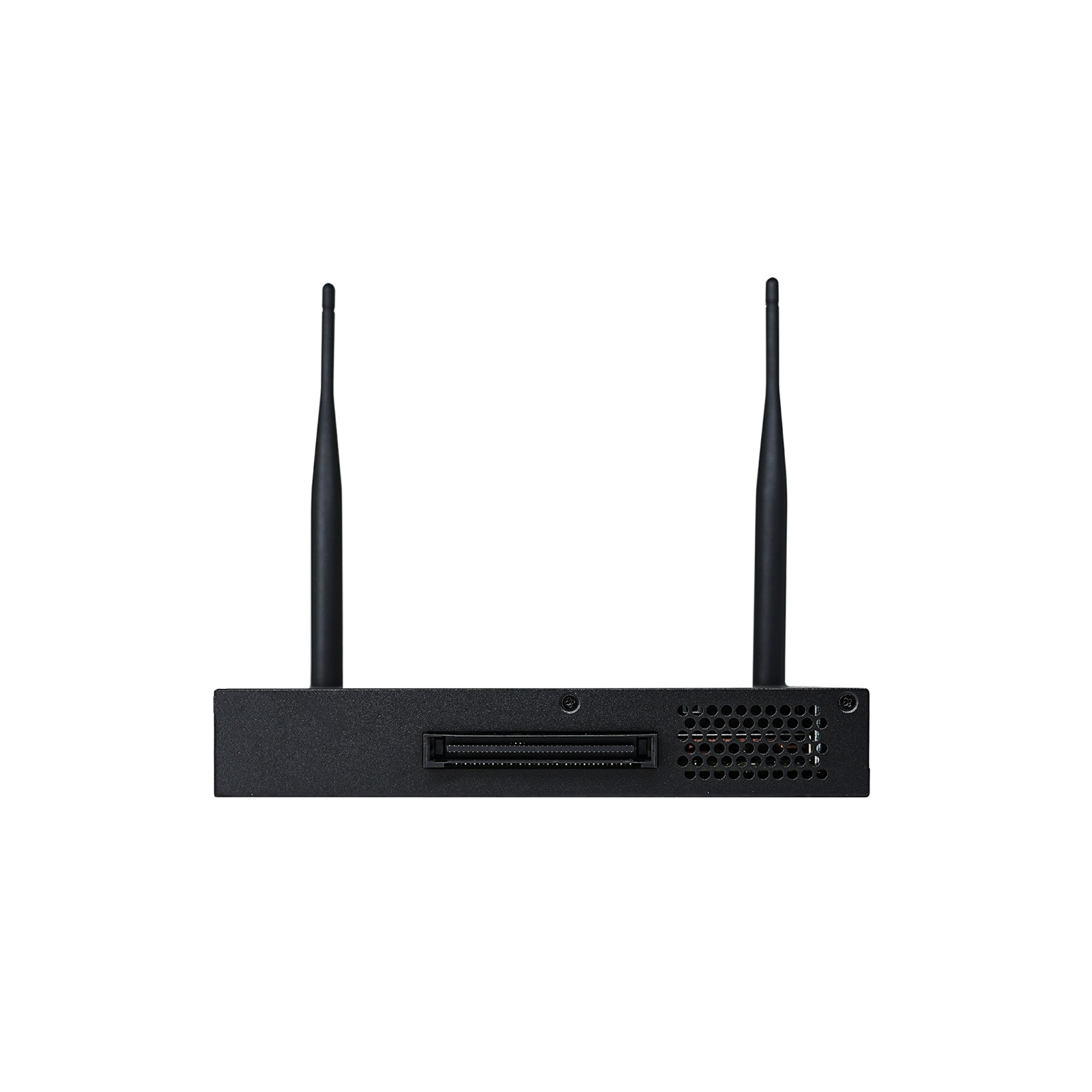

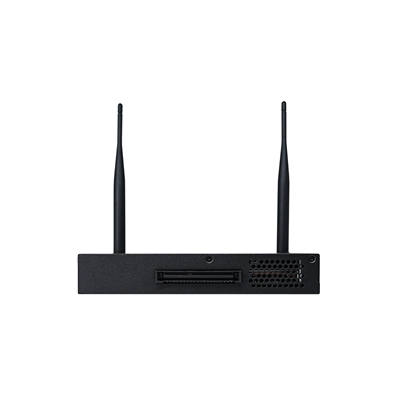

REAR I/O (JAE Pin)
HDMI OUT 2.0 (4K@60 Hz) 1
USB-A 2.0/3.2 1
DP 1

SPECIAL
RAM (expandable) Up to 64 GB (2 x 32 GB DDR4)
Certificates CE, RoHS, Reach
TPM TPM 2.0 firmware

TRANSPORTATION / STORAGE
Material Metal
Temperature Operating 0°C - 45°C
Storage -20°C - 70°C
Humidity 5% - 95% (non-condensing)
Dimensions 180 x 119 x 30 mm
Packaging Dimensions 258 x 250 x 77 mm
Net Weight 0,7 Kg
Gross Weight 1 Kg
