Target Components

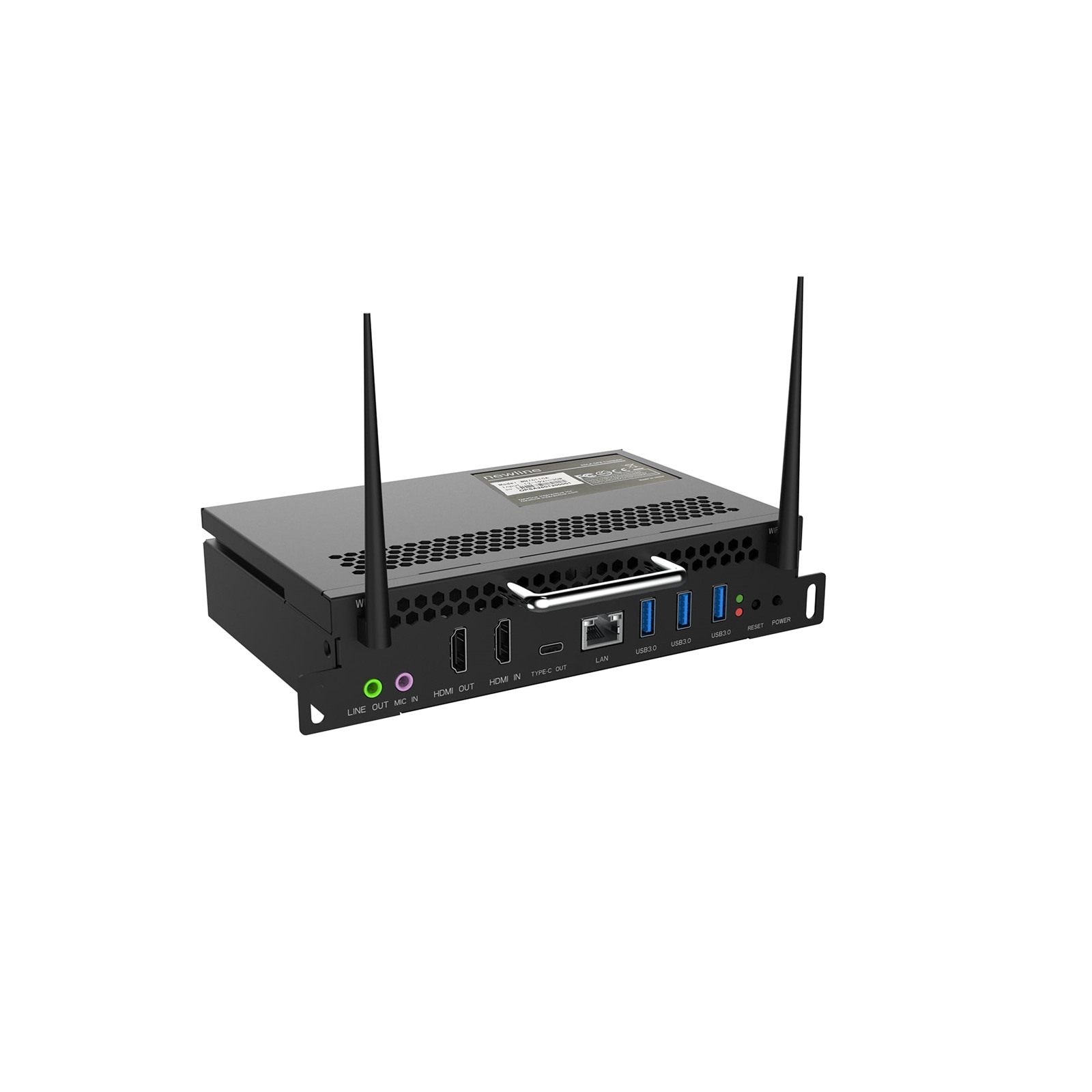

Newline OPS EDLA Android 16

NEWLINE GOOGLE EDLA OPS PC TURN YOUR NEWLINE DISPLAY INTO A CERTIFIED GOOGLE POWERHOUSE

Supercharge your existing display with the Newline Google EDLA Certified OPS - a seamless, plug-and-play upgrade that brings the full power of Google and Android 15 to your fingertips. Designed for displays without native EDLA certification, this OPS unit transforms your setup into a fully integrated Google Workspace environment. Access Google Play, Docs, Sheets, Slides, and more - all directly on your Newline interactive display. Collaborate effortlessly, streamline workflows, and enjoy native Google services like never before. With cutting-edge performance powered by the Rockchip processor and high-capacity memory, multitasking and running demanding apps is smooth and reliable

No setup hassle - just slot in the OPS and go

Specifications

MODEL
EDLA OPS PC WB76110A

SMART SYSTEM
System Android 15
Chipset RK3588
CPU 4 x Cortex A76 @2.4 GHz
4 x Cortex A55 @1.8 GHz
GPU ARM Mali-G610 MP4
NPU 6 TOPS
Memory 16 GB DDR4
Storage 256 GB
Wi-Fi/ BT Wi-Fi 6 & Bluetooth 5.0
LAN 10/100/1000M

ELECTRICAL
Working Voltage DC19 V / 5 A

FRONT I/O
USB-A 3.0 3
USB-C 1
RJ45 10/100/1000 M 1
HDMI OUT 2.1 (4K@30 Hz) 1
HDMI IN 2.1 (4K@60 Hz) 1
Jack 3,5 mm Mic In 1
Jack 3,5 mm Line Out 1
Power button 1
Reset button 1
Power LED 1

SPECIAL
Language Multilanguage Support
OTA Supported
Multiuser Management Supported
Certificates CE, Reach, ROHS

NEWLINE SOLUTIONS COMPATIBILITY
Newline Software Ecosystem
Cast+, Signage Pro, Whiteboard
Display Management Plus,
Classroom Tools, Vote, Visualizer
Newline Displays
UB, FB, IB, XRS18, VN18, 19RS,
19IP, 20ER, 20HO, 20UP, 21IP,
19NT, 21Q, 22Q, 22Z, 23C, 23S,
23QA, 23QAS, 23QCA, 23QCA+,
24Z

TRANSPORTATION / STORAGE
Material Metal
Temperature Operating 0°C - 45°C
Storage -20°C - 70°C
Humidity 5% - 95% (non-condensing)
Dimensions 180 x 119 x 42 mm
Packaging Dimensions 270 x 207 x 70 mm
Net Weight 0,76 Kg
Gross Weight 0,9 Kg
