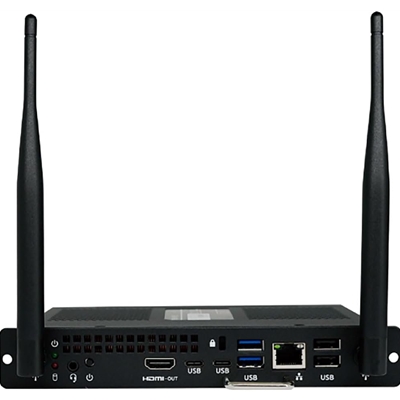

Newline OPS PC 12th Gen

THE POWER OF WINDOWS SEAMLESSLY INTEGRATE

Newline OPS PC is an onboard computer for Newline displays that seamlessly integrates into the OPS slot on back of the panel. When you turn on your Newline display, the OPS PC automatically turns on as well. No visible cables, no need to connect any other Windows devices. Newline OPS PC features a number of variants with different specifications. All models have OneKey Recovery to quickly restore your PC in case of system failure. Newline OPS PC is powered by Intel and supports 4K/UHD at 60 Hz for brilliant image quality. An absolute must-have for any Newline solution

Specifications

Model
OPS 12th Gen Intel Core i7 + Windows 11 Pro License with MS Office 2019 Pro
WB7C12OU

Smart System

SMART SYSTEM
Socket 12th Gen Intel Core i5 -
1240P
Performance 18 MB Cache (4,70 GHz)
Memory 16 GB (2 x 8 GB DDR4)
Storage 256 GB SSD
Graphics Intel Iris Xe
WIFI/BT Wi-Fi 6 & Bluetooth 5.2
LAN Integrated 10/100/1000 M
Adaptation
JAE 80 Pin HDMI 2.0 (4K @60 Hz)

ELECTRICAL
Audio Realtek ALC662 HD Audio IC
Working Voltage DC19 V / 5 A

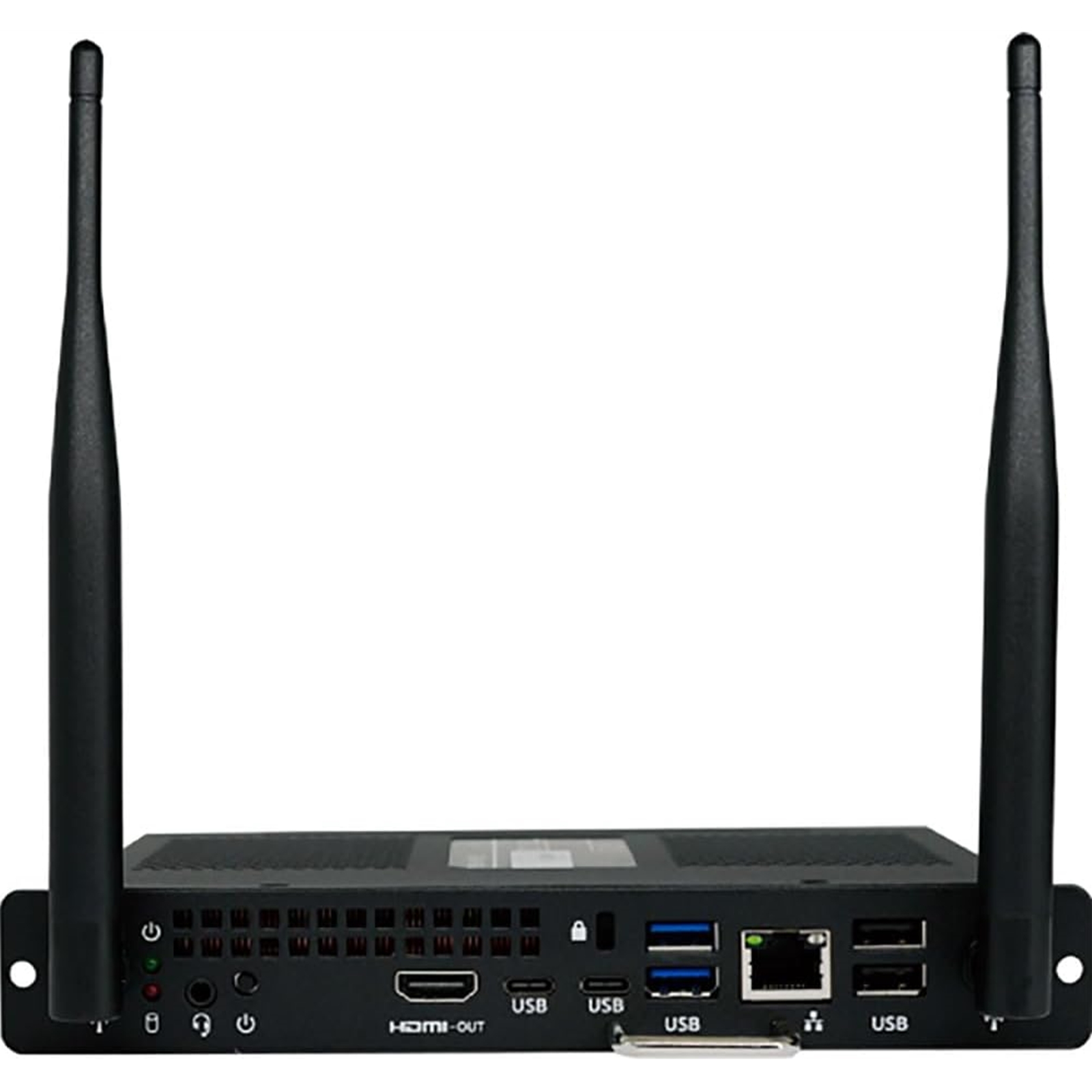

FRONT I/O
USB-A 3.0 2
USB-A 2.0 2
RJ45 10/100/1000 M 1
HDMI 1.4 out (4K@30 Hz) 1
Jack 3,5 mm Line out 1
Jack 3,5 mm Mic in 1
WIFI/BT ANT 2
Power button 1
Power LED 1
HDD/SSD LED 1
Kensington lock slot 1
USB-C (Thunderbolt 4.0) 2

SPECIAL
RAM Expandable Up to 32 GB (2 x 16 GB DDR4)
Certificates CE, RoHS, Reach
TPM TPM 2.0 firmware

TRANSPORTATION/ STORAGE
Material Metal
Temperature Operating 50°C - 450°C
Storage 100°C - 500°C
Humidity 5% - 95% (non-condensing)
Dimensions 180 x 119 x 30 mm
Packaging Dimensions 258 x 250 x 77 mm
Net Weight 0,7 Kg
Gross Weight 1 Kg
