Modernized design and crisp Full HD images. The 22B2H/EU combines a sleek 3-sides frameless panel and VGA and HDMI connectivity. Enjoy working or streaming with wide viewing angles and eye-soothing LowBlue and FlickerFree technologies.

Frameless design
Besides looking modern and attractive, frameless designs enable seamless multi-monitor setups. Your cursor/windows will not be lost anymore in the dark abyss of bezels, when many displays are placed side by side.

FHD Resolution
Want to watch a Blu-ray movie in full quality, enjoy games in high resolution or read crisp text in office applications? Thanks to its Full HD resolution of 1920 x 1080 pixels, this monitor lets you do just that. Whatever you are viewing, with Full HD it will be displayed in rich detail without requiring a high-end graphics card or consuming a lot of your system's resources.

VA Panel
VA Panels (Vertical Alignment) display deeper blacks and a high contrast for extra vivid and bright images.

HDMI
HDMI (High-Definition Multimedia Interface) is supported by the current gaming consoles, current GPUs, set-top boxes, supporting the HDCP digital content protection system. HDMI 1.3-1.4b versions support up to 144 Hz refresh rate@1080p and 75 Hz@1440p, while HDMI 2.0-2.0b versions support 240Hz@1080p, 144Hz@1440p and 60 Hz@2160p (4K).

Low Blue Light
AOC Lowblue Light protects you from harmful blue light which, during long sessions, has been shown to cause eye strain, headaches, and sleeping disorders. Our Lowblue Light feature reduces the harmful wavelengths emitted without sacrificing color composition, setting the experience free from the worry of eye damage.

Flicker Free
AOC Flicker-Free Technology utilises a DC (Direct Current) backlight panel, reducing flickering light levels. With eye strain and fatigue absolutely minimized, feel free to enjoy those long, intense gaming sessions in comfort!

Display information

SCREEN SIZE (INCH)
21.5

SCREEN SIZE (CM)
54.61

FLAT / CURVED
Flat

DISPLAY VIEWING AREA (HXW) IN MM
476,64 x 268,11

DISPLAY HARDNESS
3H

PIXEL PITCH
0.2482

PANEL RESOLUTION
1920x1080

RESOLUTION NAME
FHD

ASPECT RATIO
16:9

PANEL TYPE
VA

BRIGHTNESS IN NITS
250

BACKLIGHT TYPE
WLED

REFRESH RATE
75 Hz

RESPONSE TIME GTG
4 ms

STATIC CONTRAST RATIO
3000:1

DYNAMIC CONTRAST RATIO
20M:1

VIEWING ANGLE (CR10)
178/178

DISPLAY COLOURS
16.7 Million

Video Features

DIGITAL SIGNAL FREQUENCY
VGA/HDMI1.4 : 30 -83kHz (H) 50 -76 Hz (V)

FLICKER-FREE
Yes

BLUE LIGHT TECHNOLOGY
Low Blue Light

Cabinet information

BEZEL TYPE (FRONT)
3-sided frameless

BEZEL COLOUR (FRONT)
Black

BEZEL FINISHING (FRONT)
Texture

CABINET COLOUR (BACKSIDE)
Black

CABINET FINISHING (BACKSIDE)
Texture

KENSINGTON LOCK
Yes

VESA WALLMOUNT
100x100

Ergonomic information

TILT
-5/21,5

Power Consumption

POWER SUPPLY
External

POWER SOURCE
100 - 240V 50/60Hz

POWER CONSUMPTION ON (ENERGYSTAR TEST METHOD) IN WATTS
18

POWER CONSUMPTION STANDBY IN WATTS
0.3

POWER CONSUMPTION OFF IN WATTS
0.3

ENERGY CLASS
E

Connectivity information

HDMI
HDMI 1.4 x 1

D-SUB (VGA)
Yes

AUDIO OUTPUT
Headphone out (3.5mm)

Product Dimensions

PRODUCT DIMENSIONS INCL. BASE (WXHXD) MM
388.11(H) x 492.78(W) x 162.94(D)

PRODUCT DIMENSIONS EXCL. BASE (WXHXD) MM
292.68(H) x 492.78(W) x 36.2(D)

PACKAGING DIMENSIONS (WXHXD) MM
370(H) x 550(W) x 120(D)

GROSS WEIGHT INCL. PACKAGE (IN KG)
3.5

NET WEIGHT EXCL. PACKAGE (IN KG)
2.1

Manufacturer's Website:

www.aoc-europe.com

Warranty:

3 Years On Site Swap Out Warranty, . tel 0203 455 8083

DESIGN
Certification	True
Product colour	Black
Heavy metals free	Hg (mercury)
Market positioning	Home
Detachable stand	No
Feet colour	Black
Front bezel colour	Black
Frameless design	Yes
DISPLAY
Pixel pitch	0.2482 x 0.2482 mm
Contrast ratio (typical)	3000:1
Horizontal scan range	30 - 83 kHz
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Aspect ratio	4:3, 16:9
Vertical scan range	50 - 76 Hz
Viewable size, horizontal	47.7 cm
Viewable size, vertical	26.8 cm
Display diagonal	54.6 cm (21.5")
Response time	4 ms
Colour depth	8 bit
Display resolution	1920 x 1080 pixels
Display diagonal (metric)	54.61 cm
Supported graphics resolutions	1280 x 720 (HD 720), 1280 x 768 (WXGA), 1920 x 1080 (HD 1080)
Supported video modes	720p, 768p, 1080p
Touchscreen	No
Contrast ratio (dynamic)	20000000:1
Backlight type	W-LED
Maximum refresh rate	75 Hz
Display technology	LED
Native aspect ratio	16:9
HD type	Full HD
Panel type	VA
Display surface	Matt
Screen shape	Flat
Display number of colours	16.7 million colours
Surface hardness	3H
sRGB coverage (typical)	98%
Adobe RGB coverage	77%
NTSC coverage (typical)	73%
Display brightness (typical)	250 cd/m²
RGB colour space	sRGB
ENERGY MANAGEMENT
Power consumption (typical)	18 W
Power consumption (off)	0.3 W
Power consumption (standby)	0.3 W
External power adapter	Yes
Annual energy consumption	30 kWh
AC input frequency	50 - 60 Hz
AC input voltage	100 - 240 V
Energy efficiency scale	A+++ to D
ERGONOMICS
Plug and Play	Yes
Cable lock slot	Yes
Height adjustment	No
Tilt angle range	-5 - 21.5°
Pivot	No
On Screen Display (OSD)	Yes
Panel mounting interface	100 x 100 mm
On Screen Display (OSD) languages	Simplified Chinese, Traditional Chinese, Croatian, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian
Number of OSD languages	16
Tilt adjustment	Yes
Cable lock slot type	Kensington
VESA mounting	Yes
LOGISTICS DATA
Harmonized System (HS) code	85285210
MULTIMEDIA
Built-in microphone	No
Built-in speaker(s)	No
Built-in camera	No
OTHER FEATURES
Connection to PC	3.5 mm
Touchscreen	No
Power cable length	1.8 m
Recyclable packaging material	100%
Light effects	No
Exterior finish type	Textured
Energy efficiency class (old)	B
PACKAGING CONTENT
Cables included	HDMI
Power cable length	1.8 m
Stand included	Yes
Power adapter included	Yes
HDMI cable length	1.8 m
PACKAGING DATA
Package weight	3.5 kg
Cables included	HDMI
Package depth	120 mm
Package height	370 mm
Package width	550 mm
Package type	Box
Stand included	Yes
Power adapter included	Yes
HDMI cable length	1.8 m
PERFORMANCE
Fast charging	No
NVIDIA G-SYNC	No
AMD FreeSync	No
Flicker-free technology	Yes
Low Blue Light technology	Yes
PORTS & INTERFACES
Audio input	No
Headphone outputs	1
DC-in jack	Yes
DVI port	No
VGA (D-Sub) ports quantity	1
HDMI ports quantity	1
Headphone connectivity	3.5 mm
HDMI version	1.4
HDMI	Yes
Headphone out	Yes
Built-in USB hub	No
SUSTAINABILITY
Sustainability certificates	ENERGY STAR
WEIGHT & DIMENSIONS
Width (with stand)	492.8 mm
Height (with stand)	388.1 mm
Depth (with stand)	162.9 mm
Height (without stand)	292.7 mm
Width (without stand)	492.8 mm
Depth (without stand)	36.2 mm
Weight (with stand)	2.1 kg

Screen Size (in)	22
Max Resolution	1920x1080
Refresh Rate	75Hz
Response Time	4ms
Display Port	No
HDMI	Yes
Curved Screen	No

Screen Size (in)	22
Max Resolution	1920x1080
Refresh Rate	75Hz
Response Time	4ms
Display Port	No
HDMI	Yes
Curved Screen	No

Target Components

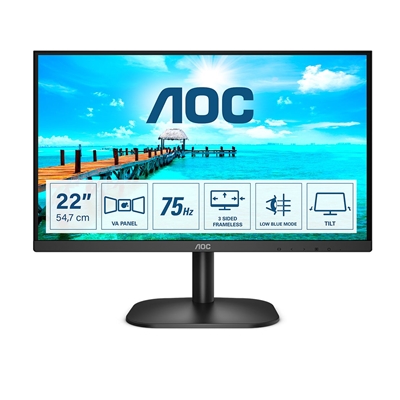

AOC 22B2H/EU 21.5 Inch Frameless Monitor, Full HD, Widescreen, VGA, HDMI, 4ms, 75Hz, VESA, Tilt
