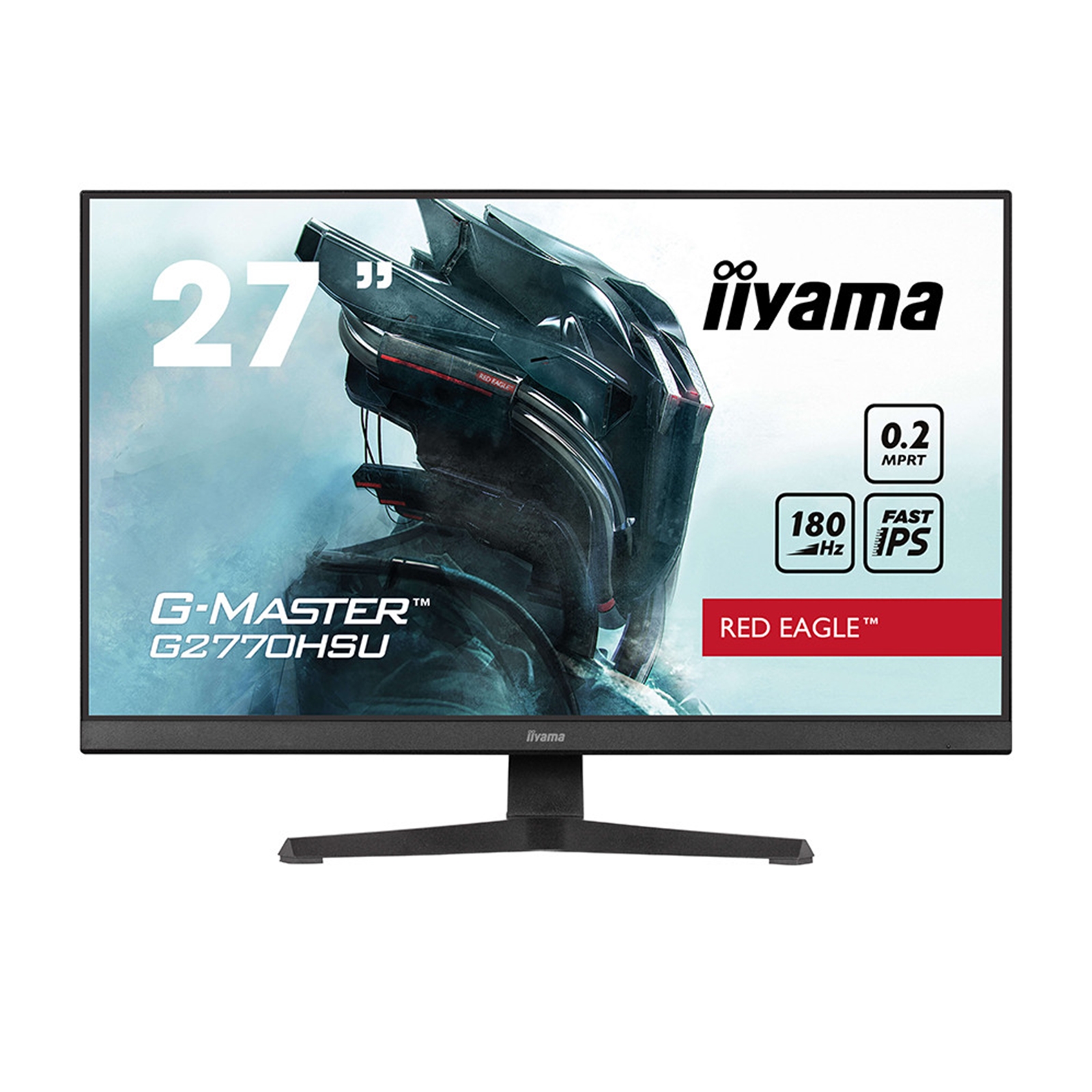

iiyama G-Master GB2770HSU-B6 Red Eagle 27 Inch Monitor Gaming Monitor, Black, Ultra Slim Bezel, Fast IPS IGZO, 180Hz, 0.2ms, FreeSync, HDMI, Display Port, USB Hub, Height Adjustable, Pivot, VESA

Key Specifications
Screen Size (in)27
Max Resolution1920x1080
Refresh Rate180Hz
Response Time0.2ms
Display PortYes
Height AdjustableYes
Curved ScreenNo
/productImages/80/MOIIY-GB2770HSU6.JPG
/productImages/80/200463.JPG
/productImages/80/200464.JPG
/productImages/80/200465.JPG
/productImages/80/200466.JPG
/productImages/80/200467.JPG
Manufacturer : IIYAMA
EAN : 4948570123964
Manufacturer Part Code : GB2770HSU-B6
Weight : 7 kg
Login For Pricing

Key Specifications
Screen Size (in)27
Max Resolution1920x1080
Refresh Rate180Hz
Response Time0.2ms
Display PortYes
Height AdjustableYes
Curved ScreenNo
Manufacturer :
IIYAMA

EAN :
4948570123964

Manufacturer Part Code :
GB2770HSU-B6

Weight :
7 kg
Recommended Products
1360Monitor Stands & Arms
See details
1336Audio Visual Cables
See details
1356Speakers
See details

iiyama G-Master GB2770HSU-B6 Red Eagle 27 Inch Monitor Gaming Monitor, Black, Ultra Slim Bezel, Fast IPS IGZO, 180Hz, 0.2ms, FreeSync, HDMI, Display Port, USB Hub, Height Adjustable, Pivot, VESA

Unleash your full gaming potential with the Fast IPS GB2770HSU Red Eagle.
Gain the competitive edge you need to unlock your full gaming potential with the 27'' GB2770HSU monitor. Featuring an ultra-fast 0.2ms MPRT and a 180Hz refresh rate, this monitor ensures smooth gameplay. Armed with Adaptive Sync you can make split second decisions and forget about ghosting effects or smearing issues. The ability to adjust brightness and the dark shades with the Black Tuner delivers greater viewing performance in shadowed areas and the IPS panel technology guarantees superb image quality. Additionally, the monitor is equipped with an ergonomic 150mm height adjustable stand, allowing you to customize the monitor to your preferences.

FAST IPS
The Fast IPS panel technology guarantees not only high-fidelity, vivid battleground scenes displayed with outstanding colour accuracy but provides also an outstanding 0.2ms Moving Picture Response Time (MPRT).

180HZ & 0.2MS MPRT
With 180Hz refresh rate and 0.2ms MPRT response time the force is with you! Make split second decisions and be sure the image on the screen is always sharp and smooth.

BLACK TUNER
The users can adjust the brightness and the dark shades with the Black Tuner, giving greater viewing performance in shadowed areas and helping to spot the enemy earlier.

SPEAKERS AND HEADPHONES
Playing with friends? Use the integrated high-quality speakers. Don't want to disturb anybody? Plug your headset in the headphone connector and enjoy!

DISPLAY CHARACTERISTICS

Diagonal
27", 68.6cm

Panel
Fast IPS

Native resolution
1920 x 1080 @180Hz (2.1 megapixel Full HD, DisplayPort)

Aspect ratio
16:9

Panel brightness
300cd/m²

Static contrast
1000:1

Advanced contrast
80M:1

Response time (MPRT)
0.2ms

Viewing zone
horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°

Colour support
16.7mln 8bit

Horizontal Sync
30 - 225kHz

Viewable area W x H
596.7 x 335.7mm, 20.7 x 11.7"

Pixel pitch
0.311mm

Colour
matte, black

INTERFACES / CONNECTORS / CONTROLS

Signal input
HDMI x1 (v.1.4, max. 1920 x 1080 @180Hz)
DisplayPort x1 (v.1.2, max. 1920 x 1080 @180Hz)

USB HUB
x4 (v.3.2 Gen 1 (5Gbps, DC5V, 900mA))

HDCP
yes

Headphone connector
yes

FEATURES

Blue light reducer
yes

Flicker free
yes

FreeSync support
HDMI: 1920 x 1080 @48-180Hz, DP: 1920 x 1080 @48-180Hz

OSD languages
EN, DE, FR, ES, IT, PT, RU, JP, CZ, NL, PL

Control buttons
Signal select/ Exit, +/ Volume, -/ i-Style Colour, Menu, Power

User controls
picture adjust (contrast, brightness, overdrive, ACR, ECO, blue light reducer, Black Tuner, MBR, gamma), input select, audio adjust (volume, mute), store user settings, colour settings (colour temperature, 6-Axis, user preset), image adjust (i-Style colour, X-Res Technology, sharp & soft, HDMI range, direct drive mode, video mode adjust), language, setup menu (OSD H. position, OSD V. position, OSD time out, opening logo, AMD FreeSync Premium, LED), display information, reset

Speakers
2 x 2W

Convenience
Kensington-lock™ prepared, DDC2B, Mac OSX

MECHANICAL

Display position adjustments
height, tilt, pivot (rotation both sides)

Height adjustment
150mm

Rotation (PIVOT function)
90°

Tilt angle
23° up; 5° down

VESA mounting
100 x 100mm

Cable management system
yes

ACCESSORIES INCLUDED

Cables
power, USB, HDMI, DP

Other
quick start guide, safety guide


POWER MANAGEMENT

Power supply unit
internal

Power supply
AC 100 - 240V, 50/60Hz

Power usage
16W typical, 0.5W stand by, 0.3W off mode

SUSTAINABILITY

Regulations
CE, TÜV-Bauart, EAC, PSE, RoHS support, ErP, WEEE, VCCI, REACH, UKCA, Eyesafe 2.0

Energy efficiency class (Regulation (EU) 2017/1369)
E

REACH SVHC
above 0.1%: Lead

DIMENSIONS / WEIGHT

Product dimensions W x H x D
613 x 557.5 x 213mm

Box dimensions W x H x D
690 x 455 x 168mm

Weight (without box)
5.4kg

Weight (with box)
7.6kg
Manufacturer's Website:
Warranty:
3 Year Manufacturers On Site Swap Out, Tel: 01926 819 189
DESIGN
Certification CE, TÜV-Bauart, EAC, PSE, RoHS support, ErP, WEEE, VCCI, REACH, UKCA, Eyesafe 2.0
Product colour Black
Market positioning Gaming
DISPLAY
Pixel pitch 0.311 x 0.311 mm
Contrast ratio (typical) 1000:1
Viewing angle, horizontal 178°
Viewing angle, vertical 178°
Viewable size, horizontal 59.7 cm
Viewable size, vertical 33.6 cm
Display diagonal 68.6 cm (27")
Response time 0.2 ms
Display resolution 1920 x 1080 pixels
Digital horizontal frequency 30 - 225 kHz
Display diagonal (metric) 60.5 cm
Touchscreen No
Contrast ratio (dynamic) 80000000:1
Maximum refresh rate 180 Hz
Display technology LCD
Native aspect ratio 16:9
HD type Full HD
Panel type IPS
Screen shape Flat
Display number of colours 16.7 million colours
Display brightness (typical) 300 cd/m²
ENERGY MANAGEMENT
Power consumption (typical) 16 W
Power consumption (off) 0.3 W
Power consumption (standby) 0.5 W
AC input frequency 50/60 Hz
AC input voltage 100 - 240 V
Energy efficiency scale A to G
Energy efficiency class (SDR) D
Energy consumption (SDR) per 1000 hours 16 kWh
European Product Registry for Energy Labelling (EPREL) code 1957175
ERGONOMICS
Cable lock slot Yes
Height adjustment Yes
Swivel angle range -45 - 45°
Tilt angle range -5 - 23°
Pivot Yes
On Screen Display (OSD) Yes
Cable management Yes
Panel mounting interface 100 x 100 mm
On Screen Display (OSD) languages Czech, German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Russian
Swivelling Yes
Number of OSD languages 11
Pivot angle 0 - 90°
Tilt adjustment Yes
Cable lock slot type Kensington
VESA mounting Yes
Adjustable height (max) 15 cm
MULTIMEDIA
RMS rated power 4 W
Built-in speaker(s) Yes
Built-in camera No
Number of speakers 2
OTHER FEATURES
Certification CE, TÜV-Bauart, EAC, PSE, RoHS support, ErP, WEEE, VCCI, REACH, UKCA, Eyesafe 2.0
Touchscreen No
PACKAGING CONTENT
Cables included AC, DisplayPort, HDMI, USB
Quick start guide Yes
PACKAGING DATA
Package weight 7.6 kg
Cables included AC, DisplayPort, HDMI, USB
Package depth 168 mm
Package height 432 mm
Package width 690 mm
Quick start guide Yes
PERFORMANCE
Flicker-free technology Yes
Low Blue Light technology Yes
VESA Adaptive Sync support Yes
PORTS & INTERFACES
HDMI ports quantity 1
HDMI version 1.4
HDMI Yes
HDCP Yes
DisplayPorts quantity 1
DisplayPort version 1.2
Headphone out Yes
Built-in USB hub Yes
USB hub version 3.2 Gen 1 (3.1 Gen 1)
USB Type-A downstream ports quantity 4
SUSTAINABILITY
European Product Registry for Energy Labelling (EPREL) code 1957175
WEIGHT & DIMENSIONS
Width (with stand) 613 mm
Height (with stand) 557.5 mm
Depth (with stand) 213 mm
Weight (with stand) 5.4 kg
