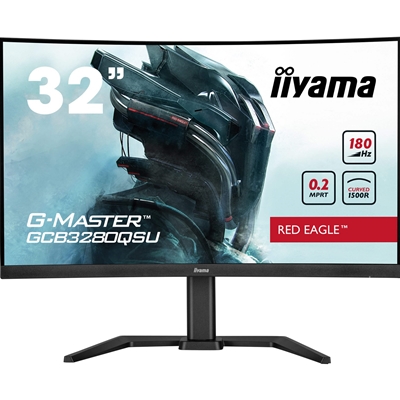

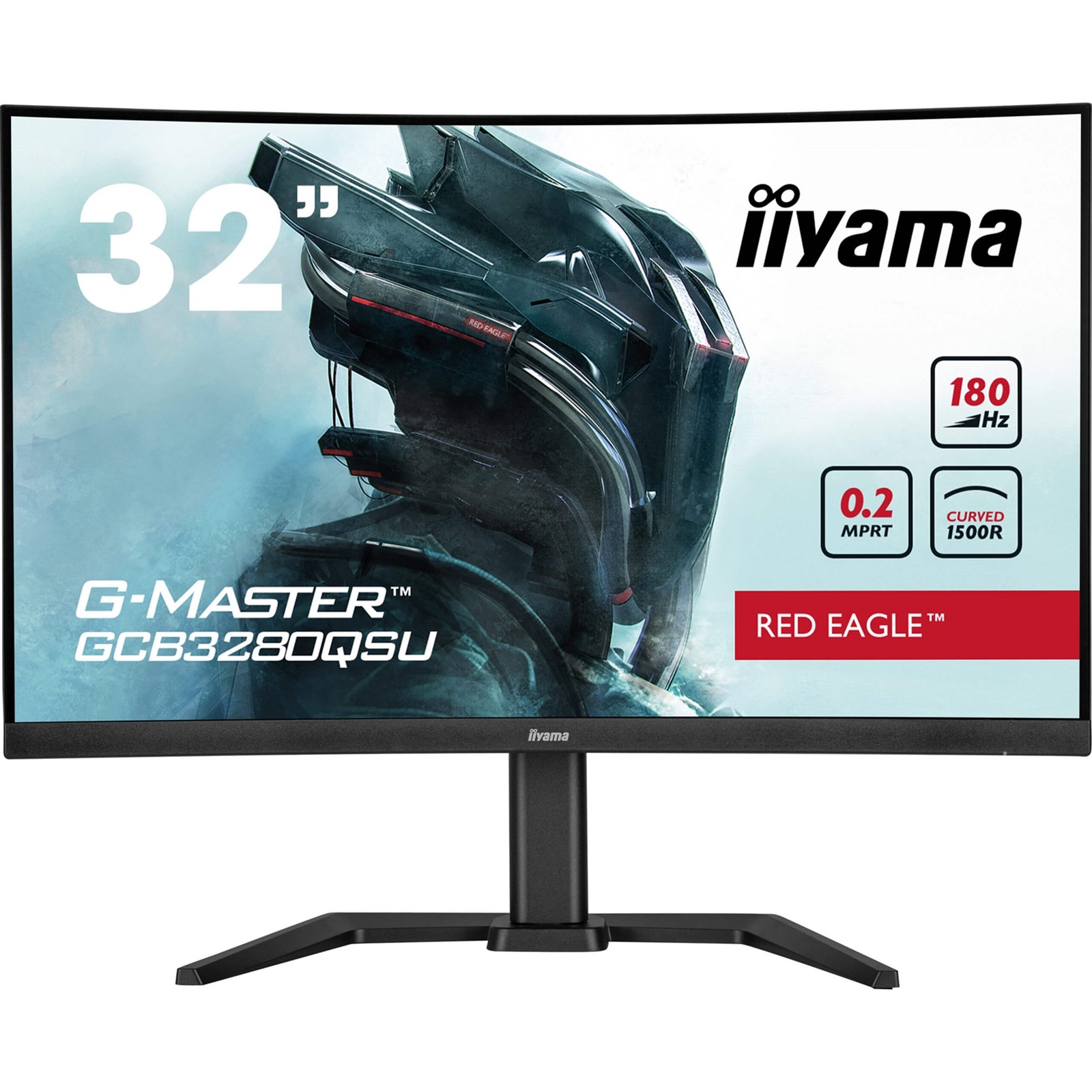

iiyama G-Master GCB3280QSU-B2 Red Eagle 32 Inch Curved Gaming Monitor, Black, 2560x1440, 0.2ms, 180hz, FreeSync, HDMI, Display Port, USB Hub, Speakers, Int PSU, Height Adjustable, Swivel, VESA

Key Specifications
Screen Size (in)32
Max Resolution2560x1440
Refresh Rate180Hz
Response Time0.2ms
Display PortYes
Height AdjustableYes
Curved ScreenYes
/productImages/80/MOIIY-GCB32QSUB2.JPG
/productImages/80/208606.JPG
/productImages/80/208607.JPG
/productImages/80/208608.JPG
/productImages/80/208609.JPG
/productImages/80/208610.JPG
/productImages/80/208611.JPG
/productImages/80/208612.JPG
Manufacturer : IIYAMA
EAN : 4948570125388
Manufacturer Part Code : GCB3280QSU-B2
Weight : 12.05 kg
Login For Pricing

Key Specifications
Screen Size (in)32
Max Resolution2560x1440
Refresh Rate180Hz
Response Time0.2ms
Display PortYes
Height AdjustableYes
Curved ScreenYes
Manufacturer :
IIYAMA

EAN :
4948570125388

Manufacturer Part Code :
GCB3280QSU-B2

Weight :
12.05 kg
Recommended Products
1360Monitor Stands & Arms
See details
1336Audio Visual Cables
See details
1356Speakers
See details

G-MASTER GCB3280QSU-B2
Immerse yourself in the game with the curved GCB3280QSU Red Eagle with 180Hz refresh rate
The 1500R curved VA panel with 180Hz refresh rate, 0.2ms MPRT and the 2560x1440 resolution gives you an immersive viewing experience and guarantees superb image quality. The height adjustable stand ensures you can easily adjust the screen position and easily customizable screen settings using the predefined and custom gaming modes along with the Black Tuner function gives you control over the dark scenes to make sure details are always clearly visible.

CURVED DESIGN 1500R
The 1500R curvature of the screen guarantees a realistic and comfortable viewing experience allowing you to really immerse yourself in the game.

180Hz & 0.2ms MPRT
With 180Hz refresh rate and 0.2ms MPRT response time the force is with you! Make split second decisions and be sure the image on the screen is always sharp and smooth.

VA PANEL TECHNOLOGY
Guaranteeing excellent contrast ratio making all the nuances between the light and dark colours clearly visible

Black Tuner
The users can adjust the brightness and the dark shades with the Black Tuner, giving greater viewing performance in shadowed areas and helping to spot the enemy earlier.

Specifications

Display

Diagonal
31.5", 80cm

Panel
VA LED

Curved
1500R

Native resolution
2560 x 1440 @180Hz (3.7 megapixel)

Aspect ratio
16:9

Panel brightness
350 cd/m²

Static contrast
3000:1

Advanced contrast
80M:1

Response time (MPRT)
0.2ms

Viewing zone
horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°

Colour support
16.7mln

Horizontal Sync
30 - 225kHz

Viewable area W x H
697.3 x 392.3mm, 27.5 x 15.4"

Pixel pitch
0.272mm

Colour
matte, black

INTERFACES, CONNECTORS, CONTROLS

Signal input
HDMI x1 (v.1.4)
DisplayPort x1 (v.1.2)

USB HUB
x4 (v.3.2 (Gen 1, 5Gbit; DC5V, 900mA))

HDCP
yes

Headphone connector
yes

FEATURES

Blue light reducer
yes

Flicker free
yes

Adaptive Sync support
Yes

HDR
Yes

OSD languages
EN, DE, FR, ES, IT, RU, JP, CZ, NL, PL

Control buttons
Power, Menu, Up/Right/Volume, Down/Left/Black Tuner/MBR/AMD FreeSync/Night Mode Button, Input Select/Exit

User controls
picture adjust (contrast, brightness, OD, AC, Eco, black tuner, colour saturation, MBR, AMD FreeSync), input source, audio settings (volume, mute audio), user modes, colour settings (6-Axis, gamma, blue light reducer, colour temperature, user preset), image adjust (i-Style Colour, sharp and soft, RGB range, video mode adjust), language, setup menu (OSD h. position, OSD v. position, OSD time, opening logo, LED), display information, recall

Speakers
2 x 2W

Convenience
Kensington-lock prepared, DDC2B, Mac OSX

MECHANICAL

Display position adjustments
height, swivel, tilt

Tilt angle
23° up; 5° down

Height Adjustment
150mm

Swivel
90°; 45° left; 45° right

VESA mounting
100 x 100mm

Cable management system
yes

ACCESSORIES INCLUDED

Cables
power (1.8m), USB (1.8m), HDMI (1.8m), DP (1.8m)

Other
quick start guide, safety guide

POWER MANAGEMENT

Power supply unit internal

Power supply
AC 100 - 240V, 50/60Hz

Power usage
44W typical, 0.5W stand by, 0.3W off mode

SUSTAINABILITY

Regulations
CE, TUV-Bauart, EAC, VCCI-B, PSE, RoHS support, ErP, WEEE, REACH, UKCA

Energy efficiency class (Regulation (EU) 2017/1369)
F

REACH SVHC
above 0.1%: Lead

WEIGHT & DIMENSIONS
Product dimensions W x H x D 709.5 x 473 (623) x 290mm
Box dimensions W x H x D 810 x 518 x 224mm
Weight (without box) 9kg
Weight (without stand) 6.3kg
Weight (with box) 11.9kg
EAN code 4948570125388
Manufacturer's Website:
Warranty:
3 Year Manufacturers On Site Swap Out, Tel: 01926 819 189
DESIGN
Product colour Black
Market positioning Gaming
DISPLAY
Pixel pitch 0.272 x 0.272 mm
Contrast ratio (typical) 3000:1
Horizontal scan range 30 - 225 kHz
Viewing angle, horizontal 178°
Viewing angle, vertical 178°
Viewable size, horizontal 39.2 cm
Viewable size, vertical 69.7 cm
Display diagonal 80 cm (31.5")
Response time 0.2 ms
Display resolution 2560 x 1440 pixels
Display diagonal (metric) 80 cm
Touchscreen No
Contrast ratio (dynamic) 80000000:1
Maximum refresh rate 180 Hz
Display technology LED
Native aspect ratio 16:9
HD type Dual QHD
Panel type VA
Display surface Matt
Screen shape Curved
Display number of colours 16.7 million colours
sRGB coverage (typical) 96%
NTSC coverage (typical) 72%
High Dynamic Range (HDR) supported Yes
Display brightness (typical) 350 cd/m²
Screen curvature rating 1500R
Colour gamut standard NTSC, sRGB
ENERGY MANAGEMENT
Power consumption (typical) 44 W
Power supply type Internal
Power consumption (off) 0.3 W
Power consumption (standby) 0.5 W
AC input frequency 50/60 Hz
AC input voltage 100 - 240 V
Energy efficiency scale A to G
Energy efficiency class (SDR) F
Energy efficiency class (HDR) G
Energy consumption (SDR) per 1000 hours 28 kWh
Energy consumption (HDR) per 1000 hours 50 kWh
ERGONOMICS
Cable lock slot Yes
Wall mountable Yes
Height adjustment Yes
Swivel angle range 90 - 45°
Tilt angle range 23 - 5°
On Screen Display (OSD) Yes
Cable management Yes
Panel mounting interface 100 x 100 mm
On Screen Display (OSD) languages Czech, German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Portuguese, Russian
Swivelling Yes
Tilt adjustment Yes
Cable lock slot type Kensington
VESA mounting Yes
Adjustable height (max) 15 cm
MULTIMEDIA
RMS rated power 2 W
Built-in speaker(s) Yes
Built-in camera No
Number of speakers 2
OTHER FEATURES
Touchscreen No
Power cable length 1.8 m
PACKAGING CONTENT
Quick start guide Yes
Power cable length 1.8 m
HDMI cable length 1.8 m
DisplayPort cable length 1.8 m
PACKAGING DATA
Package weight 11.9 kg
Package depth 224 mm
Package height 518 mm
Package width 810 mm
Quick start guide Yes
Package type Box
HDMI cable length 1.8 m
DisplayPort cable length 1.8 m
PERFORMANCE
Flicker-free technology Yes
Low Blue Light technology Yes
VESA Adaptive Sync support Yes
PORTS & INTERFACES
HDMI ports quantity 2
HDMI version 2.0
HDMI Yes
HDCP Yes
DisplayPorts quantity 1
DisplayPort version 1.2
Headphone out Yes
Built-in USB hub Yes
USB hub version 3.2 Gen 1 (3.1 Gen 1)
WEIGHT & DIMENSIONS
Width (with stand) 709.5 mm
Height (with stand) 623 mm
Depth (with stand) 290 mm
Height (without stand) 473 mm
Width (without stand) 709.5 mm
Depth (without stand) 290 mm
Weight (with stand) 9 kg
