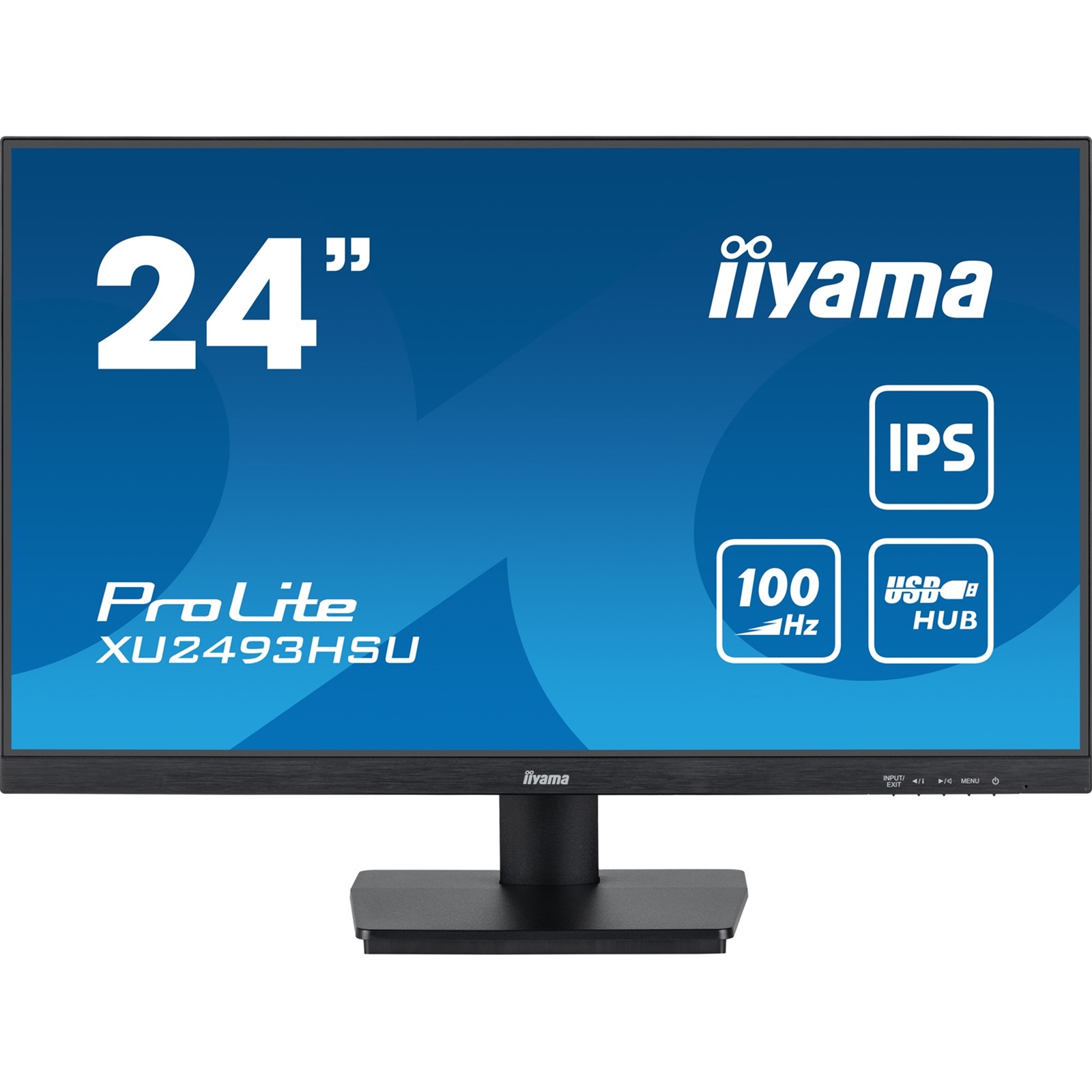

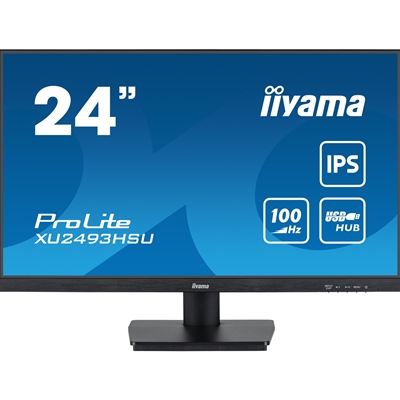

iiyama ProLite XU2493HSU-B7 IPS Monitor - 24 Inch, 1920x1080 Full HD (1080p) @ 100 Hz, 250 cd/m, 1ms, USB-Hub, HDMI, DisplayPort, speakers, VESA, Matte Black

Key Specifications
Screen Size (in)24
Max Resolution1920x1080
Refresh Rate100Hz
Response Time1ms
Display PortYes
Height AdjustableNo
Curved ScreenNo
/productImages/80/MOIIY-XU2493HUB7.JPG
/productImages/80/208082.JPG
/productImages/80/208083.JPG
/productImages/80/208084.JPG
/productImages/80/208085.JPG
/productImages/80/208086.JPG
Manufacturer : IIYAMA
EAN : 4948570124589
Manufacturer Part Code : XU2493HSU-B7
Weight : 4.15 kg
Login For Pricing

Key Specifications
Screen Size (in)24
Max Resolution1920x1080
Refresh Rate100Hz
Response Time1ms
Display PortYes
Height AdjustableNo
Curved ScreenNo
Manufacturer :
IIYAMA

EAN :
4948570124589

Manufacturer Part Code :
XU2493HSU-B7

Weight :
4.15 kg
Recommended Products
1360Monitor Stands & Arms
See details
1336Audio Visual Cables
See details
1356Speakers
See details

ProLite XU2493HSU-B7
24" Full HD IPS-monitor with USB-Hub and 100Hz refresh rate
Stylish edge-to-edge design makes the ProLite XU2493HSU perfect for multi-monitor set-ups. The IPS panel technology offers accurate and consistent colour reproduction with wide viewing angles. The 100Hz refresh rate together with Adaptive Sync function provides very tangible improvement in image smoothness. High contrast and brightness values mean the monitor will provide excellent performance for photographic and web design. Equipped with speakers, 2 port USB hub, headphone socket, HDMI and DisplayPort connections, plus a blue light reducer function to reduce eye fatigue for optimal user comfort, make this 24'' monitor a great choice for both multi-monitor configuration and office applications.

IPS Technology
IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.

100Hz
A 100Hz refresh rate translates into increased smoothness of the image. This means that flickering is reduced and therefore eye fatigue is also less noticeable. The increased frequency also means smoother transitions between contrasting colours, smoother motion scenes in both movies and gaming, and even reduced mouse cursor flickering.

SPEAKERS AND HEADPHONES
Playing with friends? Use the integrated high-quality speakers. Don't want to disturb anybody? Plug your headset in the headphone connector and enjoy!

Flicker-free + Blue light
The ultimate solution for the comfort and health of your eyes. Flicker-free monitors with the blue light reducer function substantially reduce the strain and fatigue caused by flickering and blue light emittance of regular monitors.

ACR
Contrast Ratio is a measurement of the difference between the darkest black and the brightest white your monitor can display. Advanced Contrast Ratio is a feature that automatically adjusts contrast and brightness of the screen to assure perfect picture quality while watching films and playing games.

DISPLAY CHARACTERISTICS

Diagonal
23.8", 60.5cm

Panel
IPS panel technology LED, matte finish

Native resolution
1920 x 1080 @100Hz (2.1 megapixel Full HD)

Aspect ratio
16:9

Panel brightness
300 cd/m²

Static contrast
1300:1

Advanced contrast
80M:1

Response time (MPRT)
1ms

Viewing zone
horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°

Colour support
16.7mln (sRGB: 96%; NTSC: 72%)

Horizontal Sync
30 - 110kHz

Viewable area W x H
527 x 296.5mm, 20.8 x 11.7"

Pixel pitch
0.275mm

Colour
matte, black

INTERFACES / CONNECTORS / CONTROLS

Signal input
HDMI x1 (v.1.4, max. 1920 x 1080 @180Hz)
DisplayPort x1 (v.1.2, max. 1920 x 1080 @180Hz)

USB HUB
x2 (v. 2.0 (DC5V, 500mA))

HDCP
yes

Headphone connector
yes

FEATURES

Blue light reducer
yes

Flicker free
yes

Adaptive support
Yes

OSD languages
EN, DE, FR, ES, IT, PT, RU, JP, CZ, NL, PL

Control buttons
Signal select/ Exit, +/ Volume, -/ i-Style Colour, Menu, Power

User controls
picture adjust (contrast, brightness, overdrive, ACR, ECO, blue light reducer, Black Tuner, MBR, gamma), input select, audio adjust (volume, mute), store user settings, colour settings (colour temperature, 6-Axis, user preset), image adjust (i-Style colour, X-Res Technology, sharp & soft, HDMI range, direct drive mode, video mode adjust), language, setup menu (OSD H. position, OSD V. position, OSD time out, opening logo, AMD FreeSync Premium, LED), display information, reset

Speakers
2 x 2W

Convenience
Kensington-lock™ prepared, DDC2B, Mac OSX

MECHANICAL

Display position adjustments
tilt

Tilt angle
23° up; 4° down

VESA mounting
100 x 100mm

Cable management system
yes

ACCESSORIES INCLUDED

Cables
power, USB, HDMI

Other
quick start guide, safety guide


POWER MANAGEMENT

Power supply unit
internal

Power supply
AC 100 - 240V, 50/60Hz

Power usage
18W typical, 0.5W stand by, 0.3W off mode

SUSTAINABILITY

Regulations
TCO Certified, CE, TUV-Bauart, EAC, VCCI-B, PSE, RoHS support, ErP, WEEE, REACH, UKCA (*registration varies by country, go to www.epeat.net for details)

Energy efficiency class (Regulation (EU) 2017/1369)
E

REACH SVHC
above 0.1%: Lead

DIMENSIONS / WEIGHT
Product dimensions W x H x D 538.5 x 393 x 178.5mm
Box dimensions W x H x D 615 x 405 x 126mm
Weight (without box) 3.0kg
Weight (with box) 4.2kg
Manufacturer's Website:
Warranty:
Manufacturers Warranty - For further details please visit the manufacturers website.
DESIGN
Product colour Black
Market positioning Business
DISPLAY
Pixel pitch 0.275 x 0.275 mm
Contrast ratio (typical) 1300:1
Horizontal scan range 30 - 110 kHz
Viewing angle, horizontal 178°
Viewing angle, vertical 178°
Viewable size, horizontal 29.6 cm
Viewable size, vertical 52.7 cm
Display diagonal 60.5 cm (23.8")
Response time 1 ms
Display resolution 1920 x 1080 pixels
Display diagonal (metric) 60.5 cm
Touchscreen No
Contrast ratio (dynamic) 80000000:1
Maximum refresh rate 100 Hz
Display technology LED
Native aspect ratio 16:9
HD type Full HD
Panel type IPS
Display surface Matt
Screen shape Flat
Display number of colours 16.7 million colours
sRGB coverage (typical) 96%
NTSC coverage (typical) 72%
Display brightness (typical) 300 cd/m²
Colour gamut standard NTSC
ENERGY MANAGEMENT
Power consumption (typical) 18 W
Power supply type Internal
Power consumption (off) 0.3 W
Power consumption (standby) 0.5 W
AC input frequency 50/60 Hz
AC input voltage 100 - 240 V
Energy efficiency scale A to G
Energy efficiency class (SDR) E
Energy efficiency class (HDR) Not available
Energy consumption (SDR) per 1000 hours 18 kWh
ERGONOMICS
Cable lock slot Yes
Wall mountable Yes
Tilt angle range 22 - 4°
On Screen Display (OSD) Yes
Cable management Yes
Panel mounting interface 100 x 100 mm
On Screen Display (OSD) languages Czech, German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Russian
Tilt adjustment Yes
Cable lock slot type Kensington
VESA mounting Yes
MULTIMEDIA
RMS rated power 2 W
Built-in speaker(s) Yes
Built-in camera No
Number of speakers 2
OTHER FEATURES
Touchscreen No
PACKAGING CONTENT
Quick start guide Yes
PACKAGING DATA
Package weight 4.2 kg
Package depth 126 mm
Package height 405 mm
Package width 615 mm
Quick start guide Yes
Package type Box
PERFORMANCE
Flicker-free technology Yes
Low Blue Light technology Yes
VESA Adaptive Sync support Yes
PORTS & INTERFACES
HDMI ports quantity 1
HDMI version 1.4
HDMI Yes
HDCP Yes
DisplayPorts quantity 1
DisplayPort version 1.2
Headphone out Yes
Built-in USB hub Yes
USB hub version 2.0
WEIGHT & DIMENSIONS
Width (with stand) 538.5 mm
Height (with stand) 393 mm
Depth (with stand) 178.5 mm
Weight (with stand) 3 kg
