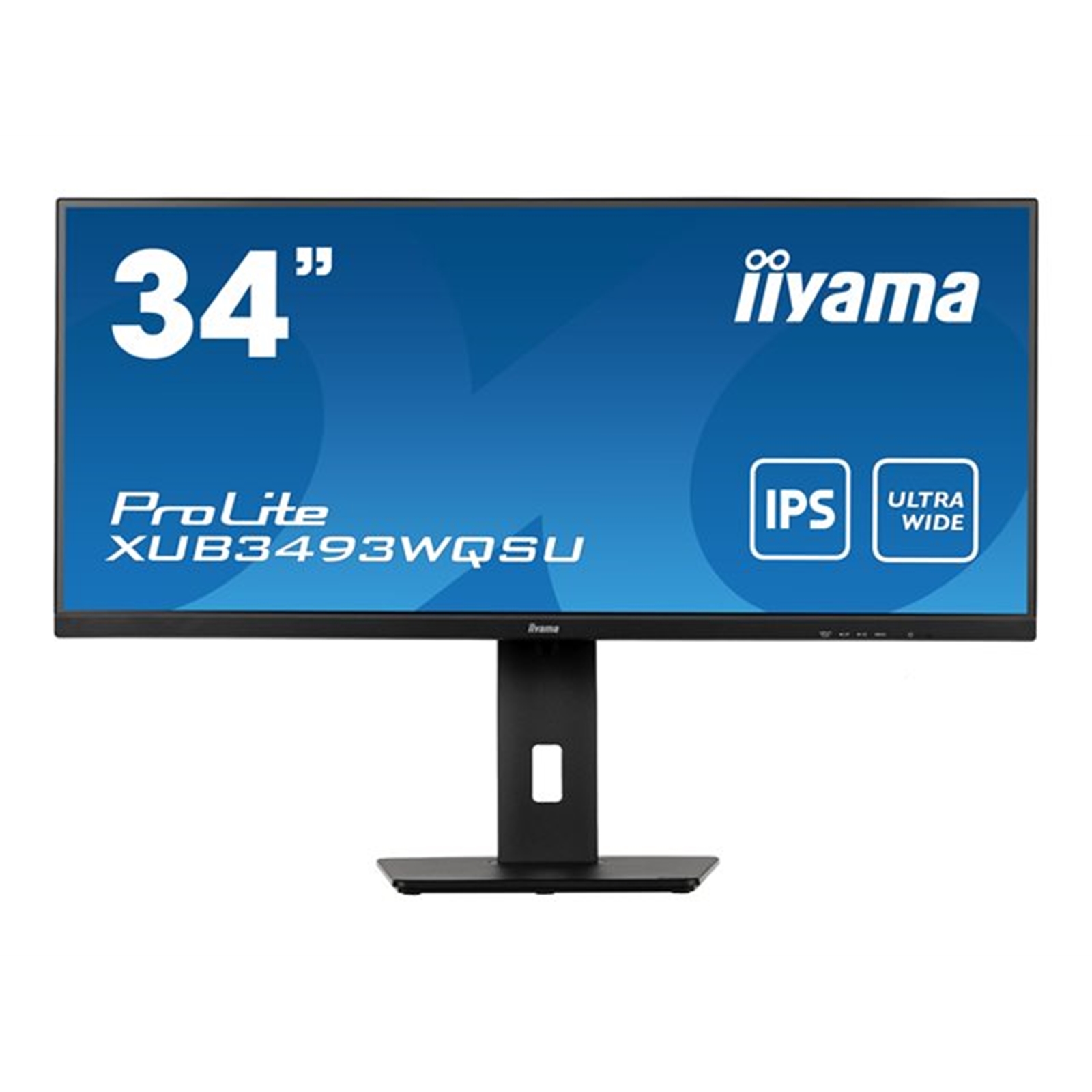

PROLITE XUB3493WQSU-B5
34 Inch IPS ultra-wide screen with height adjustable stand

ProLite XUB3493WQSU is a 34? LED monitor featuring the latest IPS Panel technology considered to be the best all round panel type. It offers accurate and consistent colour reproduction with wide viewing angles and a fast response time. UWQHD (Ultra Wide QHD) resolution offers an ultra wide (21:9) viewable area. The large amount of space and good pixel density offered by the size and resolution of this screen provide great potential on the desktop. Very suitable for those who want to use side-by-side applications, watch a movie shot in widescreen format or enrich their gaming experience.

The 150mm height-adjustable stand ensures you can adjust the screen position to your preferences, and the flicker-free panel with blue light reducer function reduces eye fatigue.

IPS TECHNOLOGY
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.

ULTRA WIDE - UWQHD
UWQHD (Ultra Wide QHD) resolution offers an ultra wide (21:9) viewable area.

PIP
PIP (Picture in Picture) function allows you to watch images coming from two different sources at the same time.

FREESYNC TECHNOLOGY
AMD FreeSync technology puts an end to choppy gameplay and broken frames with fluid, artifact-free performance at virtually any framerate.

ACR
Contrast Ratio is a measurement of the difference between the darkest black and the brightest white your monitor can display. Advanced Contrast Ratio is a feature that automatically adjusts contrast and brightness of the screen to assure perfect picture quality while watching films and playing games.

Specifications

Display Characteristics

Diagonal
34", 86.7cm

Panel
ADS-IPS, matte finish, haze 25%

Native Resolution
3440 x 1440 @75Hz (4.9 megapixel UWQHD)

Aspect Ratio
21:9

Panel Brightness
400 cd/m²

Static Contrast
1000:1

Advanced Contrast
80M:1

Response Time (MPRT)
4ms

Viewing Zone
horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°

Colour Support
16.7mln 8bit (sRGB: 100%, NTSC: 74%)

Horizontal Sync
30 - 115kHz

Viewable Area W x H
799.8 x 334.8mm, 31.5 x 13.2"

Pixel Pitch
0.233mm

Colour
matte, black

Interfaces / Connectors / Controls

Signal Input
HDMI x2 (v.2.0)
DisplayPort x1 (v.1.2)

USB HUB
x2 (v. 3.2 (Gen 1, 5Gbit; DC5V, 900mA))

HDCP
yes

Headphone Connector
yes

Features

Blue Light Reducer
yes

Flicker Free
yes

Adaptive Sync Support
HDMI & Display Port: 3440 x 1440 @48-75Hz

HDR
yes

OSD Languages
EN, DE, FR, ES, IT, PT, RU, JP, CZ, NL, PL

Control Buttons
Power, Menu, Right/ Volume, Left/ ECO, Input/ Exit

User Controls
picture (picture format, brightness, contrast, black tuner, sharpness, OD, ACR, Eco, X-Res technology), colour adjust (warm, normal, cool, user control, i-Style colour, blue light reducer), PiP/PbP (PiP/PbP mode, sub win input, PiP size, PiP position, swap), input select, audio (volume, mute, audio input), language, OSD settings (OSD H. position, OSD V. position, OSD background, OSD time out), setup menu (DP format, HDMI RGB range, HDR, FreeSync, opening logo, LED, auto power off, memory recall, information)

Speakers
2 x 5W

Convenience
Kensington-lock prepared, DDC/CI, Mac OSX

Mechanical

Display Position Adjustments
height, swivel, tilt

Height Adjustment
150mm

Swivel Stand
90°; 45° left; 45° right

Tilt Angle
23° up; 5° down

VESA Mounting
100 x 100mm

Cable Management System
yes

Accessories Included

Cables
power, USB, HDMI, DP

Other
quick start guide, safety guide

Power Management

Power Supply Unit
internal

Power Supply
AC 100 - 240V, 50/60Hz

Power Usage
43W typical, 0.5W stand by, 0.5W off mode

Sustainability

Regulations
TCO Certified, CE, TUV-Bauart, EAC, PSE, RoHS support, ErP, WEEE, VCCI, REACH, UKCA

Energy Efficiency Class (Regulation (EU) 2017/1369)
F

REACH SVHC
above 0.1%: Lead

Weight & Dimensions
Product dimensions W x H x D
817 x 422.5 (572.5) x 245.5mm
Box dimensions W x H x D
900 x 188 x 456mm
Weight (without box)
9.4kg
Weight (with box)
12.4kg
