Target Components

Tiny Packages that pack a punch

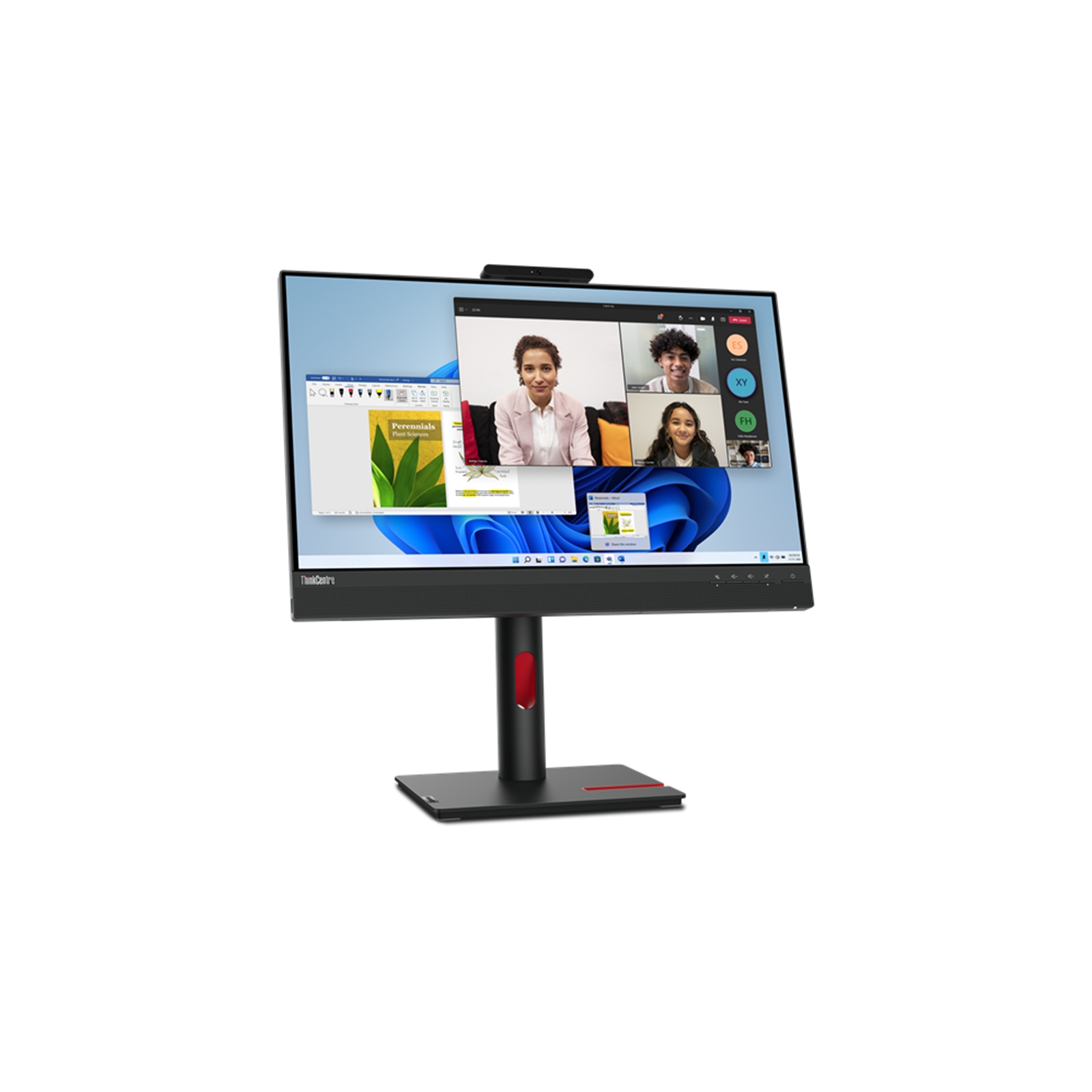

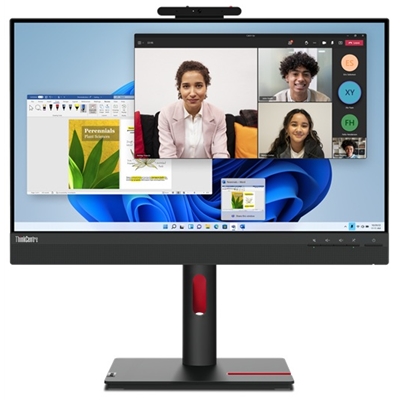

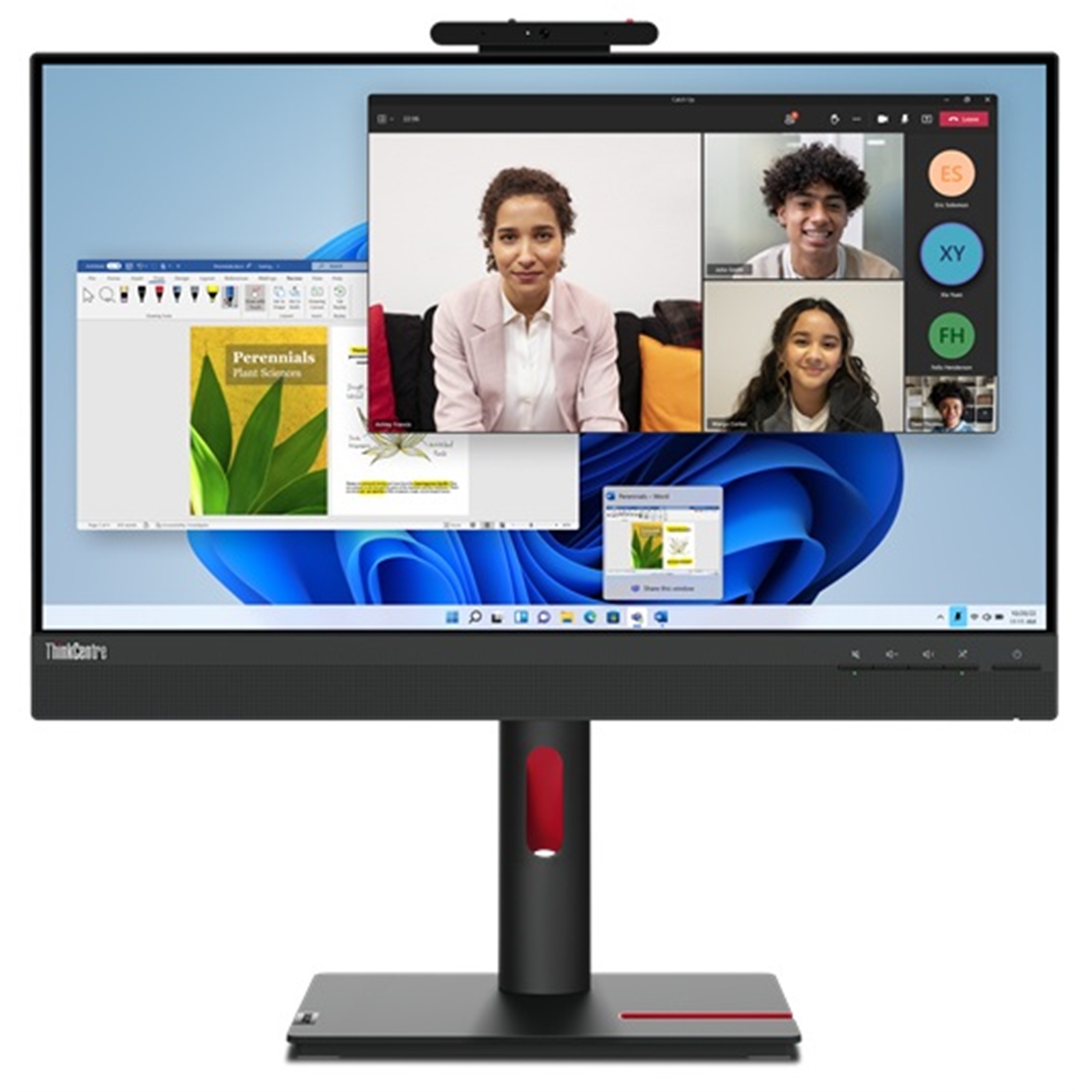

The TIO 24 Gen 5 is a modular device that supports Lenovo's range of ThinkCentre and ThinkStation Tiny Computers from 4th Gen. You can easily and quickly attach the Tiny to the monitor and secure them in a dedicated slot on the monitor's back, offering a clutterfree desk. An unchanged installation process ensures that you have a consistent and smooth experience when attaching Tiny PCs to the monitor. Connect multiple different devices such as laptops, towers, or notebooks using the available HDMI or DP ports. Easily secure both your TIO monitor and Tiny Computer with the Kensington lock for additional security.

Remote meetings at its core
The TIO 24 Gen 5 gives you plug-and-play functionality with Lenovo's Tiny PCs. A 1080p RGB webcam captures you accurately and two built-in 3W speakers help you listen to your colleagues clearly during meetings. Dedicated VoIP buttons make attending your meetings easier than ever. The menu Joystick allows you to tweak your screen's settings easily. A dedicated privacy shutter allows you to cover the camera for privacy once a meeting ends. The Smart Traffic Light indicator shows the status of an ongoing meeting to avoid potential disruptions.

Your partner as well as nature's
Experience clear and sharp detail, and a wide field of view on the monitor's 23.8-inch FHD In-Plane Switching panel that supports a 99% sRGB color gamut. During long hours of exposure, the Eyesafe 2.0 certified technology and Natural Low Blue Light technology reduces harmful blue light without any color distortion. The TIO 24 Gen 5 also eases your physical comfort with options to lift and lower its height to match your seating position. The monitor is packaged in recycled paper and comes with the option to select a CO2 offset service, which allows you to do your bit for the environment.

Features
• 23.8" FHD (1920x1080) IPS display, Anti-glare 16:9
• Extreme mode 4 ms response time
• (Optional) 10-point Capacitive Touch
• 1000:1, 99% sRGB, 8-bit
• -5° to +23.5° tilt, left & right 45 swivel, -5° to +90° pivot, up to 155mm lift stand
• Case colour - Black
• 3-year limited warranty

PERFORMANCE
Display Size - 23.8"
View Area - 527.0 x 296.4 mm (20.75 x 11.67 inches)
Panel - In-Plane Switching
Backlight - WLED
Aspect Ratio - 16:9
Resolution - 1920x1080
Pixel Pitch - 0.275 x 0.275 mm
Dot / Pixel Per Inch - 93 dpi
View Angle (H / V) - 178° / 178°
Response Time - 4ms (Extreme mode) / 6ms (Typical mode)
Colour Support - 16.7 Million
Refresh Rate - 60Hz
Brightness - 250 cd/m²
Contrast Ratio - 1000:1
Colour Gamut - 99% sRGB
Screen Surface Treatment - Anti-glare
Curvature - Flat Panel
Camera - FHD 1080p
Microphone - Integrated Microphone
Speakers - 3Wx2
Power Consumption (Typical / Maximum) - 14W / 34.0W
Power Adapter - 90W
Touchscreen - None
Smart System - None

DESIGN
Stand - Tilt, Swivel, Pivot, Height Adjust Stand
Case Colour - Black
Side Bezel Width - 2.0 mm
Mounting - Supports VESA mount 100mm
ThinkCentre M Series Support - Tiny Support
Pen - None
Dimensions (WxDxH) -
Lowest Position | 539.8 x 207.6 x 384.6 mm (21.25 x 8.17 x 15.14 inches)
Highest Position | 539.8 x 207.6 x 539.6 mm (21.25 x 8.17 x 21.24 inches)
Head Only | 539.8 x 72.8 x 367.6 mm (21.25 x 2.87 x 14.47 inches)
Packaging Dimensions (WxDxH) -
620 x 187 x 420 mm (24.41 x 7.36 x 16.54 inches)
Weight -
Monitor With Stand | 6.0 kg (13.2 lbs)
Monitor Head Only | 3.7 kg (8.2 lbs)
Packaging Weight - 9.5 kg (20.9 lbs)

CONNECTIVITY
USB Port - 1x USB 3.2 Gen 1, 1x USB-B 3.2 Gen 1 (USB upstream)
Video Connector - 1x DP 1.2, 1x HDMI® 1.4
Network Connectivity - None

SERVICE
Base Warranty - 3-year limited warranty

CERTIFICATIONS
Environmental Certification - ENERGY STAR® Certified, TCO 9.0, TCO Edge 2.0, EPEAT™ Gold, RoHS, EU Energy Level-D
Ergonomic Certification - Eyesafe® Display 2.0, TUV Low Blue Light (Hardware solution), TUV Rheinland® Eye Comfort
Sync Technology - None
Special Features -
Lenovo® ThinkColour (Lenovo® Accessories and Display Manager) Support
Lenovo® ThinkColour supports Windows® 10 & 11, Mac OS, and Windows® On Arm (functions vary across systems).
Lenovo® Accessories and Display Manager is formerly Lenovo® Display Control Center.
KVM Switch
Natural Low Blue Light

SOFTWARE
Operating System
Support Windows® 10, Windows® 11

ACCESSORIES
In the Box
Monitor with stand
Power adapter (90W)
Power cable (1.0 m)
Quick setup guide

MODEL INFORMATION
Product - ThinkCentre® Tiny-In-One 24 Gen 5 NonTouch
Model - 12NAGAT1UK
Machine Type - 12NA
Region - EMEA
EAN / UPC / JAN - 0196804349831 / 196804349831 / None
Announce Date - 2023-05-16
