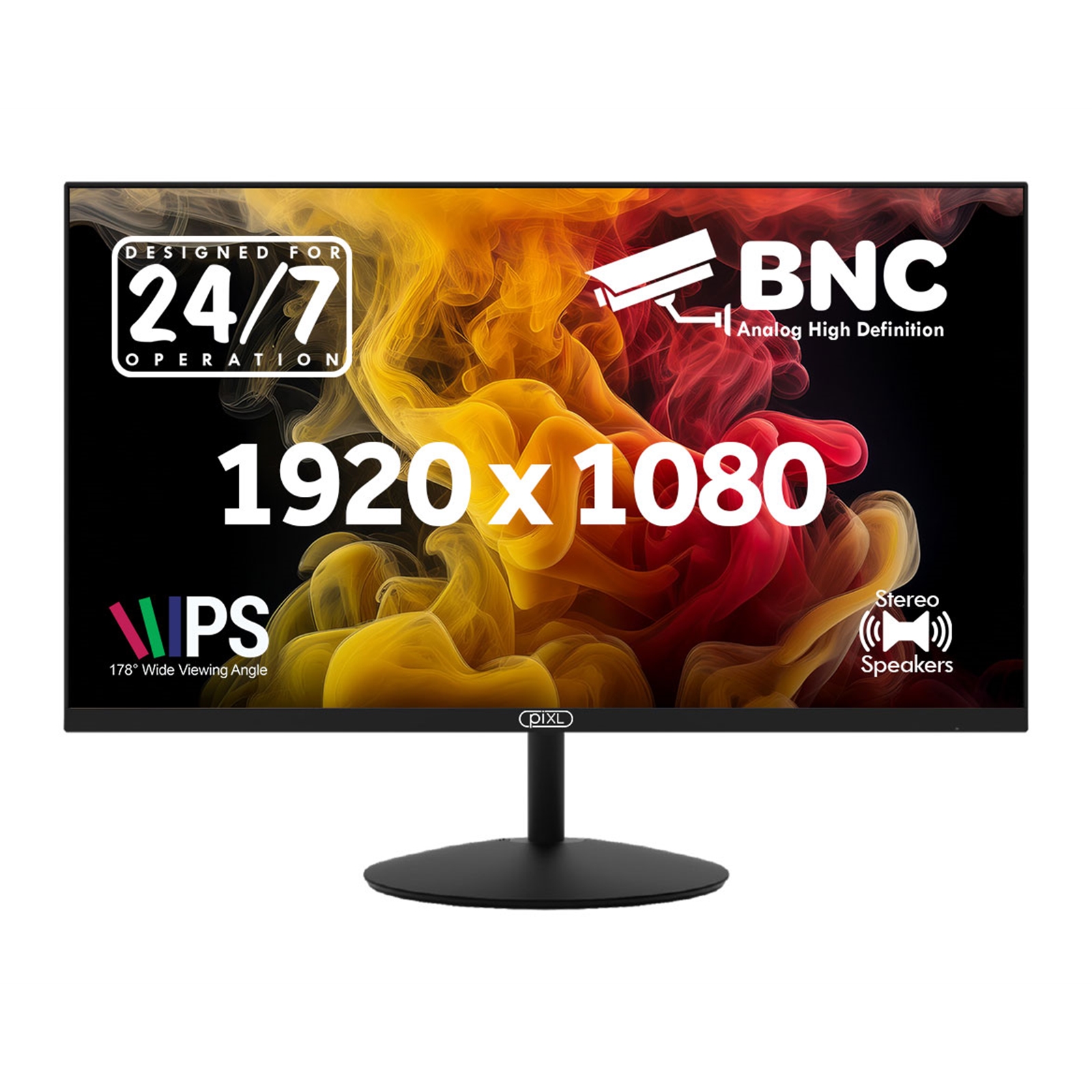

Experience crisp, reliable performance with the piXL 24-inch CCTV monitor - designed for both security and professional applications. Featuring a Full HD 1080p display, this monitor delivers sharp visuals and true-to-life colour accuracy, ensuring you never miss a detail. With versatile connectivity options including BNC, HDMI, and VGA, it easily integrates with CCTV systems, DVRs, and PCs alike.

Low-powered at only 18W, the piXL 24IVHBS is ideal for always-on 24/7 use without costing as much to run as a basic LED monitor. The IPS screen allows for 178-degree viewing angles, as well as crisp images, bright colours and dark, inky blacks for maximum detail.

Its broad compatibility allows for even Analog High Definition (AHD) signals, as well as standards like CVBS, TVI & CVI, so you can use it with your existing CCTV and security systems to provide reliable, real-time monitoring and recordings.

Built with a sleek, slim bezel and VESA mount compatibility, the monitor fits seamlessly into any workspace or surveillance setup. Energy-efficient technology and a durable design make it a dependable choice for 24/7 operation.

Model
24IVHBS

Screen Size
24"

Panel Type
IPS panel

Resolution
1920 x 1080
Full HD

Aspect Ratio
16:9

Response Time
5ms

Refresh Rate
60Hz

Dot Pitch
0.27 mm

Colour Support
16.7 million

Color gamut
81% NTSC (CIE1931)
80% Adobe RGB
84% DCI-P3
100% s RGB

Contrast Ratio
1000:1

Brightness
250 cd/m

Backlight
ELED

Viewing Angle
178°(H)/178°(V)

Stand
Tiltable

VESA
75 x 75mm

Ports & Connectors
Input: 1 x VGA (1920 x 1080@60 Hz), 1 x HDMI 1.4 (1920 x 1080@60 Hz), 1 x Audio, 1 x USB (update), 1 x BNC, 1 x AHD
Output: 1 x BNC, 1 x AHD

Power
Type - External Power Adapter
Voltage - DC-12V
Consumption - <30W
Stand-by - 0.5W

Colour
Black

Dimensions (H x W x D)
Dimension without base
(WxHxD) 320MM x 540MM x 51MM

Weight
Net Weight 3.5kg
Gross Weight 4.8kg

Package Contents
Monitor
HDMI cable, Power line, Manual

Warranty:

piXL 3-Year Limited Warranty

Warranty Length: 3 years

Warranty Type: Limited

Warranty Coverage: piXL's 3-year warranty covers manufacturing defects and faults. If a monitor becomes faulty within the first 14 days of an end-user purchasing it, we will replace it. If it becomes faulty after the first 14 days we may replace the product or repair it. The end user will need to return it to the reseller they purchased it from originally.

If dead pixels occur on the screen, there are a number of considerations before these will qualify as 'faulty'. piXL`s warranty covers any defects that exceed the defect specifications described below:

Either- A single dead pixel in the central portion of the screen
and/ or: 3 x white pixels or 3 x black pixels or a mixture of 5 x white and black pixels across all other areas or the screen.

Warranty Instructions: RESELLERS - please raise a customer service ticket or Return via Target.

END USERS - in the first instance, please return it to the reseller you originally purchased it. In the event that this is not possible, please use the Warranty Contact below.

Warranty Information: https://www.pixl-technology.co.uk/warranty

Warranty Contact: Contact Us

There are currently no data sheets available for this product.
