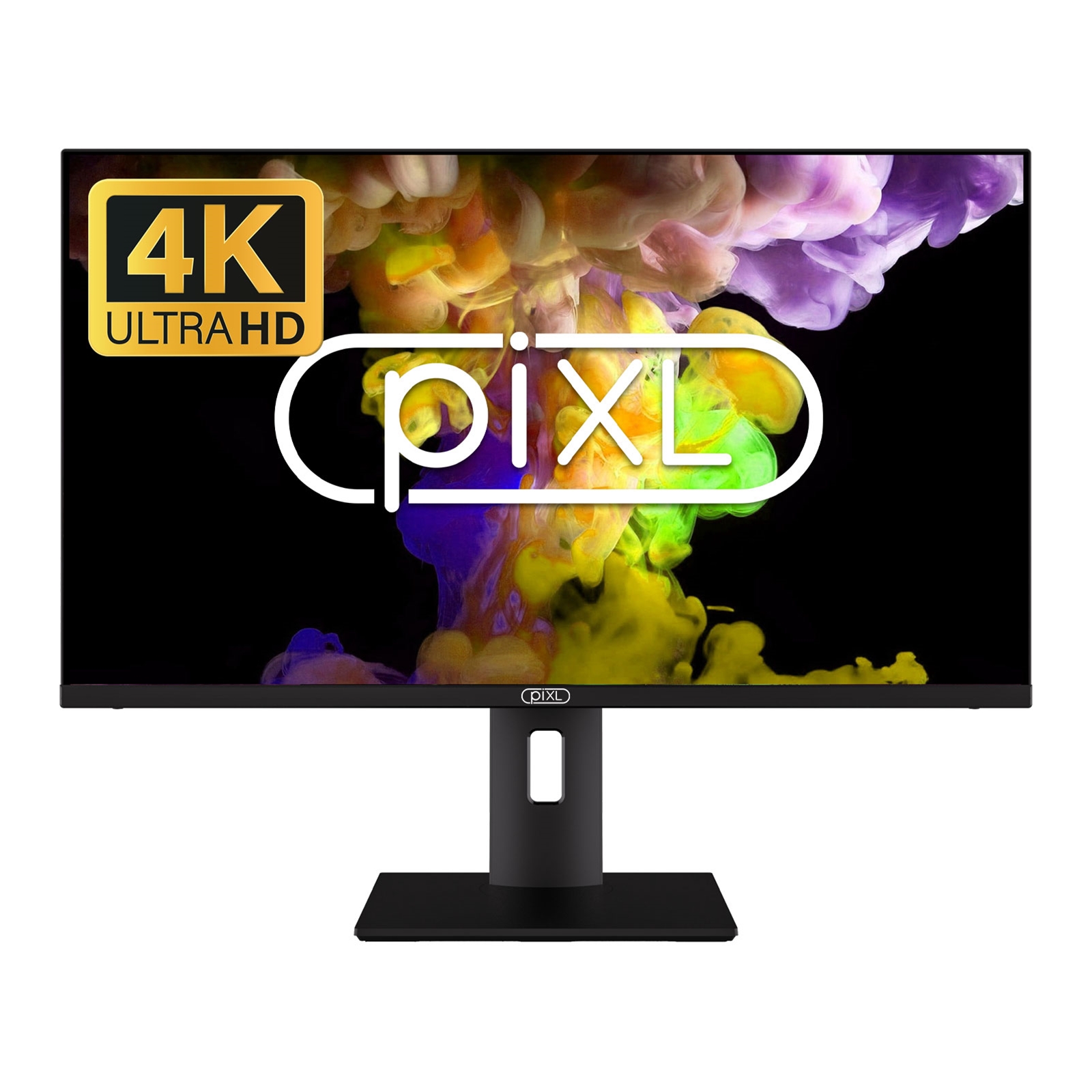

piXL CM28F10 28 Inch 60Hz 4K Widescreen Monitor with 3840 x 2160 Resolution, 5ms Response Time, 60Hz Refresh Rate, HDMI, DisplayPort & VESA Mount

Key Specifications
Screen Size (in)28
Max Resolution3840x2160
Refresh Rate60Hz
Response Time5ms
Display PortYes
Height AdjustableNo
Curved ScreenNo
/productImages/80/MOPIX-CM28F10.JPG
/productImages/80/198923.JPG
/productImages/80/198924.JPG
/productImages/80/198925.JPG
/productImages/80/213077.JPG
/productImages/80/213601.JPG
Manufacturer : PIXL
EAN : 5053118639896
Manufacturer Part Code : CM28F10
Weight : 6.2 kg
Login For Pricing

Key Specifications
Screen Size (in)28
Max Resolution3840x2160
Refresh Rate60Hz
Response Time5ms
Display PortYes
Height AdjustableNo
Curved ScreenNo
Manufacturer :
PIXL

EAN :
5053118639896

Manufacturer Part Code :
CM28F10

Weight :
6.2 kg
Recommended Products
1360Monitor Accessories & Stands
See details
1336Audio Visual Cables
See details
1356Speakers
See details

piXL CM28F10 28 Inch IPS Monitor, 4K, LED Widescreen, 2160p, 5ms Response Time, 60Hz Refresh, HDMI / Display Port, 16.7 Million Colour Support, VESA Mount, Black Finish, 3 Year Warranty
Experience colours and clarity like never before with the piXL CM28F10 4K monitor.

With 4x the number of pixels compared with full HD (8 million compared with 2 million on full HD), you'll see unbelievable detail through a much broader range of colours that provide huge depth and crisper images on a stylish, big screen.

The piXL CM28F10 features both HDMI and DisplayPort connections making it ideal for video and picture editing, watching Ultra HD/ 4K videos or web browsing with superior realism. And, thanks to its VESA mounting holes, you can attach it to a wallbracket or monitor arm for the ultimate 4K display.

piXL monitors also conform to the latest environmental standards and come with an impressive 3 year warranty as standard.

Model
CM28F10

Screen Size
28"

Panel Type
Innolux IPS panel

Viewing area
620.928×341.28 (mm)

Viewing angle
89/89/89/89

Dot pitch
0.160*0.160 mm

Display color
1.07 B(8-bit)

Color gamut
84% NTSC
82% Adobe RGB
100% SRGB

Resolution
3840 x 2160@60HZ

Aspect Ratio
16:9

Response Time
5ms

Refresh Rate
60 Hz

Colour Support
16.7 million

Contrast Ratio
100,000,000:1

Brightness
250 cd/m

Backlight
LED

Stand
Tiltable

VESA
100 x 100 mm

Ports & Connectors
HDMI 2.0 x 1
HDMI 1.4 x 1
Display Port x 1
Earphone x 1
DC Input x 1

Power
Type - External power
Consumption - <433
Stand-by - 0.5 W(saving power mode)

Environmental Certification
MPR II

Colours
Black

Dimensions (H x W x D)
690x198x428 mm

Weight
N.W 4.8 kgs
G.W 6.5 kgs

Package Contents
CM28F10 Widescreen LCD Monitor
Power Cord
Displayport Cable
Warranty:

piXL 3-Year Limited Warranty

Warranty Length: 3 years

Warranty Type: Limited

Warranty Coverage: piXL's 3-year warranty covers manufacturing defects and faults. If a monitor becomes faulty within the first 14 days of an end-user purchasing it, we will replace it. If it becomes faulty after the first 14 days we may replace the product or repair it. The end user will need to return it to the reseller they purchased it from originally.

If dead pixels occur on the screen, there are a number of considerations before these will qualify as 'faulty'. piXL`s warranty covers any defects that exceed the defect specifications described below:

  • Either- A single dead pixel in the central portion of the screen
  • and/ or: 3 x white pixels or 3 x black pixels or a mixture of 5 x white and black pixels across all other areas or the screen.

Warranty Instructions: RESELLERS - please raise a customer service ticket or Return via Target.

END USERS - in the first instance, please return it to the reseller you originally purchased it. In the event that this is not possible, please use the Warranty Contact below.

Warranty Information: https://www.pixl-technology.co.uk/warranty

Warranty Contact: Contact Us

DESIGN
Product colour Black
Market positioning Home
Detachable stand Yes
Front bezel colour Black
Illuminated stand No
DISPLAY
Pixel pitch 0.16 x 0.16 mm
Viewing angle, horizontal 178°
Viewing angle, vertical 178°
Viewable size, horizontal 62.1 cm
Viewable size, vertical 34.1 cm
Display diagonal 71.1 cm (28")
Response time 5 ms
Colour depth 8 bit
Display resolution 3840 x 2160 pixels
Supported graphics resolutions 3840 x 2160
Supported video modes 2160p
Touchscreen No
Contrast ratio (dynamic) 100000000:1
LED backlight Yes
Maximum refresh rate 60 Hz
Display technology LCD
Native aspect ratio 16:9
HD type 4K Ultra HD
Panel type IPS
Screen shape Flat
Display number of colours 1.07 billion colours
sRGB coverage (typical) 100%
Adobe RGB coverage 82%
NTSC coverage (typical) 84%
Display brightness (typical) 250 cd/m²
Colour gamut standard Adobe RGB, sRGB, NTSC
ENERGY MANAGEMENT
Power consumption (standby) 0.5 W
Power consumption (max) 43 W
ERGONOMICS
Plug and Play Yes
Wall mountable Yes
Panel mounting interface 100 x 100 mm
Tilt adjustment Yes
VESA mounting Yes
MULTIMEDIA
Built-in speaker(s) No
Built-in camera No
NETWORK
Bluetooth No
Wi-Fi No
OTHER FEATURES
Touchscreen No
Compliance certificates MPR II
PACKAGING CONTENT
Cables included Power, DisplayPort
Stand included Yes
PACKAGING DATA
Package weight 6.5 kg
Cables included Power, DisplayPort
Stand included Yes
PORTS & INTERFACES
Headphone outputs 1
DC-in jack Yes
HDMI ports quantity 2
HDMI version 1.4/2.0
HDMI Yes
DisplayPorts quantity 1
Headphone out Yes
Built-in USB hub No
TECHNICAL DETAILS
Compliance certificates MPR II
WEIGHT & DIMENSIONS
Width (with stand) 690 mm
Height (with stand) 428 mm
Depth (with stand) 198 mm
Weight (with stand) 4.8 kg
