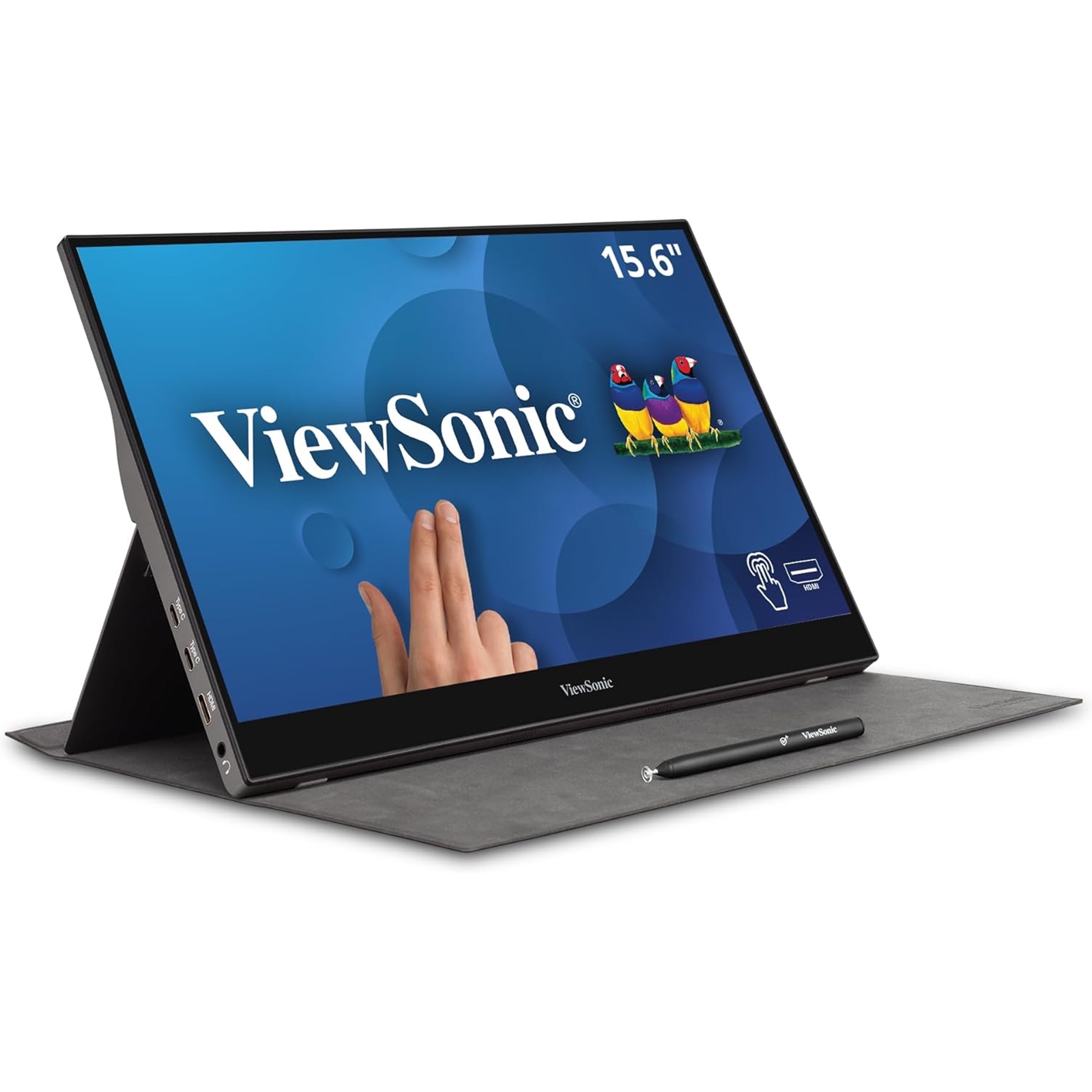

16" USB-C Multi-Touch Portable Monitor
The ViewSonic TD1655 is a portable 16" Full HD monitor with 10-point multitouch capability designed for dual-screen productivity beyond the office. Extend your display from phone, tablet, or laptop to a larger screen for seamless multitasking, personalised one-on-one presentation, or relaxed entertainment. The two universal USB-C connectors provide a one-cable solution for multimedia transfer and power charging. Tailor your work setup to your preferences with adjustable viewing angles and the option for both landscape and portrait display layouts. With a detachable magnetic anti-slip cover, metal case, and foldable aluminum stand designed for convenient mobility, enhance your mobile workstation anywhere, anytime.

Take Productivity with You
Stay productive wherever you are with an expanded screen real estate from your laptop, tablet or phone using the TD1655 portable monitor, perfect for multitasking and meetings on-the-go.

Effortless Portability
Designed to be thin and lightweight, this compact monitor can be easily carried around wherever you go without adding extra burden

Advanced Touch Capabilities and Screen Performance
Advanced Touch Capabilities and Screen Performance

Hassle-free Connectivity
Dual USB-C ports for all your connectivity needs, enabling smooth audio, video, and touch data transfer, as well as bi-directional power charging through a single cable.

Flexible Display Setup
Work in your preferred setup – the built-in foldable aluminum stand with a durable hinge, tilts up to 60 degrees for easy adjustment of viewing angles.

Landscape & Portrait Layout
Switch between landscape and portrait display orientations, with the portrait layout ideal for tasks like table reviewing, programming, photo editing, gaming, and more.

Expand your workspace to a second screen
Simply connect your laptop, smartphone or tablet to the monitor and experience a more productive work environment, easier web browsing and a more immersive viewing experience as you stream on the go.

Extra On-Carry Protection
A robust metal case with detachable magnetic cover protects the monitor from damage during transport and prevents sliding on slippery surfaces.

Certified Environmentally Sustainable
Environmentally conscious, this monitor adheres to the EPEAT® and ENERGY STAR® standards, saving energy cost and reducing environmental impact over its lifecycle.

Specification

Display Size (in.):
16

Viewable Area (in.):
15.6

Panel Type:
IPS Technology

Resolution:
1920 x 1080

Resolution Type:
FHD

Response Time (Typical GTG):
6.5ms

Refresh Rate (Hz):
60

Brightness
250 cd/m² (typ)

Ratio
Static Contrast Ratio: 800:1 (typ)
Dynamic Contrast Ratio: 50M:1

Pixel Size:
0.179 mm (H) x 0.179 mm (V)

Touch Screen:
Projected Capacitive, 10-point multi-touch

Connector
USB 3.2 Type C Up Stream; DisplayPort Alt mode : 2 (60W power charger)
3.5mm Audio Out: 1
Mini HDMI: 1
Power in: USB Type C (with video & data)

Power
Eco Mode (Conserve): 6W
Eco Mode (optimized): 6.9W
Consumption (typical): 8W
Consumption (max): 8.3W
Voltage: AC 100-240V
Stand-by: 0.5W
Power Supply: External Power Adaptor

Weight
Net (kg): 0.96
Net Without Stand (kg): 0.96
Gross (kg): 2.3

Dimensions (metric) (wxhxd)
Dimensions (imperial) (wxhxd)
Packaging (in.): 17.3 x 11.3 x 3.5
Physical (in.): 13.99 x 8.8 x 0.58
Physical Without Stand (in.): 13.99 x 8.8 x 0.58
Dimensions (metric) (wxhxd)
Packaging (mm): 440 x 288 x 89
Physical (mm): 355.46 x 223.44 x 14.7
Physical Without Stand (mm): 355.46 x 223.44 x 14.7

Ergonomics
Tilt (Forward/Back): 20� / 60�

Manufacturer's Website:

www.viewsoniceurope.com

Warranty:

2 Year Pickup, Repair and Return www.viewsoniceurope.com/uk/support/warranties/united-kingdom/ **RESELLERS**DOA unit - exchange or refund by issuing a ticket via https://www.viewsonic.com/uk/contact/.

DESIGN
Certification	cTUVus, FCC-B, ICES003, Energy Star 8.0, EPEAT Bronze, CEC, NRCan, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO
Product colour	Black, Silver
DISPLAY
Pixel pitch	0.179 x 0.179 mm
Contrast ratio (typical)	800:1
Horizontal scan range	15 - 82 kHz
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Vertical scan range	50 - 75 Hz
Display diagonal	39.6 cm (15.6")
Contrast ratio (typical)	5 - 90%
Display brightness	250 cd/m²
Response time	6.5 ms
Display resolution	1920 x 1080 pixels
Display diagonal (metric)	39.6 cm
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 720 x 480, 720 x 576, 800 x 600 (SVGA), 832 x 624, 1024 x 768 (XGA), 1152 x 870, 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1280 x 960, 1360 x 768 (WXGA), 1366 x 768, 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
Touchscreen	Yes
Contrast ratio (dynamic)	80000000:1
Maximum refresh rate	60 Hz
Touch technology	Multi-touch
Touchscreen technology	Projected capacitive system
Touchscreen type	Multi-user
Display technology	LED
Number of simultaneous touchpoints	10
Native aspect ratio	16:9
HD type	Full HD
Panel type	IPS
Screen shape	Flat
Display number of colours	262144 colours
ENERGY MANAGEMENT
Power consumption (typical)	8 W
Power supply type	AC
Power consumption (standby)	0.5 W
AC input frequency	50 - 60 Hz
AC input voltage	100-240 V
Energy efficiency class (SDR)	C
Energy consumption (SDR) per 1000 hours	8 kWh
European Product Registry for Energy Labelling (EPREL) code	385512
ERGONOMICS
Wall mountable	No
Tilt angle range	-20 - 60°
Tilt adjustment	Yes
LOGISTICS DATA
Pallet gross width	120 cm
Pallet gross length	100 cm
Pallet gross height	196.8 cm
Products per master (outer) case	4 pc(s)
Harmonized System (HS) code	8528521000
MULTIMEDIA
Built-in microphone	No
RMS rated power	1.6 W
Built-in speaker(s)	Yes
Built-in camera	No
Number of speakers	2
OPERATIONAL CONDITIONS
Operating relative humidity (H-H)	20 - 90%
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90%
OTHER FEATURES
Weight	1 kg
Certification	cTUVus, FCC-B, ICES003, Energy Star 8.0, EPEAT Bronze, CEC, NRCan, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO
Display viewable area (HxV)	344 x 194 mm
Touchscreen	Yes
Touchscreen type	Multi-user
Number of simultaneous touchpoints	10
Compliance certificates	CE, REACH, RoHS
PACKAGING CONTENT
Cables included	Mini-HDMI, USB Type-C, USB Type-C to USB Type-A
PACKAGING DATA
Package weight	2.3 kg
Cables included	Mini-HDMI, USB Type-C, USB Type-C to USB Type-A
Package depth	288 mm
Package height	89 mm
Package width	440 mm
PERFORMANCE
Windows operating systems supported	Windows 10
Mac operating systems supported	Yes
NVIDIA G-SYNC	No
AMD FreeSync	No
PORTS & INTERFACES
Audio output	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	2
Built-in USB hub	Yes
USB upstream port type	USB Type-C
SUSTAINABILITY
Sustainability certificates	EPEAT Bronze
European Product Registry for Energy Labelling (EPREL) code	385512
TECHNICAL DETAILS
Compliance certificates	CE, REACH, RoHS
WEIGHT & DIMENSIONS
Width (with stand)	355 mm
Height (with stand)	223 mm
Depth (with stand)	16 mm
Weight (with stand)	1 kg
