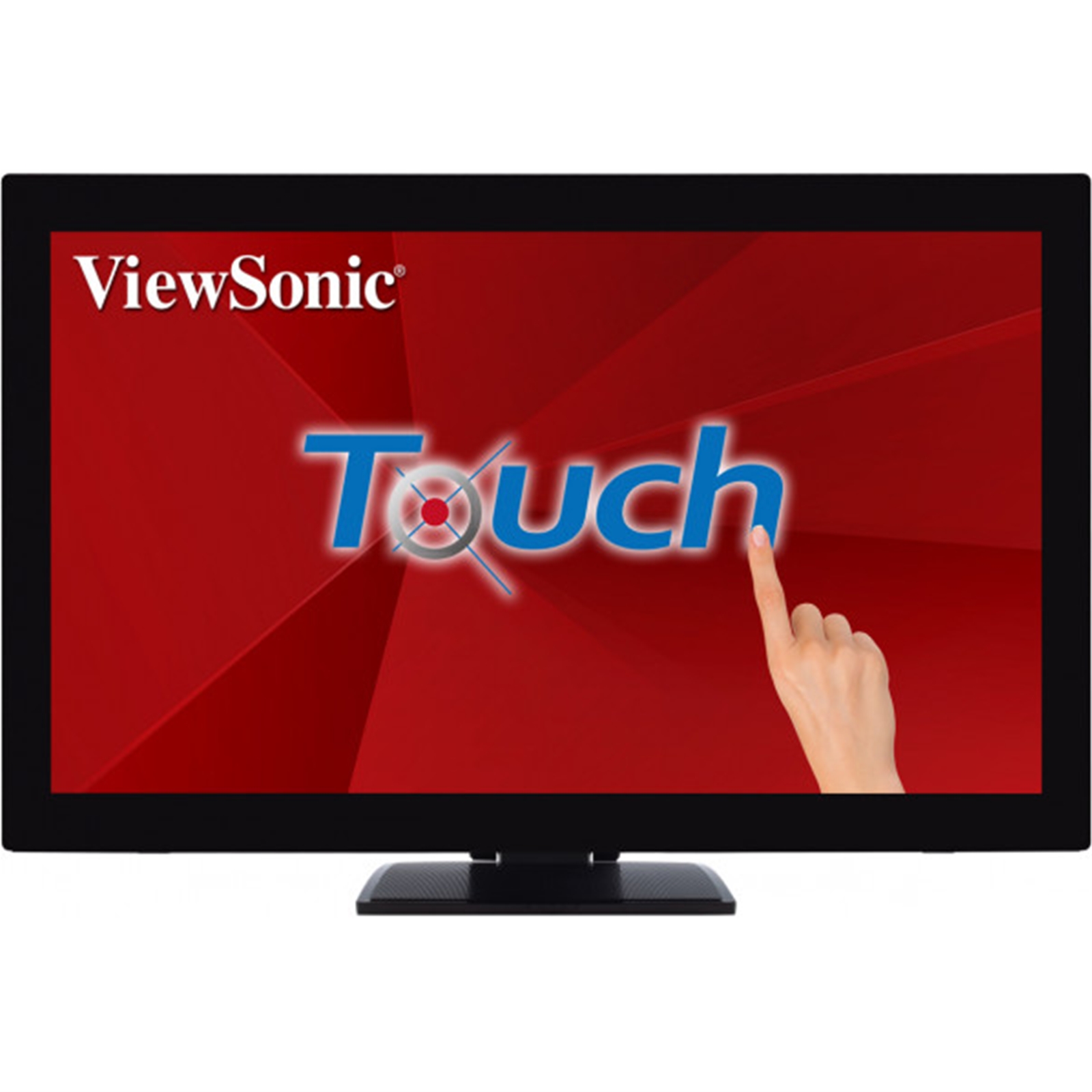

ViewSonic TD2760 27 Inch Touchscreen Monitor, Full HD (1080p) @ 60 Hz, MVA, 230 cd/mē, 3000:1, 12 ms, HDMI, VGA, DisplayPort, Speakers

Key Specifications
/productImages/80/MOVIE-TD2760_89326373.JPG
/productImages/80/MOVIE-TD2760_51149713.jpg
/productImages/80/MOVIE-TD2760_51151385.jpg
/productImages/80/MOVIE-TD2760_51151389.jpg
/productImages/80/MOVIE-TD2760_51151393.jpg
/productImages/80/MOVIE-TD2760_51151394.jpg
/productImages/80/MOVIE-TD2760_51151395.jpg
/productImages/80/MOVIE-TD2760_51151396.jpg
Manufacturer :
EAN : 0766907002775
Manufacturer Part Code : TD2760
Weight : 0 kg
Login For Pricing

Key Specifications
Manufacturer :

EAN :
0766907002775

Manufacturer Part Code :
TD2760

Weight :
0 kg
Recommended Products
1360Monitor Accessories & Stands
See details
1336Audio Visual Cables
See details
1356Speakers
See details

The ViewSonic® TD2760 is an ideal solution for both commercial and consumer touch-screen applications. With an intuitive 10-point multi-touch display and a Full 1080p HD resolution, the 27-inch TD2760 delivers a versatile solution for use in the office or at home, as well as for use as an information kiosk in public areas, retail, and corporate sectors. SuperClear® IPS Panel technology with ultra-wide viewing angles and 50M:1 MEGA Dynamic Contrast Ratio bring greater definition and clarity to multimedia content. For added convenience, cross-platform compatibility works with operating systems such as Windows 10, Linux, Chrome, and Android. Built-in connectivity options include DisplayPort, HDMI, and VGA ports along with a VESA compatible mount design, offering additional convenience for use as a wall-mount display. With serial port RS232 and HDMI CEC, the TD2760 can directly control connected devices. Even more, the ergonomic stand makes it easy for the user to tilt, raise, and lay the monitor flat for the most natural position, and create a comfortable working environment. Lastly, low power consumption with ENERGY STAR certification saves energy costs while reducing carbon emissions.

10-POINT MULTI-TOUCH
With 10-point multi-touch capabilities, multiple users can simultaneously write or draw on the display's surface using styluses or their fingers – or both at the same time.

SUPERCLEAR ® MVA PANEL TECHNOLOGY
Enjoy accurate and vivid colors with consistent levels of brightness no matter the vantage point. With SuperClear MVA panel technology, this monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the side.

ERGONOMIC DUAL-HINGE DESIGN
A dual-hinge stand allows the screen to be tilted and adjusted, or rest flat on a desk or table. This sturdy ergonomic design maximizes comfort and productivity, and makes this touch display well suited to a variety of touch scenarios in the home, school or office.

VERSATILE CONNECTIVITY
DisplayPort, HDMI, and VGA inputs give you the freedom to connect your display to a variety of devices.

CONTROL MULTIPLE DEVICES
RS232 offers local control for set-top boxes and other RS232 connected devices, directly with the display's remote controller. HDMI CEC functionality offers local control of DVD players, sound systems, and other HDMI connected devices, directly with the display's remote controller.
Warranty:
DESIGN
Certification MX-CoC, Mexico Energy, CE, CE EMC, CB
Product colour Black
Glass thickness 1.88 mm
DISPLAY
Pixel pitch 0.311 x 0.311 mm
Contrast ratio (typical) 3000:1
Horizontal scan range 15 - 90 kHz
Viewing angle, horizontal 178°
Viewing angle, vertical 178°
Aspect ratio 16:9
Vertical scan range 50 - 76 Hz
Viewable size, horizontal 59.8 cm
Viewable size, vertical 33.6 cm
Display diagonal 68.6 cm (27")
Display brightness 300 cd/m²
Response time 6 ms
Display resolution 1920 x 1080 pixels
Separate H/V sync Y
Display diagonal (metric) 68.58 cm
Touchscreen Y
Contrast ratio (dynamic) 50000000:1
LED backlight Y
Backlight type LED
Touch technology Multi-touch
Touchscreen technology Projected capacitive system
Touchscreen type Multi-user
Display technology LED
Anti-glare screen Y
Number of simultaneous touchpoints 10
Native aspect ratio 16:9
HD type Full HD
Panel type VA
Screen shape Flat
Display number of colours 16.78 million colours
Surface hardness 6H
ENERGY MANAGEMENT
Power consumption (typical) 26 W
Power supply type AC
Power consumption (off) 0.3 W
Power consumption (standby) 0.3 W
AC input frequency 50/60 Hz
AC input voltage 100 - 240 V
Energy efficiency class (SDR) F
Energy consumption (SDR) per 1000 hours 19 kWh
ERGONOMICS
Cable lock slot Y
Wall mountable Y
Tilt angle range -4 - 90°
On Screen Display (OSD) Y
Panel mounting interface 100 x 100 mm
Number of OSD languages 14
Tilt adjustment Y
Cable lock slot type Kensington
VESA mounting Y
LOGISTICS DATA
Harmonized System (HS) code 85285210
MULTIMEDIA
Built-in microphone N
RMS rated power 4 W
Built-in speaker(s) Y
Built-in camera N
Number of speakers 2
OPERATIONAL CONDITIONS
Operating relative humidity (H-H) 20 - 90%
Operating temperature (T-T) 0 - 40 °C
OTHER FEATURES
Certification MX-CoC, Mexico Energy, CE, CE EMC, CB
Mean time between failures (MTBF) 30000 h
Connection to PC Y
Touchscreen Y
Accessories included Power Cable, VGA Cable, HDMI Cable, USB Cable, Audio Cable
Touchscreen type Multi-user
Number of simultaneous touchpoints 10
PACKAGING CONTENT
Quick start guide Y
PACKAGING DATA
Package weight 10.2 kg
Package depth 204 mm
Package height 525 mm
Package width 753 mm
Quick start guide Y
PERFORMANCE
NVIDIA G-SYNC N
AMD FreeSync N
PORTS & INTERFACES
Audio input 1
Audio output 1
VGA (D-Sub) ports quantity 1
RS-232 ports 1
HDMI ports quantity 1
HDMI version 1.4
HDMI Y
HDCP Y
DisplayPorts quantity 1
DisplayPort version 1.2
Built-in USB hub Y
USB hub version 3.2 Gen 1 (3.1 Gen 1)
USB upstream port type USB Type-B
Number of upstream ports 1
USB Type-A downstream ports quantity 2
Number of USB Type-B upstream ports quantity 1
WEIGHT & DIMENSIONS
Width (with stand) 660 mm
Height (with stand) 443 mm
Depth (with stand) 239 mm
Weight (without stand) 5.5 kg
Height (without stand) 41 cm
Width (without stand) 66 cm
Depth (without stand) 5.8 cm
Weight (with stand) 7.9 kg
