Target Components

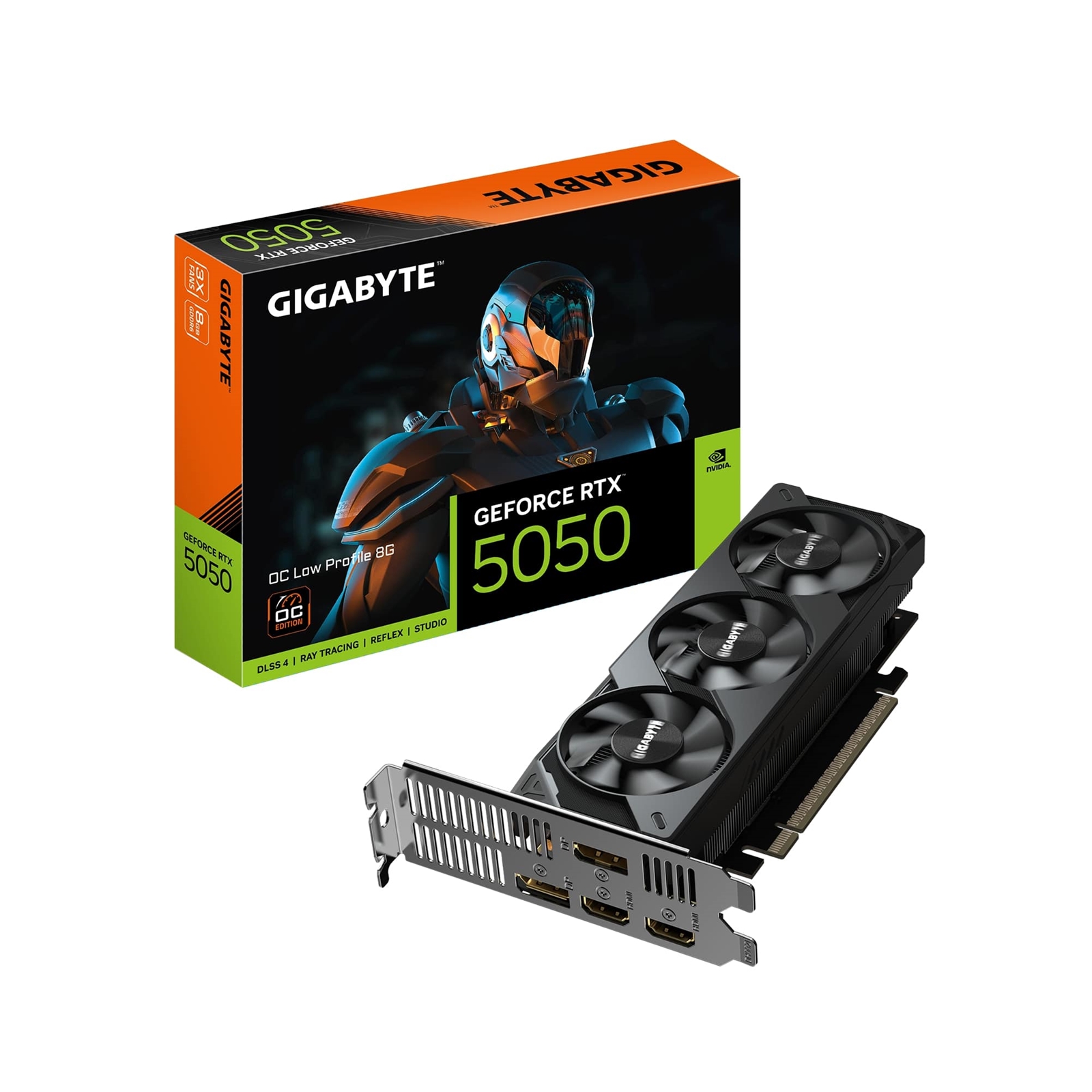

Gigabyte GeForce RTX 5050 OC Low Profile 8G

Features

Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX 5050
Integrated with 8GB GDDR6 128bit memory interface
Low Profile Design with 182mm card length
Server-grade Thermal conductive gel
Graphene Nano Lubricant
Supports up to 4 displays
CORE CLOCK- 2587 MHz (Reference card : 2572MHz)

The Ultimate Platform for Gamers and Creators

Fifth-Gen Tensor Cores
Max AI performance with FP4 and DLSS 4

New Streaming Multiprocessors
Optimized for neural shaders

Fourth-Gen Ray Tracing Cores
Built for Mega Geometry

GIGABYTE CUSTOM-DESIGNED COOLING SYSTEM
GIGABYTE's custom-designed cooling system ensures efficient heat dissipation, featuring server-grade thermal conductive gel, a copper plate with direct GPU contact, and composite copper heat pipes. These elements facilitate enhanced heat transfer to the heatsink, enabling higher performance at lower temperatures.

SERVER-GRADE THERMAL CONDUCTIVE GEL
To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.

GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

COPPER PLATE & COMPOSITE COPPER HEAT PIPE
The copper plate directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink

EXCELLENCE IN ESSENTIAL

LOW PROFILE DESIGN
At just 182mm in length, the card is perfect for compact builds. An additional low-profile bracket is included for seamless adaptability to different build needs.

AMPLE CONNECTIVITY
Enjoy versatile display options with two DisplayPorts and two HDMI ports, supporting up to four displays simultaneously. Meets the demands of multi-display setups, high-resolution applications, and delivers an ultimate gaming performance experience.

SUPERIOR CRAFTSMANSHIP

ULTRA DURABLE

ULTRA COOLING - Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.

LOW POWER LOSS - Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.

LONGER LIFE - Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan

FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

POWER THROUGH THE GAME
GIGABYTE offers the best power supply solutions for your graphics cards. You can choose either the AORUS series or the UD series to power your graphics card.

GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.

Specifications

Graphics Processing
GeForce RTX 5050

Core Clock
2587 MHz (Reference card : 2572MHz)

CUDA Cores
2560

Memory Clock
20 Gbps

Memory Size
8 GB

Memory Type
GDDR6

Memory Bus
128 bit

Card Bus
PCI-E 5.0

Digital max resolution
7680x4320

Multi-view
4

Card size
L=182 W=69 H=36 mm

PCB Form
ATX

DirectX
DirectX 12 API

OpenGL
4.6

Recommended PSU
550W

Power Connectors
8 Pin*1

Output
DisplayPort 2.1b *1
DisplayPort 1.4a *1
HDMI 2.1b *2

Accessories
1. Quick guide
2. Low Profile Bracket
