| Chipset Manufacturer | Nvidia |
| Chipset Series | RTX |
| Chipset | RTX5060Ti |
| Form Factor | 3x ATX |
| Memory | 8GB |
| Fans | 3 |
| RGB | Yes |

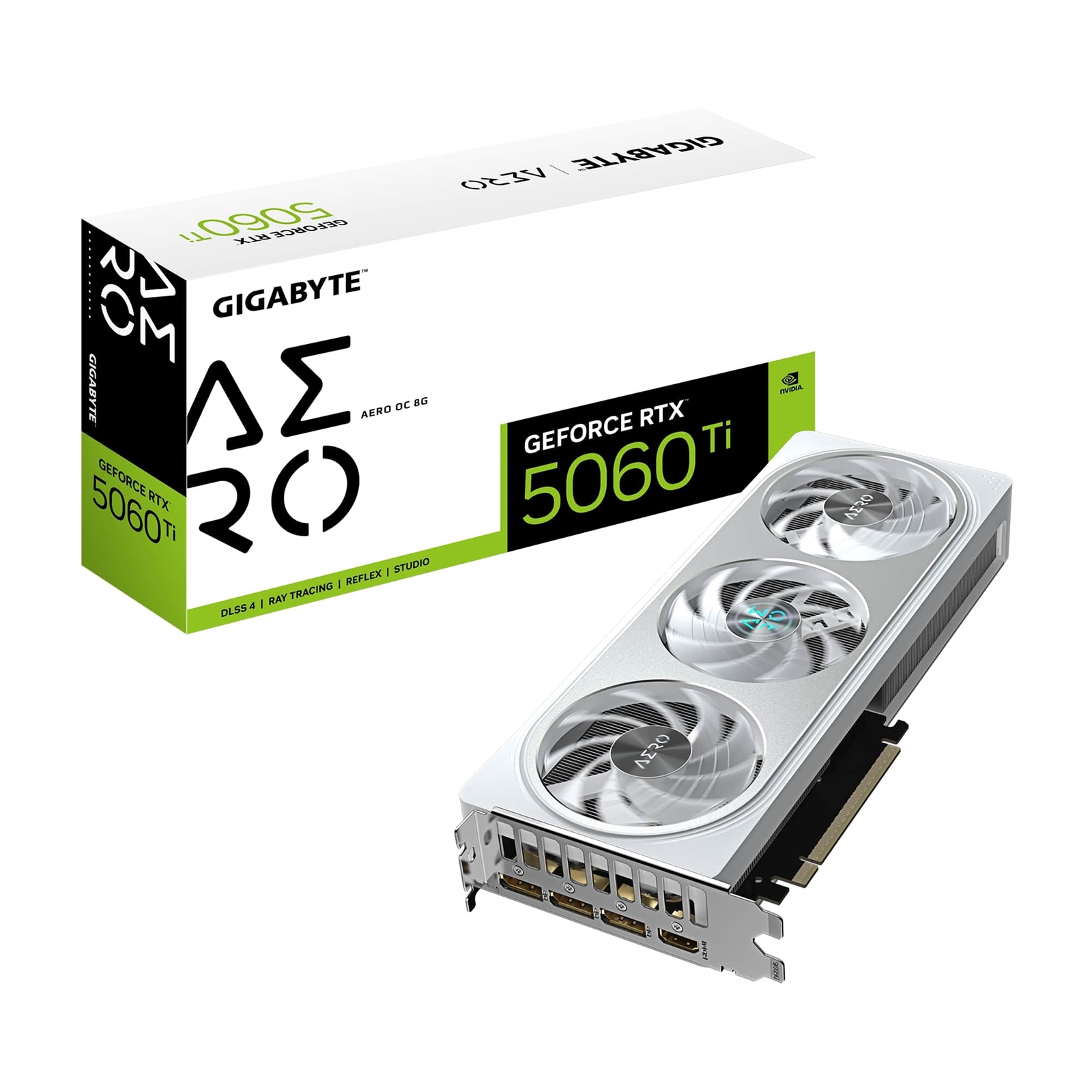

GeForce RTX 5060 Ti AERO OC 8GB
FEATURES
Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX 5060 Ti
Integrated with 8GB GDDR7 128bit memory interface
WINDFORCE cooling system
Hawk fan
Server-grade Thermal conductive gel
RGB Lighting
Dual BIOS (Performance / Silent)
Reinforced structure
CORE CLOCK
2647 MHz (Reference card :2572 MHz)
Graphics Processing
GeForce RTX 5060 Ti
Core Clock
2647 MHz (Reference card :2572 MHz)
CUDA Cores
4608
Memory Clock
28 Gbps
Memory Size
8 GB
Memory Type
GDDR7
Memory Bus
128 bit
Card Bus
PCI-E 5.0
Digital max resolution
7680x4320
Multi-view
4
Card size
L=281 W=117 H=40 mm
PCB Form
ATX
DirectX
DirectX 12 API
OpenGL
4.6
Recommended PSU
650W
Power Connectors
8 Pin*1
Output
DisplayPort 2.1b *3
HDMI 2.1b *1
Accessories
Quick guide
Gigabyte 3-Year Return-To-Base Warranty
Warranty Length: 3 years
Warranty Type:Return-To-Base
Warranty Coverage: Gigabyte's 3-year warranty includes a 30-day DOA period covering manufacturing defects and faults. If a product becomes faulty within the first 30 days of purchase, it can be returned to Target under the 30-Day DOA agreement, at which point we will replace it where possible, or offer account credit. If it becomes faulty after the first 30 days the product will be repaired or replaced with a graded unit. Account credit will be unavailable outside of the 30-day DOA agreement. The end user will need to return it to the reseller they purchased it from originally. If the unit is found faulty within the first 30 days of purchase, it can be returned to the reseller to claim under DOA with Target - a proof of end-user purchase WILL be required.
Warranty Instructions: RESELLERS - please raise a Target RMA.
END USERS - in the first instance, please return it to the reseller you originally purchased it. Target is unable to deal with end-user warranty issues. In the event an end-user is unable to contact the reseller, they must contact Gigabyte directly via Gigabyte Returns.
Warranty Information: https://www.gigabyte.com/uk/Support/Consumer/Warranty
Warranty Contact: Gigabyte Returns
| DESIGN | |
|---|---|
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of slots | 2 |
| Product colour | White |
| Number of fans | 3 fan(s) |
| Cooling type | Active |
| Cooling technology | GIGABYTE WINDFORCE 3X | ENERGY MANAGEMENT |
| Minimum system power supply | 650 W |
| Supplementary power connectors | 1x 8-pin |
| Thermal Design Power (TDP) | 135 W | LOGISTICS DATA |
| Products per shipping (inner) case | 1 pc(s) | MEMORY |
| Graphics card memory type | GDDR7 |
| Data transfer rate | 28 Gbit/s |
| Memory bus | 128 bit |
| Memory clock speed | 28000 MHz |
| Discrete graphics card memory | 8 GB | PACKAGING DATA |
| Package weight | 1.29 kg |
| Package depth | 354 mm |
| Package height | 75 mm |
| Package width | 182.5 mm |
| Package type | Box | PERFORMANCE |
| TV tuner integrated | No |
| DirectX version | 12.0 |
| OpenGL version | 4.6 |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
| Warranty period | 3 year(s) |
| Overclocked (OC) edition | Yes | PORTS & INTERFACES |
| Interface type | PCI Express x16 5.0 |
| Interface type | PCI Express x8 5.0 |
| DVI-I ports quantity | 0 |
| DVI-D ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1b |
| DisplayPorts quantity | 3 |
| Mini HDMI ports quantity | 0 |
| Mini DisplayPorts quantity | 0 |
| DisplayPort version | 2.1b |
| Thunderbolt 3 ports quantity | 0 | PROCESSOR |
| Processor frequency | 2647 MHz |
| Graphics processor | GeForce RTX 5060 Ti |
| Maximum resolution | 7680 x 4320 pixels |
| Parallel processing technology support | Not supported |
| Maximum displays per videocard | 4 |
| CUDA | Yes |
| CUDA cores | 4608 |
| Graphics processor family | NVIDIA | TECHNICAL DETAILS |
| Warranty period | 3 year(s) | WEIGHT & DIMENSIONS |
| Weight | 820 g |
| Height | 117 mm |
| Depth | 40 mm |
| Length | 281 mm |
