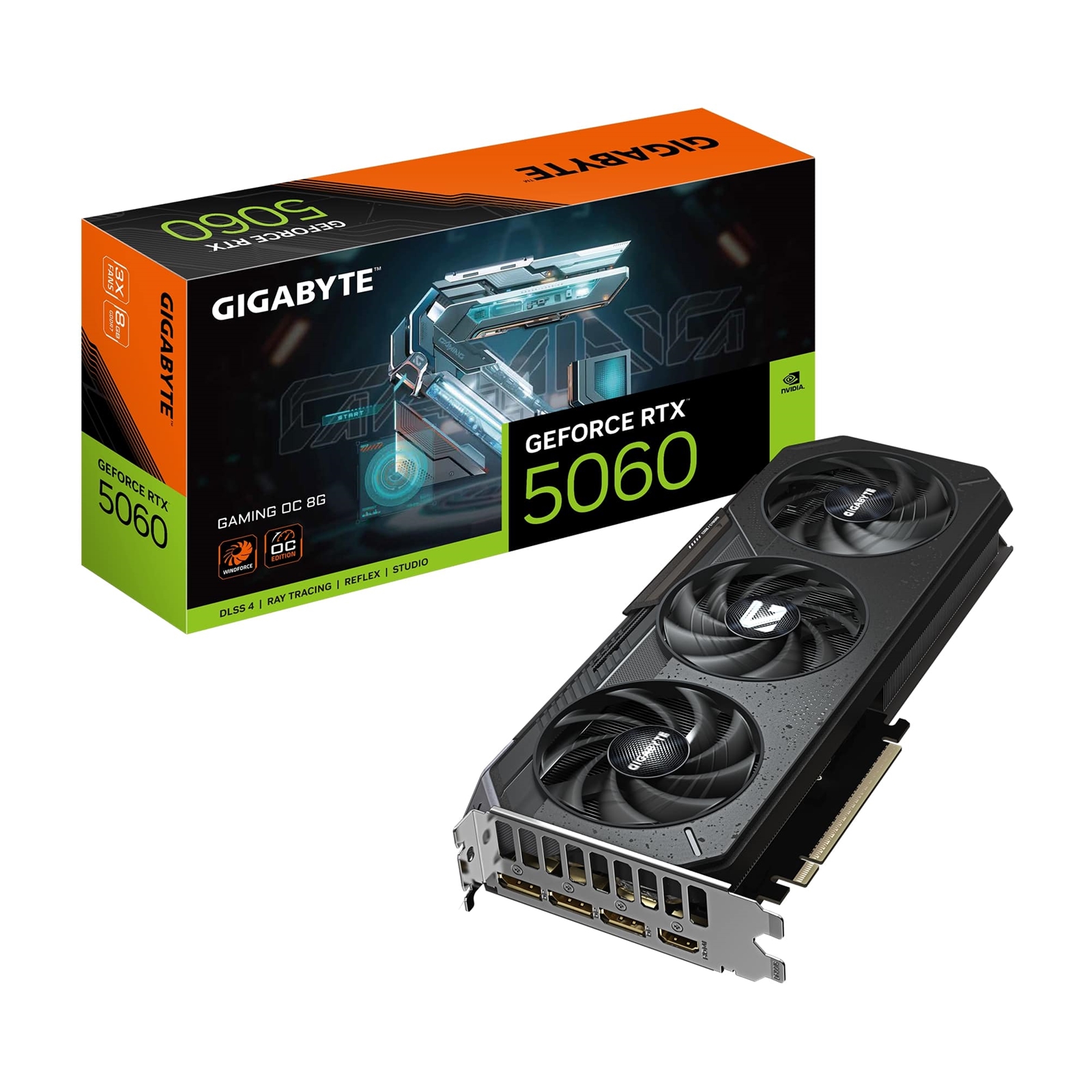

Gigabyte NVIDIA GeForce RTX 5060 Gaming OC 8GB GDDR7 Graphics Card, 3840 CUDA Cores, 2595 MHz Core Clock, Triple Fan, RGB, 3x DisplayPorts / 1x HDMI Ports

Key Specifications
Chipset ManufacturerNvidia
Chipset SeriesRTX
ChipsetRTX5060
Form Factor3 x ATX
Memory8GB
Fans3
RGBYes
/productImages/80/GRGIG-N5060GOC.jpg
/productImages/80/209300.JPG
/productImages/80/209301.JPG
/productImages/80/209302.JPG
/productImages/80/209303.JPG
/productImages/80/209304.JPG
/productImages/80/209305.JPG
/productImages/80/209306.JPG
/productImages/80/209307.JPG
/productImages/80/209308.JPG
Manufacturer : GIGABYTE
EAN : 4719331356408
Manufacturer Part Code : GV-N5060GAMING OC-8GD
Weight : 1.1 kg
Login For Pricing

Key Specifications
Chipset ManufacturerNvidia
Chipset SeriesRTX
ChipsetRTX5060
Form Factor3 x ATX
Memory8GB
Fans3
RGBYes
Manufacturer :
GIGABYTE

EAN :
4719331356408

Manufacturer Part Code :
GV-N5060GAMING OC-8GD

Weight :
1.1 kg
Recommended Products
1289Motherboards
See details
1282Case Cooling
See details
1284Power Supplies
See details

GeForce RTX 5060 GAMING OC 8G

FEATURES
Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX 5060
Integrated with 8GB GDDR7 128bit memory interface
WINDFORCE cooling system
Hawk fan
Server-grade Thermal conductive gel
RGB lighting
Dual BIOS (Performance / Silent)
Reinforced structure

CORE CLOCK
2595 MHz (Reference card : 2497MHz)

Graphics Processing
GeForce RTX 5060

Core Clock
2595 MHz (Reference card : 2497MHz)

CUDA Cores
3840

Memory Clock
28 Gbps

Memory Size
8 GB

Memory Type
GDDR7

Memory Bus
128 bit

Card Bus
PCI-E 5.0

Digital max resolution
7680x4320

Multi-view
4

Card size
L=281 W=119 H=40

PCB Form
ATX

DirectX
DirectX 12 API

OpenGL
4.6

Recommended PSU
500W

Power Connectors
8 Pin*1

Output
DisplayPort 2.1b *3
HDMI 2.1b *1

Accessories
Quick guide
Manufacturer's Website:
Warranty:

Gigabyte 3-Year Return-To-Base Warranty

Warranty Length: 3 years

Warranty Type:Return-To-Base

Warranty Coverage: Gigabyte's 3-year warranty includes a 30-day DOA period covering manufacturing defects and faults. If a product becomes faulty within the first 30 days of purchase, it can be returned to Target under the 30-Day DOA agreement, at which point we will replace it where possible, or offer account credit. If it becomes faulty after the first 30 days the product will be repaired or replaced with a graded unit. Account credit will be unavailable outside of the 30-day DOA agreement. The end user will need to return it to the reseller they purchased it from originally. If the unit is found faulty within the first 30 days of purchase, it can be returned to the reseller to claim under DOA with Target - a proof of end-user purchase WILL be required.

Warranty Instructions: RESELLERS - please raise a Target RMA.

END USERS - in the first instance, please return it to the reseller you originally purchased it. Target is unable to deal with end-user warranty issues. In the event an end-user is unable to contact the reseller, they must contact Gigabyte directly via Gigabyte Returns.

Warranty Information: https://www.gigabyte.com/uk/Support/Consumer/Warranty

Warranty Contact: Gigabyte Returns

DESIGN
Form factor Full-Height/Half-Length (FH/HL)
Number of slots 2
Product colour Black
Illumination Yes
Number of fans 3 fan(s)
Cooling type Active
Illumination colour Multi
Cooling technology GIGABYTE WINDFORCE 3X
ENERGY MANAGEMENT
Minimum system power supply 500 W
Supplementary power connectors 1x 8-pin
Thermal Design Power (TDP) 109 W
LOGISTICS DATA
Products per shipping (inner) case 1 pc(s)
MEMORY
Graphics card memory type GDDR7
Data transfer rate 28 Gbit/s
Memory bus 128 bit
Memory clock speed 28000 MHz
Discrete graphics card memory 8 GB
PACKAGING CONTENT
Quick installation guide Yes
PACKAGING DATA
Package weight 1.28 kg
Package depth 354 mm
Package height 75 mm
Package width 182.5 mm
Package type Box
PERFORMANCE
TV tuner integrated No
DirectX version 12.0
OpenGL version 4.6
Dual Link DVI No
NVIDIA G-SYNC Yes
Warranty period 3 year(s)
Overclocked (OC) edition Yes
PORTS & INTERFACES
Interface type PCI Express 5.0
DVI-I ports quantity 0
DVI-D ports quantity 0
HDMI ports quantity 1
HDMI version 2.1b
DisplayPorts quantity 3
Mini HDMI ports quantity 0
Mini DisplayPorts quantity 0
DisplayPort version 2.1b
Thunderbolt 3 ports quantity 0
PROCESSOR
Processor frequency 2595 MHz
Graphics processor GeForce RTX 5060
Maximum resolution 7680 x 4320 pixels
Parallel processing technology support Not supported
Maximum displays per videocard 4
CUDA Yes
CUDA cores 3840
Graphics processor family NVIDIA
TECHNICAL DETAILS
Warranty period 3 year(s)
WEIGHT & DIMENSIONS
Weight 800 g
Height 119 mm
Depth 40 mm
Length 281 mm
