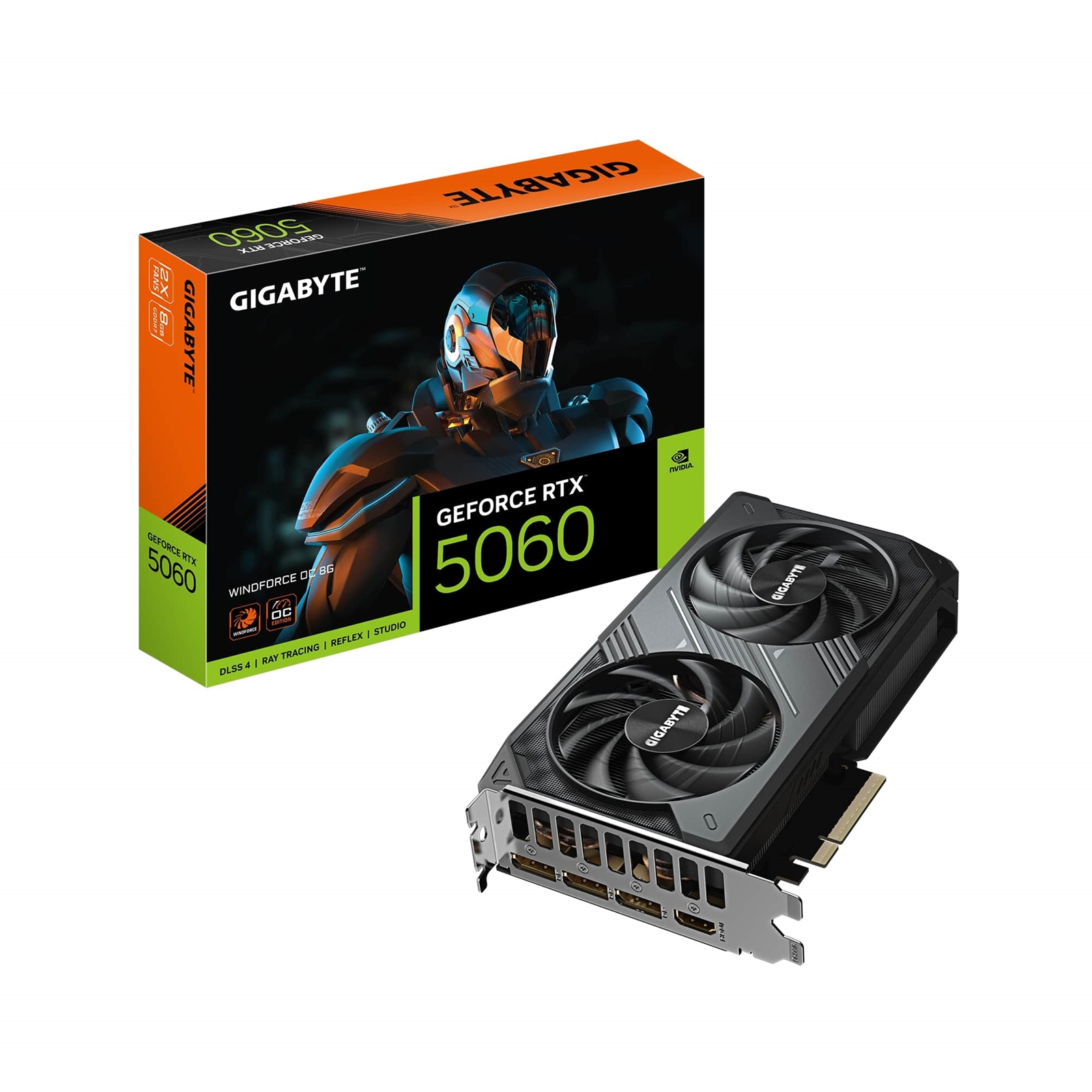

Gigabyte NVIDIA GeForce RTX 5060 WINDFORCE OC 8GB GDDR7 Graphics Card, 3840 CUDA Cores, 2512MHz Core Clock, Dual Fan, 1x DisplayPorts / 1x HDMI Ports

Key Specifications
Chipset ManufacturerNvidia
Chipset SeriesRTX
ChipsetRTX5060
Form Factor2 x ATX
Memory8GB
Fans2
RGBNo
/productImages/80/GRGIG-N5060WF2OC.jpg
/productImages/80/209282.JPG
/productImages/80/209283.JPG
/productImages/80/209284.JPG
/productImages/80/209285.JPG
/productImages/80/209286.JPG
/productImages/80/209287.JPG
/productImages/80/209288.JPG
/productImages/80/209289.JPG
/productImages/80/209290.JPG
Manufacturer : GIGABYTE
EAN : 4719331356323
Manufacturer Part Code : GV-N5060WF2OC-8GD
Weight : 0.7 kg
Login For Pricing

Key Specifications
Chipset ManufacturerNvidia
Chipset SeriesRTX
ChipsetRTX5060
Form Factor2 x ATX
Memory8GB
Fans2
RGBNo
Manufacturer :
GIGABYTE

EAN :
4719331356323

Manufacturer Part Code :
GV-N5060WF2OC-8GD

Weight :
0.7 kg
Recommended Products
1289Motherboards
See details
1282Case Cooling
See details
1284Power Supplies
See details

GeForce RTX 5060 WINDFORCE OC 8G

FEATURES
Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX 5060
Integrated with 8GB GDDR7 128bit memory interface
WINDFORCE cooling system
Hawk fan
Server-grade Thermal conductive gel
Reinforced structure

CORE CLOCK
2512 MHz (Reference card : 2497MHz)

Graphics Processing
GeForce RTX 5060

Core Clock
2512 MHz (Reference card : 2497MHz)

CUDA Cores
3840

Memory Clock
28 Gbps

Memory Size
8 GB

Memory Type
GDDR7

Memory Bus
128 bit

Card Bus
PCI-E 5.0

Digital max resolution
7680x4320

Multi-view
4

Card size
L=199 W=116 H=40

PCB Form
ATX

DirectX
DirectX 12 API

OpenGL
4.6

Recommended PSU
450W

Power Connectors
8 Pin*1

Output
DisplayPort 2.1b *3
HDMI 2.1b *1

Accessories
Quick guide
