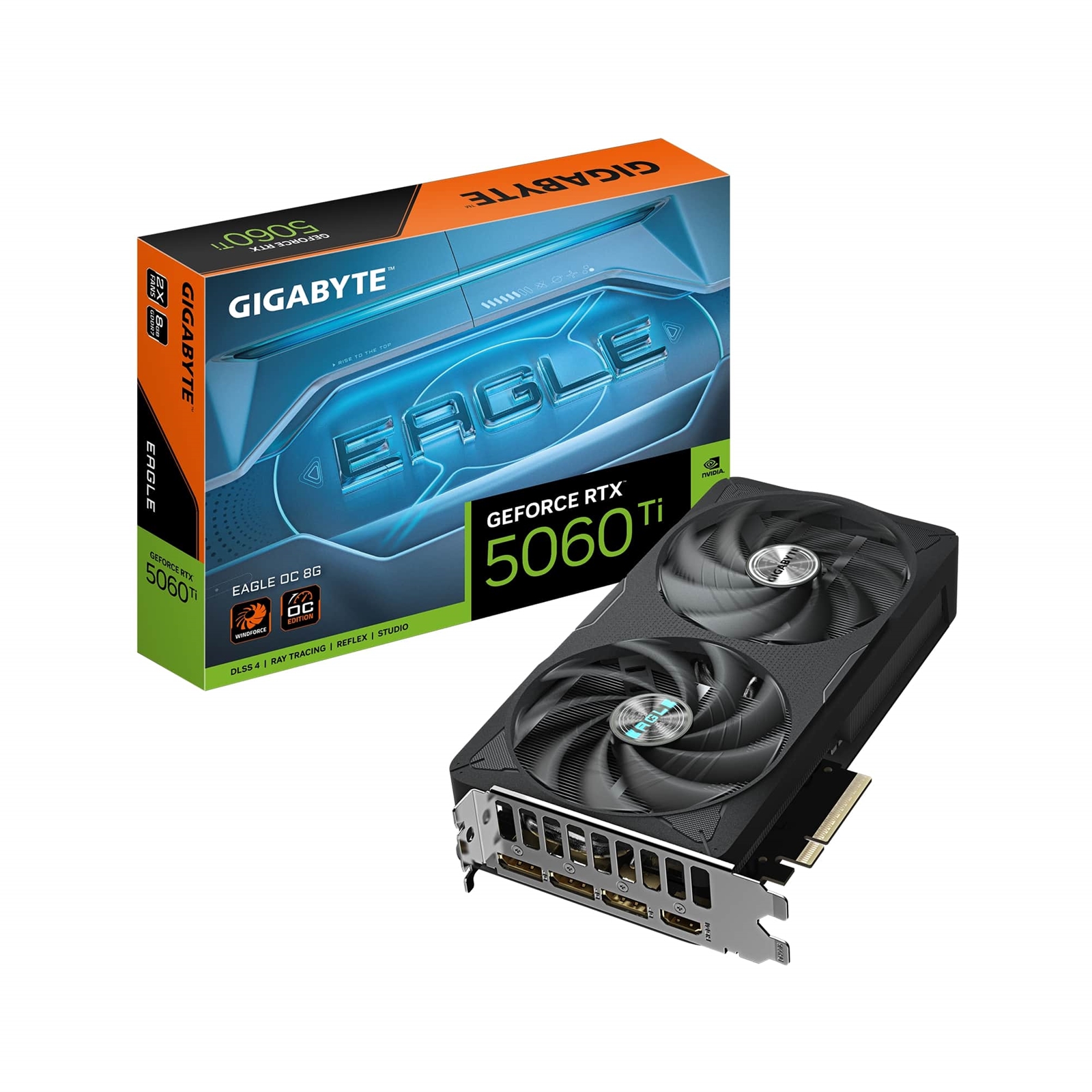

Gigabyte NVIDIA GeForce RTX 5060 Ti EAGLE OC 8GB GDDR7 Graphics Card, 4608 CUDA Cores, 2617MHz Core Clock, Dual Fan, 3x DisplayPorts / 1x HDMI Ports

Key Specifications
Chipset ManufacturerNvidia
Chipset SeriesRTX
ChipsetRTX5060Ti
Form Factor2 x ATX
Memory8GB
Fans3
RGBNo
/productImages/80/GRGIG-N506TEAGLE.JPG
/productImages/80/209193.JPG
/productImages/80/209194.JPG
/productImages/80/209195.JPG
/productImages/80/209196.JPG
/productImages/80/209197.JPG
/productImages/80/209198.JPG
/productImages/80/209199.JPG
/productImages/80/209200.JPG
Manufacturer : GIGABYTE
EAN : 0889523049365
Manufacturer Part Code : GV-N506TEAGLE OC-8GD
Weight : 0.75 kg
Login For Pricing

Key Specifications
Chipset ManufacturerNvidia
Chipset SeriesRTX
ChipsetRTX5060Ti
Form Factor2 x ATX
Memory8GB
Fans3
RGBNo
Manufacturer :
GIGABYTE

EAN :
0889523049365

Manufacturer Part Code :
GV-N506TEAGLE OC-8GD

Weight :
0.75 kg
Recommended Products
1289Motherboards
See details
1282Case Cooling
See details
1284Power Supplies
See details

GeForce RTX 5060 Ti EAGLE OC 8G

FEATURES

Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX 5060 Ti
Integrated with 8GB GDDR7 128bit memory interface
WINDFORCE cooling system
Hawk fan
Server-grade Thermal conductive gel
Reinforced structure

CORE CLOCK
2617 MHz (Reference card :2572 MHz)

Specification

Graphics Processing
GeForce RTX 5060 Ti

Core Clock
2617 MHz (Reference card :2572 MHz)

CUDA Cores
4608

Memory Clock
28 Gbps

Memory Size
8 GB

Memory Type
GDDR7

Memory Bus
128 bit

Card Bus
PCI-E 5.0

Digital max resolution
7680x4320

Multi-view
4

Card size
L=215 W=122 H=40 mm

PCB Form
ATX

DirectX
DirectX 12 API

OpenGL
4.6

Recommended PSU
650W

Power Connectors
8 Pin*1

Output
DisplayPort 2.1b *3
HDMI 2.1b *1

Accessories
Quick guide
Manufacturer's Website:
Warranty:

Gigabyte 3-Year Return-To-Base Warranty

Warranty Length: 3 years

Warranty Type:Return-To-Base

Warranty Coverage: Gigabyte's 3-year warranty includes a 30-day DOA period covering manufacturing defects and faults. If a product becomes faulty within the first 30 days of purchase, it can be returned to Target under the 30-Day DOA agreement, at which point we will replace it where possible, or offer account credit. If it becomes faulty after the first 30 days the product will be repaired or replaced with a graded unit. Account credit will be unavailable outside of the 30-day DOA agreement. The end user will need to return it to the reseller they purchased it from originally. If the unit is found faulty within the first 30 days of purchase, it can be returned to the reseller to claim under DOA with Target - a proof of end-user purchase WILL be required.

Warranty Instructions: RESELLERS - please raise a Target RMA.

END USERS - in the first instance, please return it to the reseller you originally purchased it. Target is unable to deal with end-user warranty issues. In the event an end-user is unable to contact the reseller, they must contact Gigabyte directly via Gigabyte Returns.

Warranty Information: https://www.gigabyte.com/uk/Support/Consumer/Warranty

Warranty Contact: Gigabyte Returns

DESIGN
Form factor Full-Height/Half-Length (FH/HL)
Number of slots 2
Product colour Black
Number of fans 2 fan(s)
Cooling type Active
Cooling technology GIGABYTE WINDFORCE 2X
ENERGY MANAGEMENT
Minimum system power supply 650 W
Supplementary power connectors 1x 8-pin
Thermal Design Power (TDP) 135 W
LOGISTICS DATA
Products per shipping (inner) case 1 pc(s)
MEMORY
Graphics card memory type GDDR7
Data transfer rate 28 Gbit/s
Memory bus 128 bit
Memory clock speed 28000 MHz
Discrete graphics card memory 8 GB
PACKAGING DATA
Package weight 960 g
Package depth 330 mm
Package height 57 mm
Package width 235 mm
Package type Box
PERFORMANCE
TV tuner integrated No
DirectX version 12.0
OpenGL version 4.6
Dual Link DVI No
NVIDIA G-SYNC Yes
Warranty period 3 year(s)
Overclocked (OC) edition Yes
PORTS & INTERFACES
Interface type PCI Express x16 5.0
DVI-I ports quantity 0
DVI-D ports quantity 0
HDMI ports quantity 1
HDMI version 2.1b
DisplayPorts quantity 3
DisplayPort version 2.1b
PROCESSOR
Processor frequency 2617 MHz
Graphics processor GeForce RTX 5060 Ti
Maximum resolution 7680 x 4320 pixels
Parallel processing technology support Not supported
Maximum displays per videocard 4
CUDA Yes
CUDA cores 4608
Graphics processor family NVIDIA
TECHNICAL DETAILS
Warranty period 3 year(s)
WEIGHT & DIMENSIONS
Weight 600 g
Height 122 mm
Depth 40 mm
Length 215 mm
