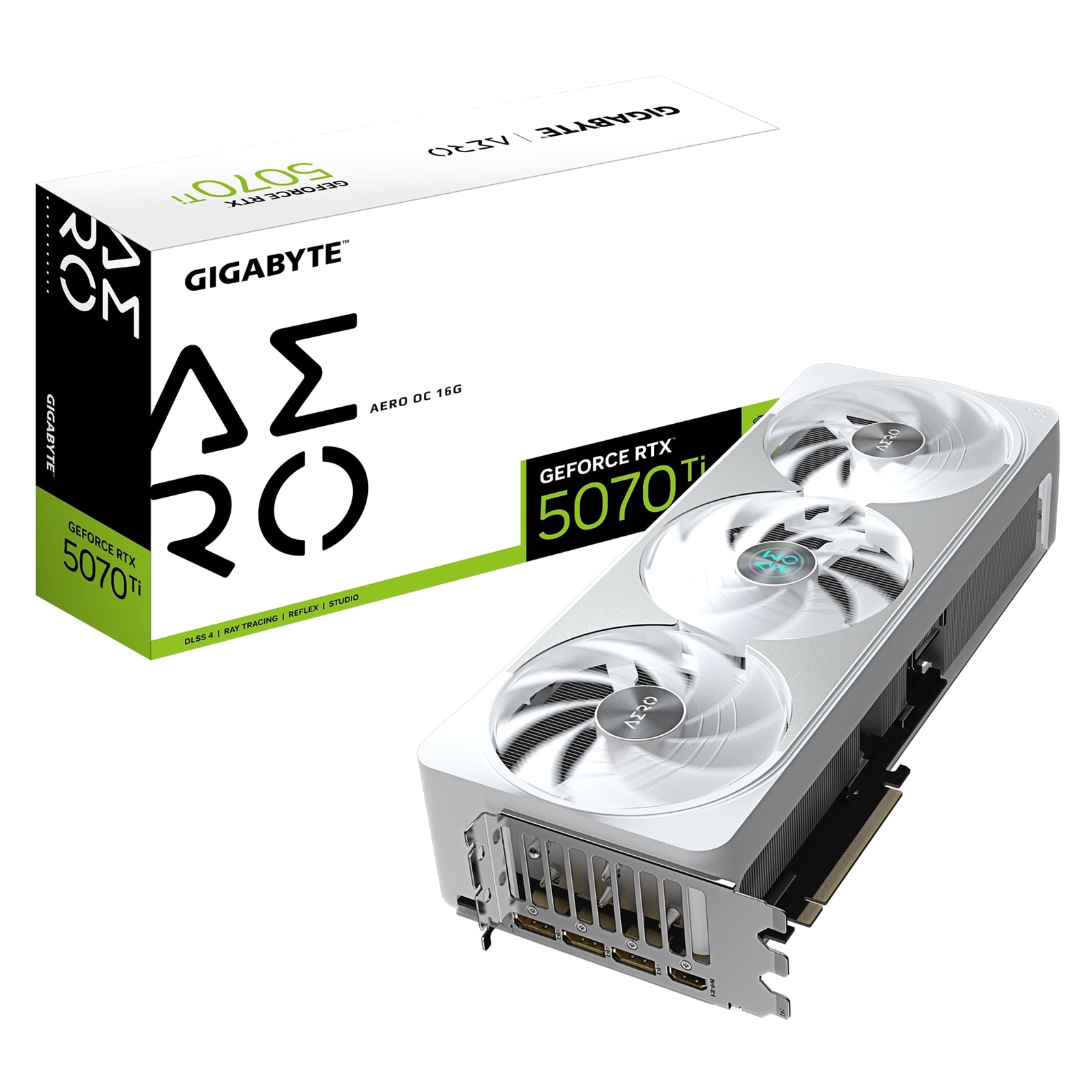

Gigabyte NVIDIA GeForce RTX 5070 Ti AERO OC 16G Graphics Card, 16GB GDDR7, 8960 CUDA Cores, 2588 MHz Core Clock, Triple Fan, White, RGB, 3x DisplayPorts / 1x HDMI Port

Key Specifications
Chipset ManufacturerNvidia
Chipset SeriesRTX
ChipsetRTX5070Ti
Form Factor3x ATX
Memory16GB
Fans3
RGBYes
/productImages/80/GRGIG-N5070TAOC.JPG
/productImages/80/206823.JPG
/productImages/80/206824.JPG
/productImages/80/206825.JPG
/productImages/80/206826.JPG
/productImages/80/206827.JPG
/productImages/80/206828.JPG
/productImages/80/206829.JPG
/productImages/80/206830.JPG
Manufacturer : GIGABYTE
EAN : 4719331355876
Manufacturer Part Code : GV-N507TAERO OC-16GD
Weight : 2 kg
Login For Pricing

Key Specifications
Chipset ManufacturerNvidia
Chipset SeriesRTX
ChipsetRTX5070Ti
Form Factor3x ATX
Memory16GB
Fans3
RGBYes
Manufacturer :
GIGABYTE

EAN :
4719331355876

Manufacturer Part Code :
GV-N507TAERO OC-16GD

Weight :
2 kg
Recommended Products
1289Motherboards
See details
1282Case Cooling
See details
1284Power Supplies
See details

GeForce RTX 5070 Ti AERO OC 16G

FEATURES
Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX 5070 Ti
Integrated with 16GB GDDR7 256bit memory interface
WINDFORCE cooling system
Hawk fan
Server-grade thermal conductive gel
RGB Lighting
Dual BIOS (Performance / Silent)
Reinforced structure
Versatile VGA holder
4 years warranty (Online registration required)

SPECIFICATION

Graphics Processing
GeForce RTX 5070 Ti

Core Clock
2588 MHz (Reference: 2452 MHz)

CUDA Cores
8960

Memory Clock
28 Gbps

Memory Size
16GB

Memory Type
GDDR7

Memory Bus
256 bit

Card Bus
PCI-E 5.0

Digital Max Resolution
7680 x 4320

Multi-View
4

Card Size
L=340 W=140 H=70 mm

PCB Form
ATX

DirectX
DirectX 12 API

OpenGL
OpenGL 4.6

Recommended PSU
750W

Power Connectors
16 pin x 1

Output
DisplayPort 2.1a x 3
HDMI 2.1b x 1

Accessories
VGA manual
Warranty notice
1 x 12V-2x6 to 3 x PCIe 8pin adapter
Versatile VGA holder
Versatile VGA holder manual
Manufacturer's Website:
Warranty:

Gigabyte 3-Year Return-To-Base Warranty

Warranty Length: 3 years

Warranty Type:Return-To-Base

Warranty Coverage: Gigabyte's 3-year warranty includes a 30-day DOA period covering manufacturing defects and faults. If a product becomes faulty within the first 30 days of purchase, it can be returned to Target under the 30-Day DOA agreement, at which point we will replace it where possible, or offer account credit. If it becomes faulty after the first 30 days the product will be repaired or replaced with a graded unit. Account credit will be unavailable outside of the 30-day DOA agreement. The end user will need to return it to the reseller they purchased it from originally. If the unit is found faulty within the first 30 days of purchase, it can be returned to the reseller to claim under DOA with Target - a proof of end-user purchase WILL be required.

Warranty Instructions: RESELLERS - please raise a Target RMA.

END USERS - in the first instance, please return it to the reseller you originally purchased it. Target is unable to deal with end-user warranty issues. In the event an end-user is unable to contact the reseller, they must contact Gigabyte directly via Gigabyte Returns.

Warranty Information: https://www.gigabyte.com/uk/Support/Consumer/Warranty

Warranty Contact: Gigabyte Returns

DESIGN
Form factor Full-Height/Full-Length (FH/FL)
Number of slots 2
Product colour White
Illumination Yes
Number of fans 3 fan(s)
Cooling type Active
Cooling technology GIGABYTE WINDFORCE 3X
ENERGY MANAGEMENT
Minimum system power supply 750 W
Supplementary power connectors 1x 16-pin
Thermal Design Power (TDP) 300 W
LOGISTICS DATA
Products per shipping (inner) case 1 pc(s)
MEMORY
Graphics card memory type GDDR7
Memory bus 256 bit
Memory clock speed 30000 MHz
Memory bandwidth (max) 28 GB/s
Discrete graphics card memory 16 GB
PACKAGING CONTENT
Cables included Power
PACKAGING DATA
Package weight 3 kg
Cables included Power
Package depth 427 mm
Package height 105 mm
Package width 264 mm
Package type Box
PERFORMANCE
TV tuner integrated No
DirectX version 12.0
OpenGL version 4.6
Dual Link DVI No
Warranty period 4 year(s)
Overclocked (OC) edition Yes
PORTS & INTERFACES
Interface type PCI Express x16 5.0
DVI-I ports quantity 0
DVI-D ports quantity 0
HDMI ports quantity 1
HDMI version 2.1b
DisplayPorts quantity 3
DisplayPort version 2.1a
PROCESSOR
Processor frequency 2588 MHz
Graphics processor GeForce RTX 5070 Ti
Maximum resolution 7680 x 4320 pixels
Parallel processing technology support Not supported
Maximum displays per videocard 4
CUDA Yes
CUDA cores 8960
Graphics processor family NVIDIA
TECHNICAL DETAILS
Warranty period 4 year(s)
WEIGHT & DIMENSIONS
Weight 2 kg
Height 149 mm
Depth 75 mm
Length 340 mm
