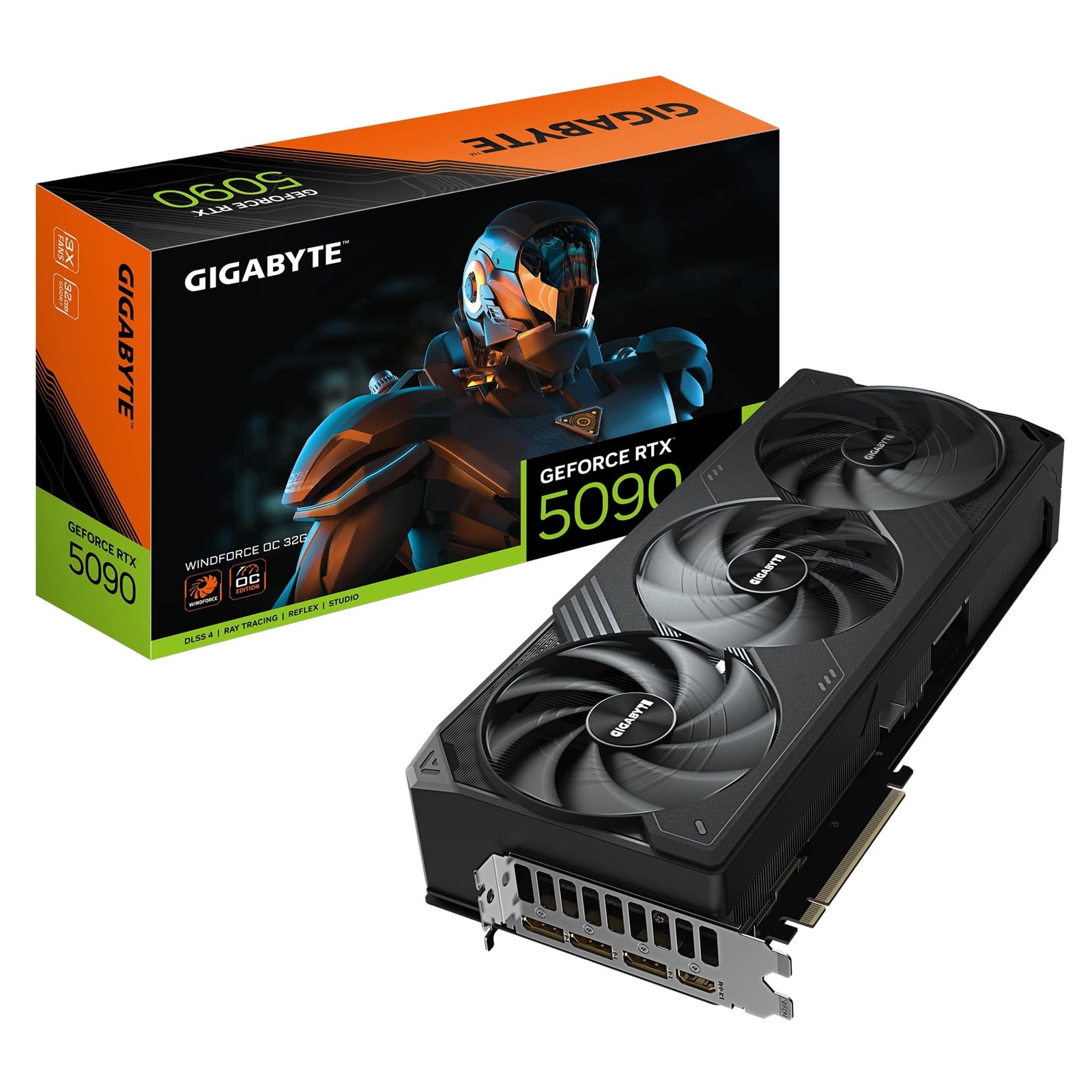

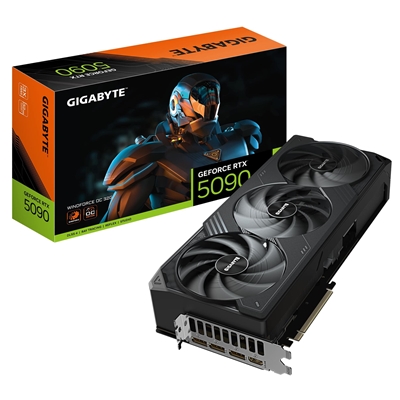

Gigabyte NVIDIA GeForce RTX 5090 WINDFORCE OC 32G Graphics Card, 32GB GDDR7, 21760 CUDA Cores, 2467 MHz Core Clock, Triple Fan, 3x DisplayPorts / 1x HDMI Port

Key Specifications
Chipset ManufacturerNvidia
Chipset SeriesRTX
ChipsetRTX5090
Form Factor2x ATX
Memory32GB
Fans3
RGBNo
/productImages/80/GRGIG-N5090WOC.JPG
/productImages/80/206610.JPG
/productImages/80/206611.JPG
/productImages/80/206612.JPG
/productImages/80/206613.JPG
/productImages/80/206614.JPG
/productImages/80/206615.JPG
/productImages/80/206616.JPG
/productImages/80/206617.JPG
/productImages/80/206618.JPG
Manufacturer : GIGABYTE
EAN : 4719331355838
Manufacturer Part Code : GV-N5090WF3OC-32GD
Weight : 2 kg
Login For Pricing

Key Specifications
Chipset ManufacturerNvidia
Chipset SeriesRTX
ChipsetRTX5090
Form Factor2x ATX
Memory32GB
Fans3
RGBNo
Manufacturer :
GIGABYTE

EAN :
4719331355838

Manufacturer Part Code :
GV-N5090WF3OC-32GD

Weight :
2 kg
Recommended Products
1289Motherboards
See details
1282Case Cooling
See details
1284Power Supplies
See details

GeForce RTX 5090 WINDFORCE OC 32G

FEATURES
Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX 5090
Integrated with 32GB GDDR7 512bit memory interface
WINDFORCE cooling system
Hawk fan
Server-grade Thermal conductive gel
Dual BIOS (Performance / Silent)
Reinforced structure
Versatile VGA holder

SPECIFICATION

Graphics ProcessingGeForce RTX 5090

Core Clock
2467 MHz (Reference card : 2407MHz)

CUDA Cores
21760

Memory Clock
28 Gbps

Memory Size
32 GB

Memory Type
GDDR7

Memory Bus
512 bit

Card Bus
PCI-E 5.0

Digital Max Resolution
7680x4320

Multi-View
4

Card Size
L=342 W=150 H=65 mm

PCB Form
ATX

DirectX
DirectX 12 API

OpenGL
4.6

Recommended PSU
1000W

Power Connectors
16 Pin x 1

Output
DisplayPort 2.1a x 3
HDMI 2.1b x 1

Accessories
Quick guide
1 x 12V-2x6 to 4 x PCIe 8pin adapter
Versatile VGA holder
Versatile VGA holder manual
Manufacturer's Website:
Warranty:

Gigabyte 3-Year Return-To-Base Warranty

Warranty Length: 3 years

Warranty Type:Return-To-Base

Warranty Coverage: Gigabyte's 3-year warranty includes a 30-day DOA period covering manufacturing defects and faults. If a product becomes faulty within the first 30 days of purchase, it can be returned to Target under the 30-Day DOA agreement, at which point we will replace it where possible, or offer account credit. If it becomes faulty after the first 30 days the product will be repaired or replaced with a graded unit. Account credit will be unavailable outside of the 30-day DOA agreement. The end user will need to return it to the reseller they purchased it from originally. If the unit is found faulty within the first 30 days of purchase, it can be returned to the reseller to claim under DOA with Target - a proof of end-user purchase WILL be required.

Warranty Instructions: RESELLERS - please raise a Target RMA.

END USERS - in the first instance, please return it to the reseller you originally purchased it. Target is unable to deal with end-user warranty issues. In the event an end-user is unable to contact the reseller, they must contact Gigabyte directly via Gigabyte Returns.

Warranty Information: https://www.gigabyte.com/uk/Support/Consumer/Warranty

Warranty Contact: Gigabyte Returns

DESIGN
Form factor Full-Height/Full-Length (FH/FL)
Number of slots 3.5
Product colour Black
Number of fans 3 fan(s)
Cooling type Active
Bracket height Full-Height (FH)
Cooling technology GIGABYTE WINDFORCE 3X
ENERGY MANAGEMENT
Minimum system power supply 1000 W
Supplementary power connectors 1x 16-pin
LOGISTICS DATA
Products per shipping (inner) case 1 pc(s)
MEMORY
Graphics card memory type GDDR7
Data transfer rate 28 Gbit/s
Memory bus 512 bit
Memory clock speed 28000 MHz
Discrete graphics card memory 32 GB
PACKAGING CONTENT
Cables included Power
Quick installation guide Yes
PACKAGING DATA
Package weight 3 kg
Cables included Power
Package depth 427 mm
Package height 105 mm
Package width 264 mm
PERFORMANCE
TV tuner integrated No
DirectX version 12.0
OpenGL version 4.6
Dual Link DVI No
NVIDIA G-SYNC Yes
Virtual Reality (VR) ready Yes
Overclocked (OC) edition Yes
PORTS & INTERFACES
Interface type PCI Express x16 5.0
DVI-I ports quantity 0
DVI-D ports quantity 0
HDMI ports quantity 1
HDMI version 2.1b
DisplayPorts quantity 3
DisplayPort version 2.1a
PROCESSOR
Processor frequency 2467 MHz
Graphics processor GeForce RTX 5090
Maximum resolution 7680 x 4320 pixels
Parallel processing technology support Not supported
Maximum displays per videocard 4
CUDA Yes
CUDA cores 21760
Graphics processor family NVIDIA
WEIGHT & DIMENSIONS
Weight 2 kg
Height 150 mm
Depth 65 mm
Length 342 mm
