KEY FEATURES
Powered by Radeon RX 7600 XT
Integrated with 16GB GDDR6 128-bit memory interface
WINDFORCE cooling system
RGB Fusion
Protection metal back plate

CORE CLOCK
TBD

WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, 5 composite copper heat pipes directly touch the GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.

ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.

3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.

GRAPHENE NANO LUBRICANT
Graphene nano lubricant extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

HEAT PIPES DIRECT TOUCH
The shape of the copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a metal plate contact to ensure proper cooling.

SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.

ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.

FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

Power Through The Game
GIGABYTE offers the best power supply solutions for your graphics cards. You can choose either the AORUS series or the UD series to power your graphics card.

Specifications

Graphics Processing
Radeon RX 7600 XT

Core Clock
TBD

Stream Processors
2048

Memory Clock
18 Gbps

Memory Size
16 GB

Memory Type
GDDR6

Memory Bus
128 bit

Card Bus
PCI-E 4.0

Digital max resolution
7680x4320

Multi-view
4

Card size
L=281.4 W=116.6 H=52.6 mm

PCB Form
ATX

DirectX
12 Ultimate

OpenGL
4.6

Recommended PSU
600W

Power Connectors
8 Pin*2

Output
DisplayPort 2.1 x 2
HDMI 2.1a x 2

Accessories
Quick guide

Manufacturer's Website:

www.gigabyte.com

Warranty:

Gigabyte 3-Year Return-To-Base Warranty

Warranty Length: 3 years

Warranty Type:Return-To-Base

Warranty Coverage: Gigabyte's 3-year warranty includes a 30-day DOA period covering manufacturing defects and faults. If a product becomes faulty within the first 30 days of purchase, it can be returned to Target under the 30-Day DOA agreement, at which point we will replace it where possible, or offer account credit. If it becomes faulty after the first 30 days the product will be repaired or replaced with a graded unit. Account credit will be unavailable outside of the 30-day DOA agreement. The end user will need to return it to the reseller they purchased it from originally. If the unit is found faulty within the first 30 days of purchase, it can be returned to the reseller to claim under DOA with Target - a proof of end-user purchase WILL be required.

Warranty Instructions: RESELLERS - please raise a Target RMA.

END USERS - in the first instance, please return it to the reseller you originally purchased it. Target is unable to deal with end-user warranty issues. In the event an end-user is unable to contact the reseller, they must contact Gigabyte directly via Gigabyte Returns.

Warranty Information: https://www.gigabyte.com/uk/Support/Consumer/Warranty

Warranty Contact: Gigabyte Returns

DESIGN
Form factor	Full-Height/Full-Length (FH/FL)
Product colour	Black
Illumination	Yes
Number of fans	3 fan(s)
Cooling type	Active
Fan diameter	8 cm
Illumination colour	Multi
Bracket height	Full-Height (FH)
Cooling technology	GIGABYTE WINDFORCE 3X
ENERGY MANAGEMENT
Minimum system power supply	600 W
Supplementary power connectors	2x 8-pin
MEMORY
Graphics card memory type	GDDR6
Data transfer rate	18 Gbit/s
Memory bus	128 bit
Number of pipelines	5
Discrete graphics card memory	16 GB
PACKAGING CONTENT
User guide	Yes
PACKAGING DATA
Package type	Box
User guide	Yes
PERFORMANCE
TV tuner integrated	No
DirectX version	12 Ultimate
OpenGL version	4.6
Dual Link DVI	No
AMD FreeSync	Yes
PORTS & INTERFACES
Interface type	PCI Express 4.0
HDMI ports quantity	2
HDMI version	2.1a
DisplayPorts quantity	2
DisplayPort version	2.1
PROCESSOR
Graphics processor	Radeon RX 7600 XT
Maximum resolution	7680 x 4320 pixels
Parallel processing technology support	Not supported
Stream processors	2048
Maximum displays per videocard	4
CUDA	No
Graphics processor family	AMD
SYSTEM REQUIREMENTS
Windows operating systems supported	Windows 10 x64, Windows 11 x64
WEIGHT & DIMENSIONS
Height	52.6 mm
Width	116.6 mm
Depth	281.4 mm

Target Components

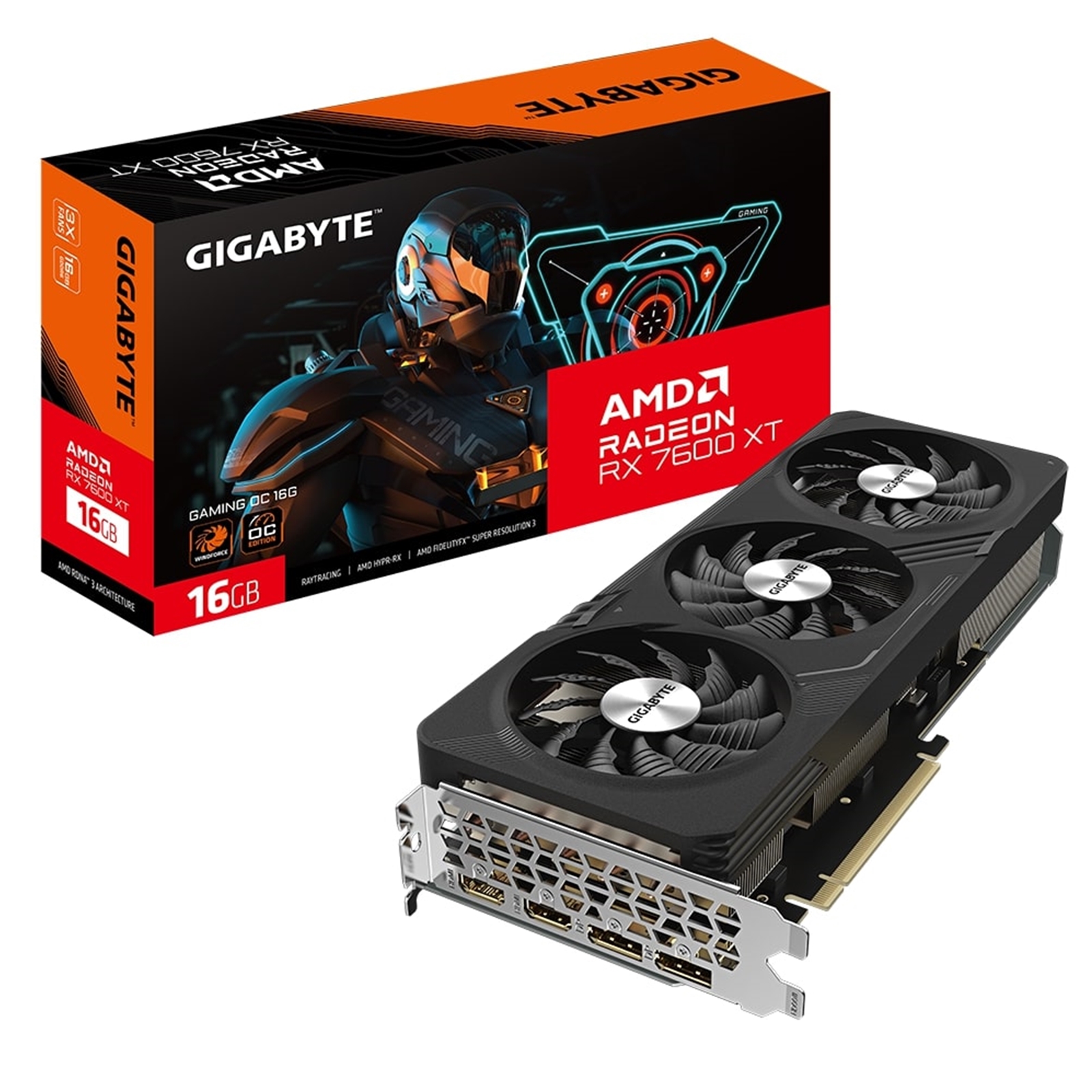

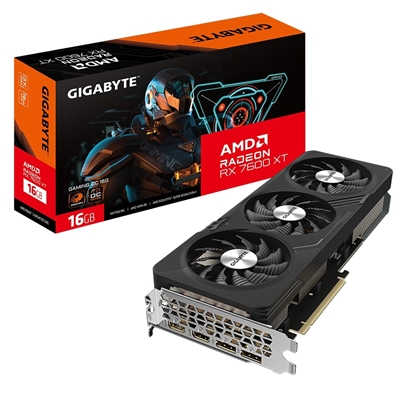

GIGABYTE Radeon RX 7600 XT Gaming OC 16G 3X WINDFORCE Fans 16GB Graphics Card
