KEY FEATURES

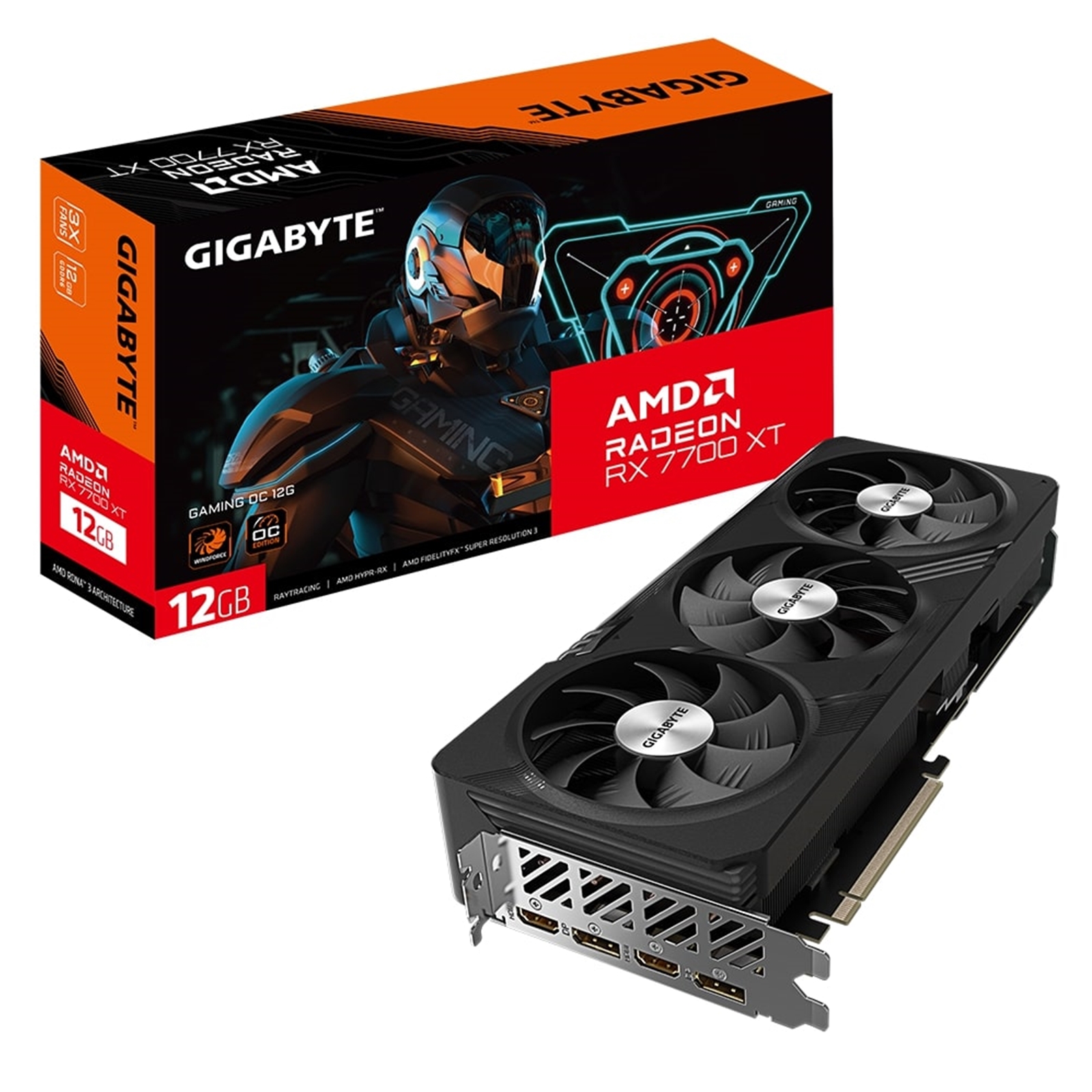

Powered by Radeon RX 7700 XT
Integrated with 12GB GDDR6 192-bit memory interface
WINDFORCE Cooling System
RGB Fusion
Dual BIOS
Protection metal back plate
CORE CLOCK
Boost Clock : up to 2599 MHz (Reference card: 2544 MHz)
Game Clock : up to 2276 MHz (Reference card: 2171 MHz)
WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features three 90mm unique blade fans, alternate spinning, 7 composite copper heat pipes, a large copper plate directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of the sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
LARGE COPPER PLATE & HEAT-PIPE
The large copper plate directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
Power Through The Game
GIGABYTE offers the best power supply solutions for your graphics cards. You can choose either the AORUS series or the UD series to power your graphics card.
Specification
Graphics Processing
Radeon RX 7700 XT
Core Clock
Boost Clock : up to 2599 MHz (Reference card: 2544 MHz)
Game Clock : up to 2276 MHz (Reference card: 2171 MHz)
Stream Processors
3456
Memory Clock
18 Gbps
Memory Size
12 GB
Memory Type
GDDR6
Memory Bus
192 bit
Card Bus
PCI-E 4.0
Digital max resolution
7680x4320
Multi-view
4
Card size
L=302 W=130 H=56 mm
PCB Form
ATX
DirectX
12 Ultimate
OpenGL
4.6
Recommended PSU
700W
Power Connectors
8 Pin*2
Output
DisplayPort 2.1 x 2
HDMI 2.1 x 2
Accessories
Quick guide
Warranty:
Gigabyte 3-Year Return-To-Base Warranty
Warranty Length: 3 years
Warranty Type:Return-To-Base
Warranty Coverage: Gigabyte's 3-year warranty includes a 30-day DOA period covering manufacturing defects and faults. If a product becomes faulty within the first 30 days of purchase, it can be returned to Target under the 30-Day DOA agreement, at which point we will replace it where possible, or offer account credit. If it becomes faulty after the first 30 days the product will be repaired or replaced with a graded unit. Account credit will be unavailable outside of the 30-day DOA agreement.
The end user will need to return it to the reseller they purchased it from originally. If the unit is found faulty within the first 30 days of purchase, it can be returned to the reseller to claim under DOA with Target - a proof of end-user purchase WILL be required.
Warranty Instructions: RESELLERS - please raise a Target RMA.
END USERS - in the first instance, please return it to the reseller you originally purchased it. Target is unable to deal with end-user warranty issues. In the event an end-user is unable to contact the reseller, they must contact Gigabyte directly via Gigabyte Returns.
Warranty Information: https://www.gigabyte.com/uk/Support/Consumer/Warranty
Warranty Contact: Gigabyte Returns
