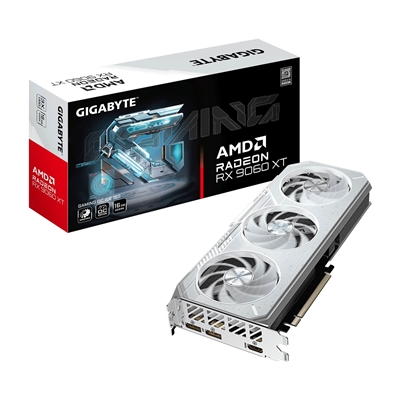

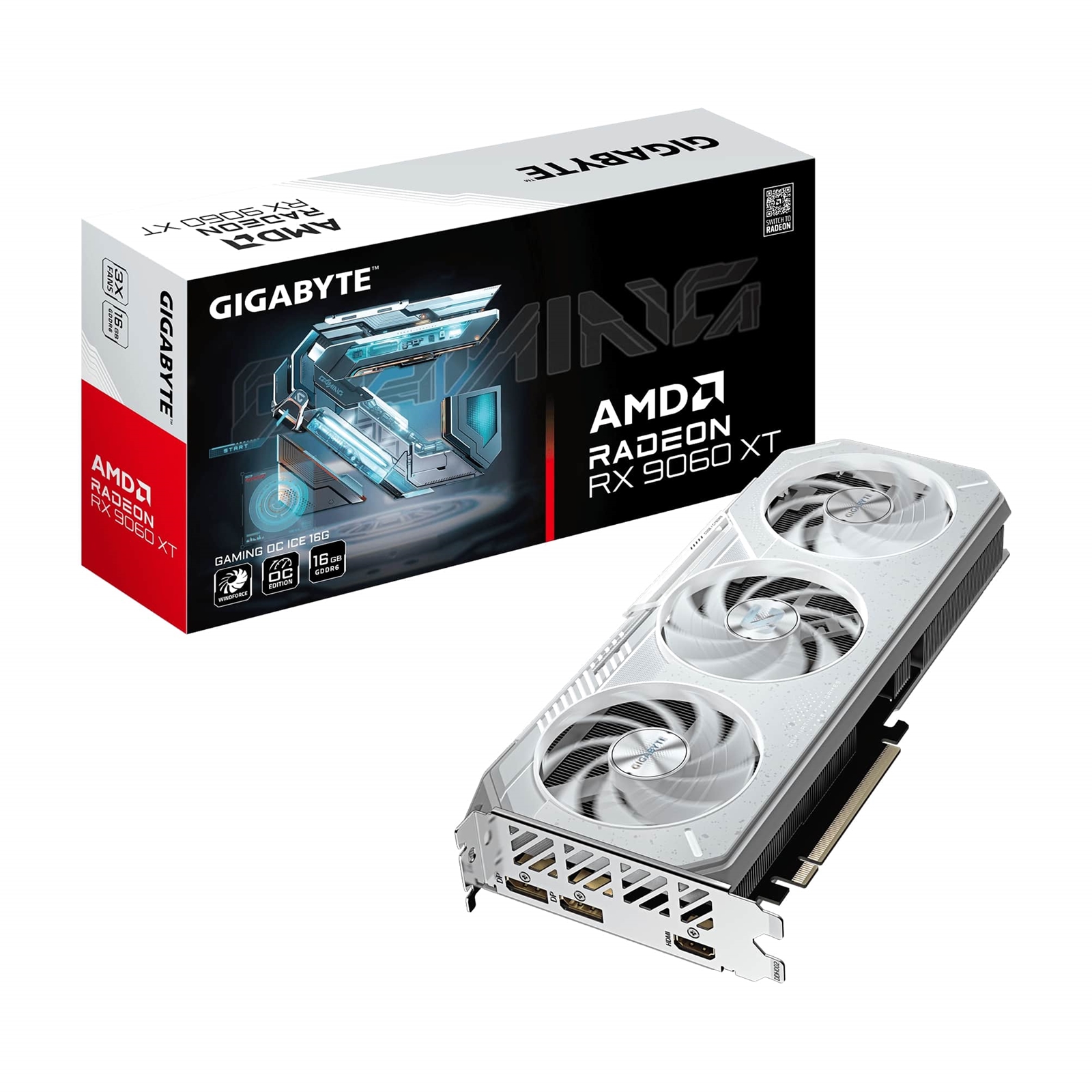

Gigabyte Radeon RX 9060 XT GAMING ICE OC 16GB GDDR6 Graphics Card, 2048 Streams, 3320 MHz Boost Clock, Triple Fan, RGB, 2x DisplayPorts / 1x HDMI Ports

Key Specifications
Chipset ManufacturerAMD
Chipset SeriesRX
ChipsetRX 9060 XT
Form FactorATX
Memory16GB
Fans3
RGBYes
/productImages/80/GRGIG-R906XGOI16.jpg
/productImages/80/212408.JPG
/productImages/80/212409.JPG
/productImages/80/212410.JPG
/productImages/80/212411.JPG
/productImages/80/212412.JPG
Manufacturer : GIGABYTE
EAN : 4719331357047
Manufacturer Part Code : GV-R906XGAMINGOCICE-16GD
Weight : 0.3 kg
Login For Pricing

Key Specifications
Chipset ManufacturerAMD
Chipset SeriesRX
ChipsetRX 9060 XT
Form FactorATX
Memory16GB
Fans3
RGBYes
Manufacturer :
GIGABYTE

EAN :
4719331357047

Manufacturer Part Code :
GV-R906XGAMINGOCICE-16GD

Weight :
0.3 kg
Recommended Products
1289Motherboards
See details
1284Power Supplies
See details
1283Case Lighting & Mods
See details

Radeon RX 9060 XT GAMING ICE OC 16GB

FEATURES

Powered by Radeon RX 9060 XT
Integrated with 16GB GDDR6 128bit memory interface
WINDFORCE cooling system
Hawk fan
Server-grade thermal conductive gel
RGB Lighting
Reinforced structure

Graphics Processing
Radeon RX 9060 XT

Core Clock
2780MHz Core Clock, 3320MHz Boost Clock

Stream Processors
2048

Memory Clock
20 Gbps

Memory Size
16GB

Memory Type
GDDR6

Memory Bus
128 bit

Card Bus
PCI-E 5.0

Digital max resolution
7680 x 4320

Multi-view
3

Card size
L=281 W=118 H=40 mm

PCB Form
ATX

DirectX
DirectX 12 API

OpenGL
OpenGL 4.6

Recommended PSU
450W

Power Connectors
8 pin*1

Output
DisplayPort 2.1a x2
HDMI 2.1b x1

Accessories
VGA manual
Manufacturer's Website:
Warranty:

Gigabyte 3-Year Return-To-Base Warranty

Warranty Length: 3 years

Warranty Type:Return-To-Base

Warranty Coverage: Gigabyte's 3-year warranty includes a 30-day DOA period covering manufacturing defects and faults. If a product becomes faulty within the first 30 days of purchase, it can be returned to Target under the 30-Day DOA agreement, at which point we will replace it where possible, or offer account credit. If it becomes faulty after the first 30 days the product will be repaired or replaced with a graded unit. Account credit will be unavailable outside of the 30-day DOA agreement. The end user will need to return it to the reseller they purchased it from originally. If the unit is found faulty within the first 30 days of purchase, it can be returned to the reseller to claim under DOA with Target - a proof of end-user purchase WILL be required.

Warranty Instructions: RESELLERS - please raise a Target RMA.

END USERS - in the first instance, please return it to the reseller you originally purchased it. Target is unable to deal with end-user warranty issues. In the event an end-user is unable to contact the reseller, they must contact Gigabyte directly via Gigabyte Returns.

Warranty Information: https://www.gigabyte.com/uk/Support/Consumer/Warranty

Warranty Contact: Gigabyte Returns

DESIGN
Form factor Full-Height/Full-Length (FH/FL)
Product colour Silver
Illumination Yes
Number of fans 3 fan(s)
Cooling type Active
Illumination colour Multi
Bracket height Full-Height (FH)
Cooling technology GIGABYTE WINDFORCE 3X
ENERGY MANAGEMENT
Minimum system power supply 450 W
Supplementary power connectors 1x 8-pin
MEMORY
Graphics card memory type GDDR6
Data transfer rate 20 Gbit/s
Memory bus 128 bit
Memory clock speed 20000 MHz
Discrete graphics card memory 16 GB
PACKAGING CONTENT
Manual Yes
PACKAGING DATA
Package weight 1.29 kg
Package depth 354 mm
Package height 75 mm
Package width 182.5 mm
Manual Yes
Package type Box
PERFORMANCE
TV tuner integrated No
DirectX version 12.0
OpenGL version 4.6
Dual Link DVI No
Warranty period 3 year(s)
Overclocked (OC) edition Yes
PORTS & INTERFACES
Interface type PCI Express 5.0
DVI-I ports quantity 0
DVI-D ports quantity 0
HDMI ports quantity 1
HDMI version 2.1b
DisplayPorts quantity 2
DisplayPort version 2.1a
PROCESSOR
Graphics processor Radeon RX 9060 XT
Maximum resolution 7680 x 4320 pixels
Parallel processing technology support Not supported
Stream processors 2048
Maximum displays per videocard 3
CUDA No
Graphics processor family AMD
Processor boost clock speed 3320 MHz
Processor boost clock speed (Gaming mode) 2780 MHz
SYSTEM REQUIREMENTS
Windows operating systems supported Windows 10 x64, Windows 11 x64
TECHNICAL DETAILS
Warranty period 3 year(s)
WEIGHT & DIMENSIONS
Weight 840 g
Height 118 mm
Depth 40 mm
Length 281 mm
