Home    Graphics, Displays & Software    Graphics & Sound    Graphics Cards    GRGIG-R9070XTGOC

Target Components

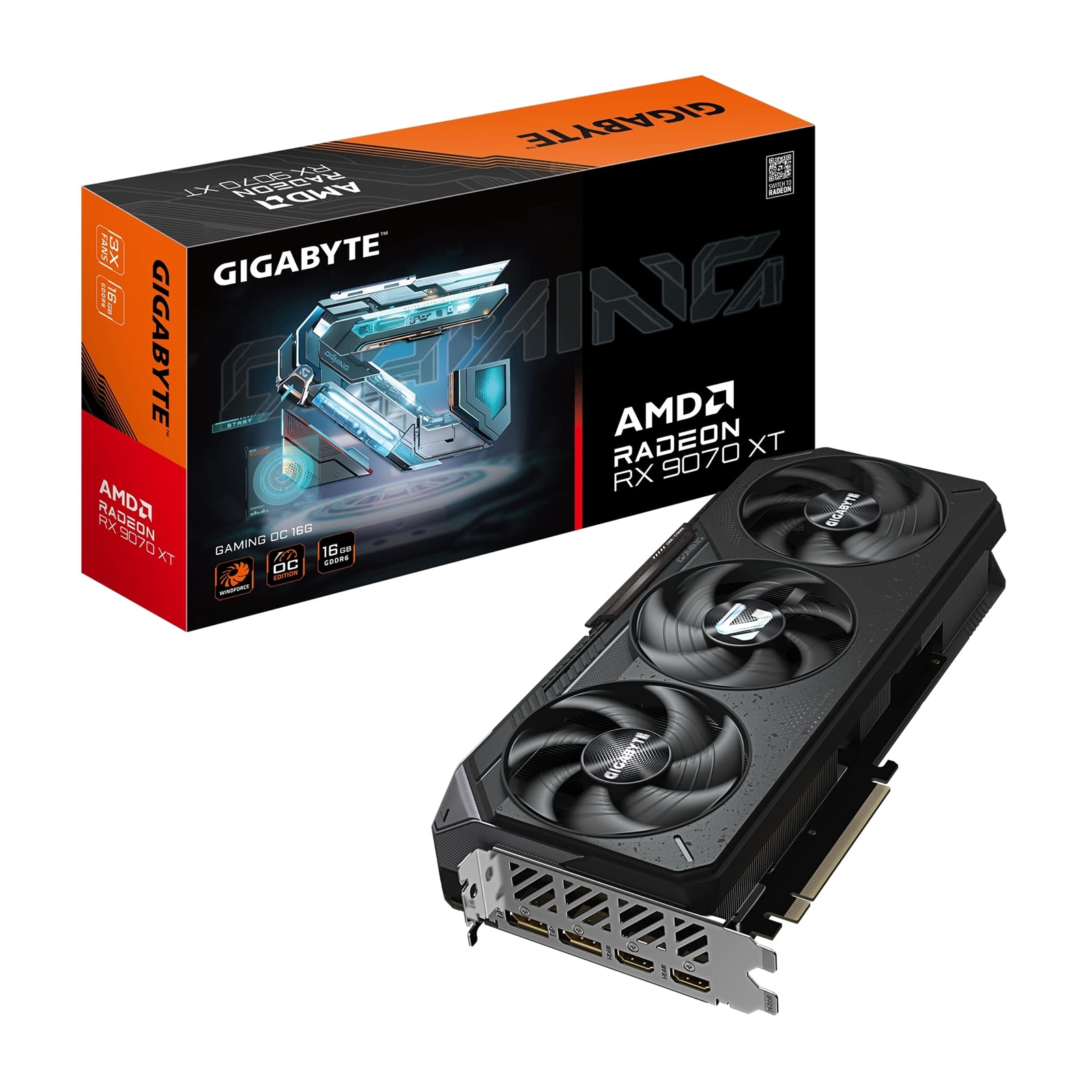

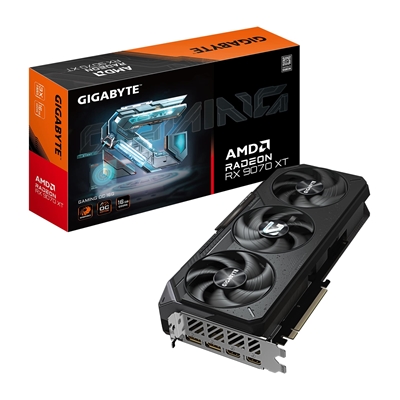

Gigabyte AMD Radeon RX 9070 XT GAMING OC 16G Graphics Card, 16GB GDDR6, 4096 Streams, TBD MHz Core Clock, Triple Fan, RGB, 2x DisplayPorts / 2x HDMI Ports

Key Specifications
Chipset ManufacturerAMD
Chipset SeriesRX
ChipsetRX 9070 XT
Form Factor2x ATX
Memory16GB
Fans3
RGBYes
/productImages/80/GRGIG-R9070XTGOC.JPG
/productImages/80/208115.JPG
/productImages/80/208116.JPG
/productImages/80/208117.JPG
/productImages/80/208118.JPG
/productImages/80/208119.JPG
/productImages/80/208120.JPG
/productImages/80/208121.JPG
/productImages/80/208122.JPG
/productImages/80/208123.JPG
Manufacturer : GIGABYTE
EAN : 4719331355524
Manufacturer Part Code : GV-R9070XTGAMING OC-16GD
Weight : 1.26 kg
Login For Pricing

Key Specifications
Chipset ManufacturerAMD
Chipset SeriesRX
ChipsetRX 9070 XT
Form Factor2x ATX
Memory16GB
Fans3
RGBYes
Manufacturer :
GIGABYTE

EAN :
4719331355524

Manufacturer Part Code :
GV-R9070XTGAMING OC-16GD

Weight :
1.26 kg
Recommended Products
1289Motherboards
See details
1284Power Supplies
See details
1283Case Lighting & Mods
See details

Radeon RX 9070 XT GAMING OC 16G

FEATURES
Powered by Radeon RX 9070 XT
Integrated with 16GB GDDR6 256bit memory interface
WINDFORCE cooling system
Hawk fan
Server-grade Thermal conductive gel
RGB Lighting
Dual BIOS (Performance / Silent)
Reinforced structure

CORE CLOCK
TBD

SPECIFICATION

Graphics Processing
Radeon RX 9070 XT

Core Clock
TBD

Stream Processors
4096

Memory Clock
20 Gbps

Memory Size
16GB

Memory Type
GDDR6

Memory Bus
256 bit

Card Bus
PCI-E 5.0

Digital Max Resolution
7680x4320

Multi-View
4

Card Size
L=288 W=132 H=56 mm

PCB Form
ATX

DirectX
DirectX 12 API

OpenGL
4.6

Recommended PSU
850W

Power Connectors
8 pin x 3

Output
DisplayPort 2.1a x 2
HDMI 2.1b x 2

Accessories
Quick guide
Manufacturer's Website:
Warranty:

Gigabyte 3-Year Return-To-Base Warranty

Warranty Length: 3 years

Warranty Type:Return-To-Base

Warranty Coverage: Gigabyte's 3-year warranty includes a 30-day DOA period covering manufacturing defects and faults. If a product becomes faulty within the first 30 days of purchase, it can be returned to Target under the 30-Day DOA agreement, at which point we will replace it where possible, or offer account credit. If it becomes faulty after the first 30 days the product will be repaired or replaced with a graded unit. Account credit will be unavailable outside of the 30-day DOA agreement. The end user will need to return it to the reseller they purchased it from originally. If the unit is found faulty within the first 30 days of purchase, it can be returned to the reseller to claim under DOA with Target - a proof of end-user purchase WILL be required.

Warranty Instructions: RESELLERS - please raise a Target RMA.

END USERS - in the first instance, please return it to the reseller you originally purchased it. Target is unable to deal with end-user warranty issues. In the event an end-user is unable to contact the reseller, they must contact Gigabyte directly via Gigabyte Returns.

Warranty Information: https://www.gigabyte.com/uk/Support/Consumer/Warranty

Warranty Contact: Gigabyte Returns

DESIGN
Form factor Full-Height/Full-Length (FH/FL)
Number of slots 2.7
Product colour Black
Illumination Yes
Number of fans 3 fan(s)
Cooling type Active
Illumination colour Multi
Cooling technology GIGABYTE WINDFORCE 3X
ENERGY MANAGEMENT
Minimum system power supply 850 W
Supplementary power connectors 3x 8-pin
LOGISTICS DATA
Products per shipping (inner) case 1 pc(s)
MEMORY
Graphics card memory type GDDR6
Memory bus 256 bit
Memory clock speed 20000 MHz
Discrete graphics card memory 16 GB
PACKAGING DATA
Package weight 1.88 kg
Package depth 488 mm
Package height 425 mm
Package width 470 mm
Package type Box
PERFORMANCE
TV tuner integrated No
DirectX version 12.0
OpenGL version 4.6
Dual Link DVI No
Warranty period 3 year(s)
PORTS & INTERFACES
Interface type PCI Express 5.0
DVI-I ports quantity 0
DVI-D ports quantity 0
HDMI ports quantity 2
DisplayPorts quantity 2
PROCESSOR
Processor frequency 3060 MHz
Graphics processor Radeon RX 9070 XT
Parallel processing technology support Not supported
Maximum displays per videocard 4
CUDA No
Graphics processor family AMD
TECHNICAL DETAILS
Warranty period 3 year(s)
WEIGHT & DIMENSIONS
Weight 1.26 kg
Height 132 mm
Depth 56 mm
Length 288 mm
