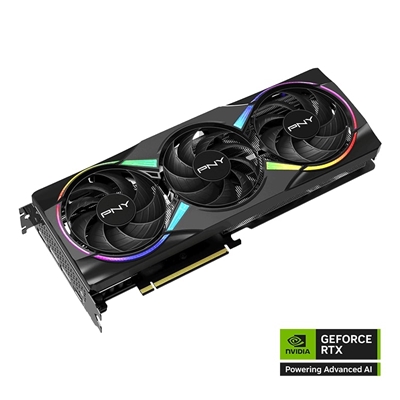

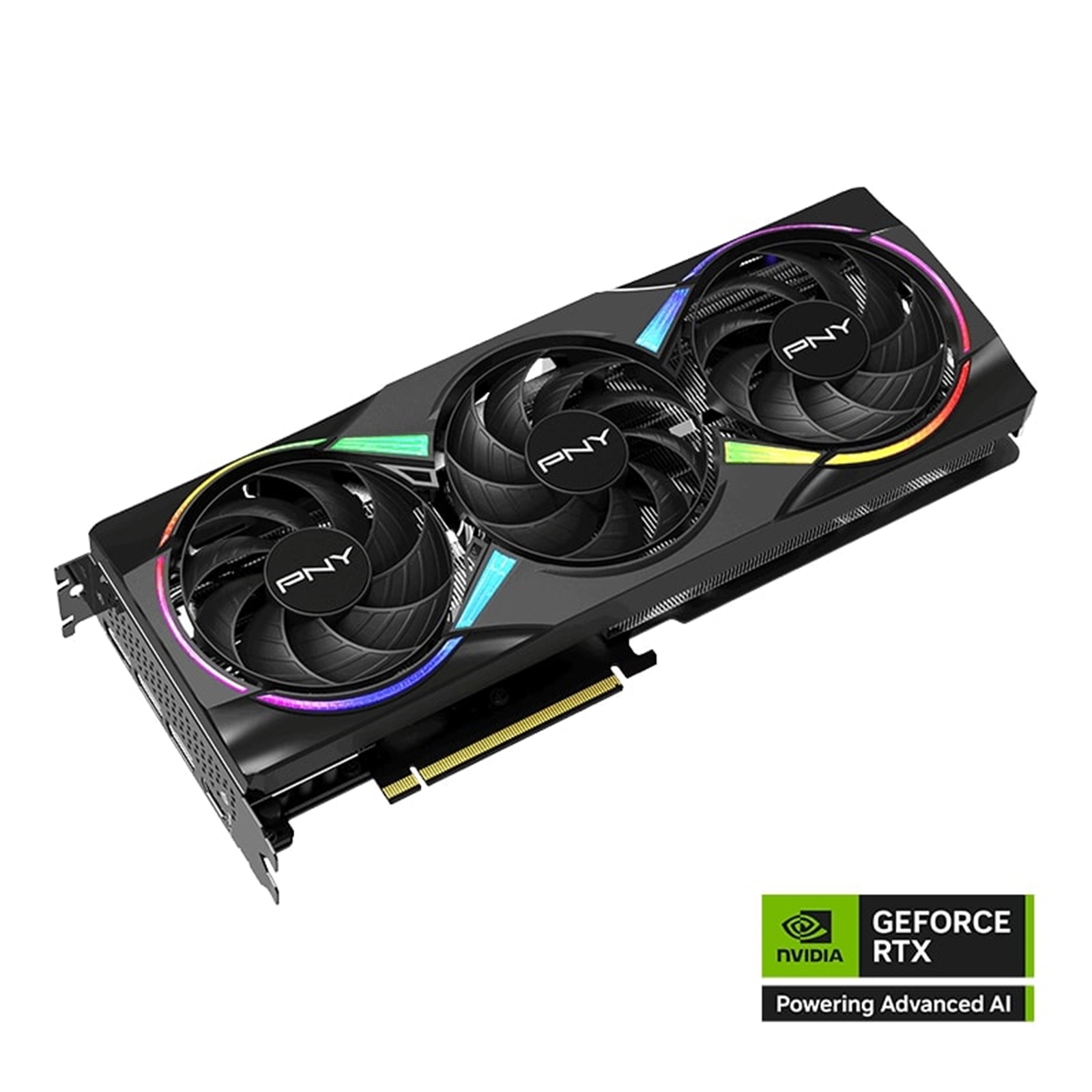

PNY GeForce RTX 5060 Ti 16GB EPIC-X RGB Overclocked Triple Fan GPU
Get game-changing performance with the PNY GeForce RTX 5060 Ti, powered by NVIDIA Blackwell. Game at high frame rates with DLSS 4, supercharge your creativity with NVIDIA Studio, and enable new experiences with the power of AI.
Features
NVIDIA Blackwell Architecture
16GB GDDR7 Memory
3x Display Port 1x HDMI
Specifications
Architecture
Blackwell
CUDA Cores
4608
Clock Speed
2407 MHz
Boost Speed
2692 MHz
Memory Speed (Gbps)
28
Memory Size
16 GB GDDR7
Memory Interface
128-bit
Memory Bandwidth (GB/sec)
448
TDP
180W
NVLink
Not Supported
Outputs
DisplayPort 2.1b (x3), HDMI 2.1b
Multi-Screen
4
Resolution
4K at 480Hz or 8K at 165Hz with DSC3
Power Input
1x8-pin
Bus Type
PCI-Express 5.0 x8
Card Dimensions
11.772 x 4.72" x1.57"; 2 Slot
Box Dimensions
15.04" x 7.64" x 2.842 / 382x194x72mm
System Requirements
PCI Express-compliant motherboard with one 2-width x8 graphics slot
One 8-pin supplementary power connector
Total graphics power 180 W
Required system power 600W2
Microsoft Windows?11 64-bit, Windows 10 (November 2018 or later) 64-bit, Linux 64-bit
Internet connection
Package Contains
PNY GeForce RTX 5060 Ti ARGB OC
There are currently no data sheets available for this product.
