Target Components

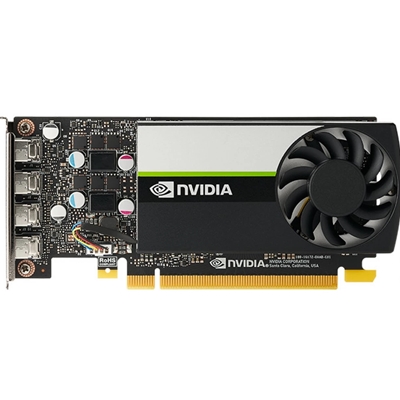

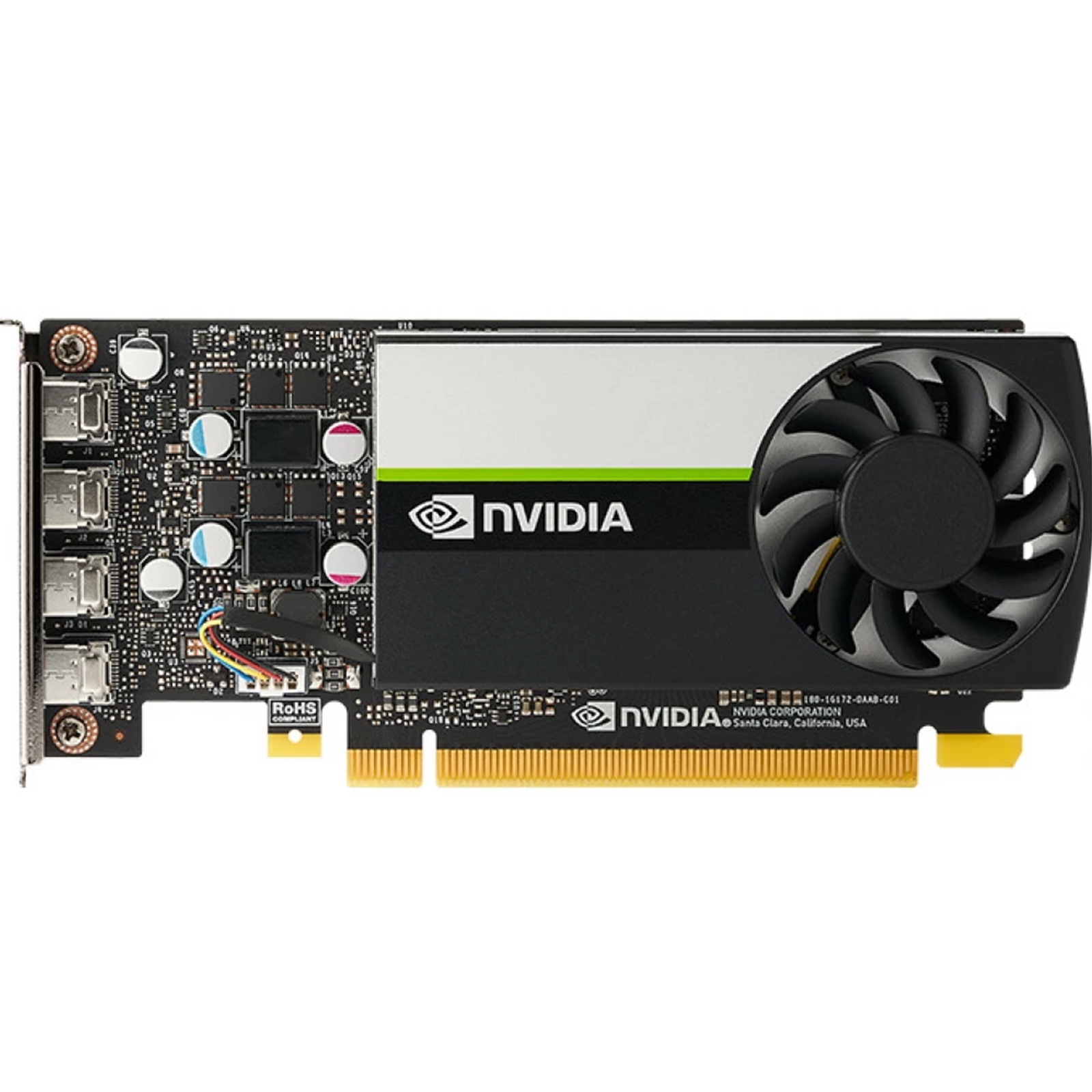

PNY NVIDIA Quadro T1000 Graphics Card, 4GB GDDR6, 896 CUDA Cores, 2.50 TFLOPS MHz, Single Fan Low Profile, 4x DisplayPorts

Key Specifications
Chipset ManufacturerNvidia
Chipset SeriesQUADRO
ChipsetT1000
Form Factor1x ATX (Low Profile Option)
Memory4GB
Fans1
RGBNo
/productImages/80/GRPNY-VCNT1000PB.JPG
/productImages/80/162272.JPG
/productImages/80/162273.JPG
/productImages/80/162274.JPG
Manufacturer : PNY
EAN : 3536403384692
Manufacturer Part Code : VCNT1000-PB
Weight : 0.5 kg
Login For Pricing

Key Specifications
Chipset ManufacturerNvidia
Chipset SeriesQUADRO
ChipsetT1000
Form Factor1x ATX (Low Profile Option)
Memory4GB
Fans1
RGBNo
Manufacturer :
PNY

EAN :
3536403384692

Manufacturer Part Code :
VCNT1000-PB

Weight :
0.5 kg
Recommended Products
1289Motherboards
See details
1282Case Cooling
See details
1284Power Supplies
See details

Full Performance in a Small Form Factor Solution
NVIDIA GPUs power the world's most advanced desktop workstations, providing the visual computing power required by millions of professionals as part of their daily workflow. All phases of the professional workflow, from creating, editing, and viewing 2D and 3D models and video, to working with multiple applications across several displays, benefit from the power that only a discreet GPU solution can provide. NVIDIA entry level professional GPUs provide advanced features and performance far beyond what is available with integrated GPU solutions – all in a low-profile package, enabling deployment in a wide range of small form factor workstations. Step up to the power of an NVIDIA discreet professional GPU.

The NVIDIA Turing architecture provides significant performance improvements with NVIDIA T1000, resulting in more than 50% graphics performance, compared to the previous generation P1000. Ultra-fast GDDR6 graphics memory technology provides twice the memory bandwidth of the previous generation.

Specification

Bus Standard
PCI Express x16 Gen3.0

DirectX
12

OpenGL
OpenGL 4.5

Memory
4GB GDDR6

CUDA CORES
896

Peak Single Precision FP32 Performance
2.50 TFLOPS

Memory Bandwidth
160 GB/s

Memory Bus
128-bit

Resolution
7680 x 4320 at 60 Hz
4x at 5K | 5120 x 2880 at 60 Hz

Interface
4 x Mini-Display Port 1.4

Multiview
4

HDR Support
Yes

Quad Buffered Stereo
Yes

Max Power Consumption
50w

Accessories
4 x Mini DP to DP adapters
1 x Quick Installation Guide

Dimensions
2.713" H 5.906" L, Single Slot
Manufacturer's Website:
Warranty:
3 Year Warranty, 1 Year RTB, 2 Years Manufacturers, please see www.pny.eu for more details.
DESIGN
Number of slots 1
Number of fans 1 fan(s)
Cooling type Active
Bracket height Low-Profile (LP)
ENERGY MANAGEMENT
Power consumption (max) 50 W
LOGISTICS DATA
Country of origin Taiwan
Harmonized System (HS) code 84733020
MEMORY
Graphics card memory type GDDR6
Memory bus 128 bit
Memory bandwidth (max) 160 GB/s
Discrete graphics card memory 4 GB
PACKAGING CONTENT
Interface adapters included DisplayPort female - mini DisplayPort male
PACKAGING DATA
Package weight 596 g
Interface adapters included DisplayPort female - mini DisplayPort male
PERFORMANCE
DirectX version 12.0
OpenGL version 4.5
Shader model version 5.1
HDCP Yes
PORTS & INTERFACES
Interface type PCI Express x16 3.0
Mini DisplayPorts quantity 4
DisplayPort version 1.4
PROCESSOR
Graphics processor T1000
Maximum resolution 7680 x 4320 pixels
Maximum displays per videocard 4
CUDA Yes
CUDA cores 896
Graphics processor family NVIDIA
SUSTAINABILITY
Sustainability compliance Yes
Sustainability certificates CE, REACH, RoHS
SYSTEM REQUIREMENTS
Windows operating systems supported Windows 10 x64
Linux operating systems supported Yes
TECHNICAL DETAILS
Harmonized System (HS) code 84733020
Sustainability compliance Yes
Sustainability certificates CE, REACH, RoHS
Compliance certificates CE, REACH, RoHS
WEIGHT & DIMENSIONS
Weight 200 g
Height 182 mm
Width 330 mm
Depth 50 mm
