Exceptional resolution support
The AMD Radeon Pro W7800 graphics card enhances visual experiences with its ability to support a maximum external resolution of 12288 x 6912. This feature ensures ultra-high-definition visuals for a wide range of applications, from professional design to immersive virtual environments.

Advanced memory technology
Equipped with 32 GB of GDDR6 SDRAM, the AMD Radeon Pro W7800 offers a substantial bandwidth of 576 GB/s. This high-capacity, fast memory enhances performance in demanding applications, allowing for smooth handling of complex textures and large data sets

Robust computing power
With 70 Compute Units, 4480 stream processors, and 70 Ray Accelerators, the AMD Radeon Pro W7800 is engineered for intensive computational tasks. Its architecture is designed to accelerate workloads, offering 45. 2 Tflops peak half single precision matrix (FP32) performance and 90. 5 Tflops peak half-precision floating point performance

Comprehensive video support
This graphics card is VR ready and supports a wide range of video outputs and APIs including DirectX 12 Ultimate, OpenCL 2. 1, OpenGL 4. 6, and Vulkan 1. 3. Its versatility makes it suitable for a variety of professional applications, from 3D modeling to video editing

Innovative features for professionals
The AMD Radeon Pro W7800 comes packed with features tailored for professionals, such as AMD Infinity Cache, AMD Remote Workstation, and Radeon ProRender. These features optimize performance and productivity, enabling seamless remote work and efficient rendering of complex projects

Bus Type
PCI Express 4.0 x16

Graphics Engine
AMD Radeon Pro W7800

Memory
32 GB GDDR6

Stream Processors
4480

Memory Interface
256-bit

Max Resolution
12288 x 6912

Max Resolution Details
DisplayPort: 12288 x 6912 at 120 Hz (single display) / 6144 x 3456 at 60 Hz (dual displays) / 4096 x 2160 at 120 Hz (four displays)

Max Monitors Supported
4

Interfaces Details
3 x DisplayPort � Mini DisplayPort

API Supported
DirectX 12 Ultimate, OpenGL 4.6, OpenCL 2.1, Vulkan 1.3

Dimensions (WxDxH)
28 cm

Manufacturer's Website:

www.amd.co.uk

Warranty:

AMD Processors in a box (PIB): 3 Year Limited Manufacturer Warranty.

Coverage

Year 1: Return to Target or AMD for warranty service.

Years 2-3: Warranty service provided directly by AMD

AMD Warranty Support

AMD Warranty Portal: https://www.amd.com/en/registration/warranty-services-portal.html

Please Note: First-time users must create an AMD account to access warranty services.

AMD Help & Support: https://www.amd.com/en/support.html

Required Documentation for AMD Warranty Claims

1. Product details including serial number and model number.

2. Clear explanation of the problem you're experiencing

3. Proof of purchase (receipt or invoice).

4. Photo of the CPU

DESIGN
Cooling type	Active
Bracket height	Full-Height (FH)
ENERGY MANAGEMENT
Minimum system power supply	650 W
Supplementary power connectors	2x 8-pin
MEMORY
Graphics card memory type	GDDR6
Data transfer rate	576 Gbit/s
Memory bus	256 bit
Discrete graphics card memory	32 GB
PERFORMANCE
TV tuner integrated	No
DirectX version	12.0
OpenGL version	4.6
Dual Link DVI	No
OpenCL version	2.2
PORTS & INTERFACES
Interface type	PCI Express x16 4.0
DVI-I ports quantity	0
DVI-D ports quantity	0
HDMI ports quantity	0
DisplayPorts quantity	3
Mini DisplayPorts quantity	1
DisplayPort version	2.1
PROCESSOR
Graphics processor	Radeon PRO W7800
Maximum resolution	12288 x 6912 pixels
Stream processors	4480
Graphics processor family	AMD
Lithography	6 nm
Infinity cache	64 MB
SYSTEM REQUIREMENTS
Windows operating systems supported	Windows 10, Windows 11
Linux operating systems supported	Yes
WEIGHT & DIMENSIONS
Length	280 mm

Target Components

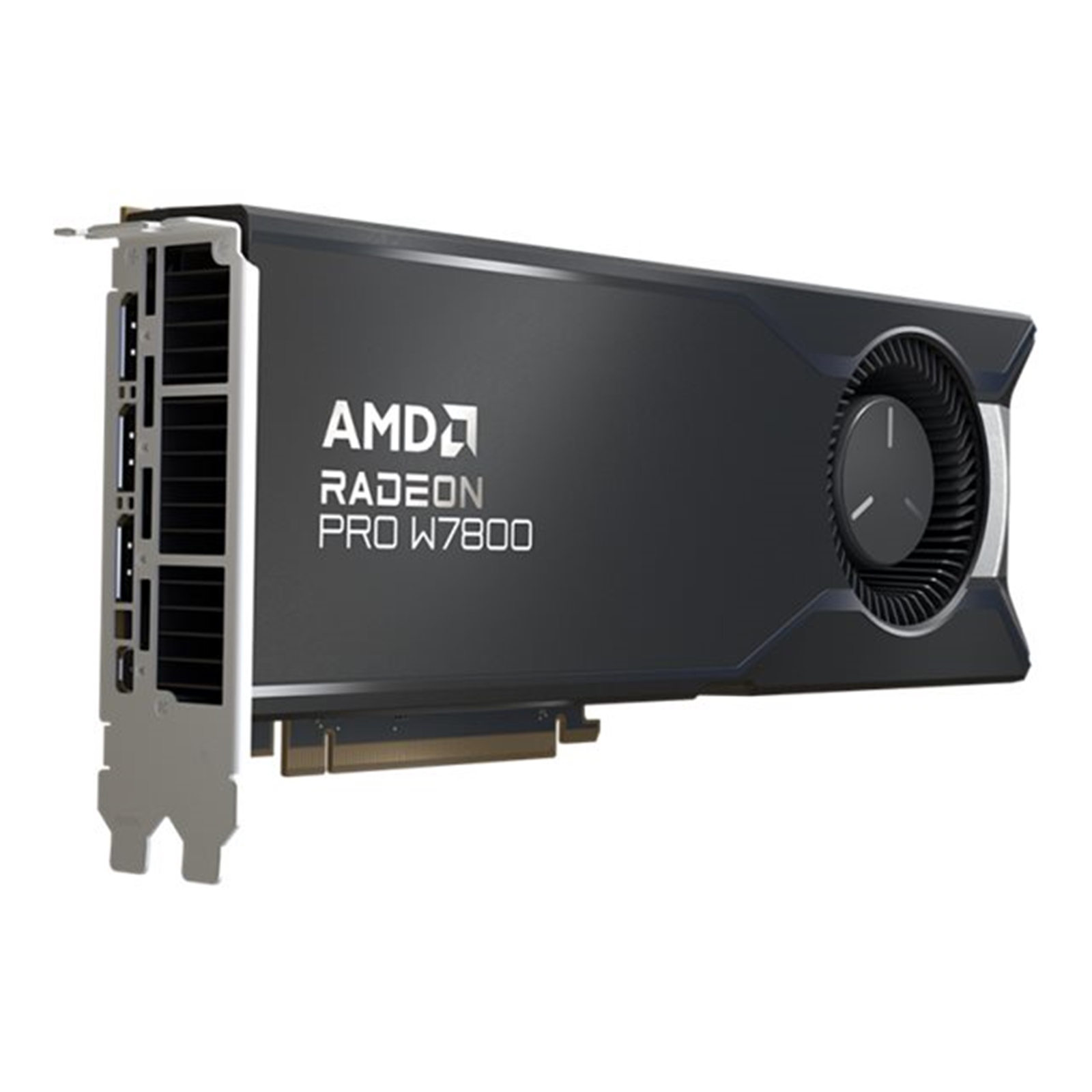

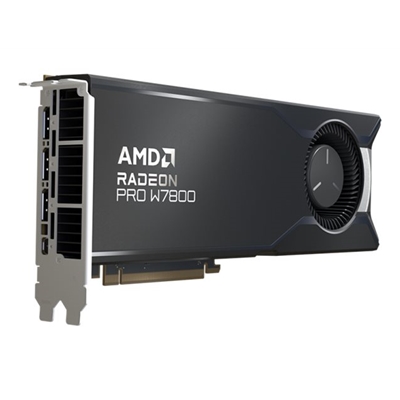

AMD Radeon PRO W7800 RDNA 3 32GB Professional Graphics Card, 4480 Streams, Single Fan, 3x DisplayPort / 1x Mini DisplayPort
