Enhanced connectivity
Equipped with four Mini DisplayPort interfaces supporting HDCP and DisplayPort 1. 4a standards, the NVIDIA RTX A1000 facilitates secure, high-resolution connections for a multi-monitor setup

Powerful performance
With a 128-bit bus width and 8 GB of GDDR6 SDRAM, the NVIDIA RTX A1000 delivers a bandwidth of 192 GBps, ensuring smooth and efficient data processing for demanding applications

Advanced graphics support
The card's support for multiple APIs, including DirectX 12, OpenCL 3. 0, and Vulkan 1. 3, alongside a robust 2304 CUDA cores, enables superior rendering and computing capabilities for professional workflows

Immersive visual experience
Achieve stunning visuals with a maximum external resolution of 7680 x 4320 at 30 Hz, supported by NVIDIA's advanced technologies for a seamless, high-fidelity gaming and professional visualization experience

Efficient design
The low-profile form factor combined with a power consumption of just 50 watts makes the NVIDIA RTX A1000 an efficient choice for compact systems requiring high-performance graphics solutions

Bus Type
PCI Express 4.0 x8

Graphics Engine

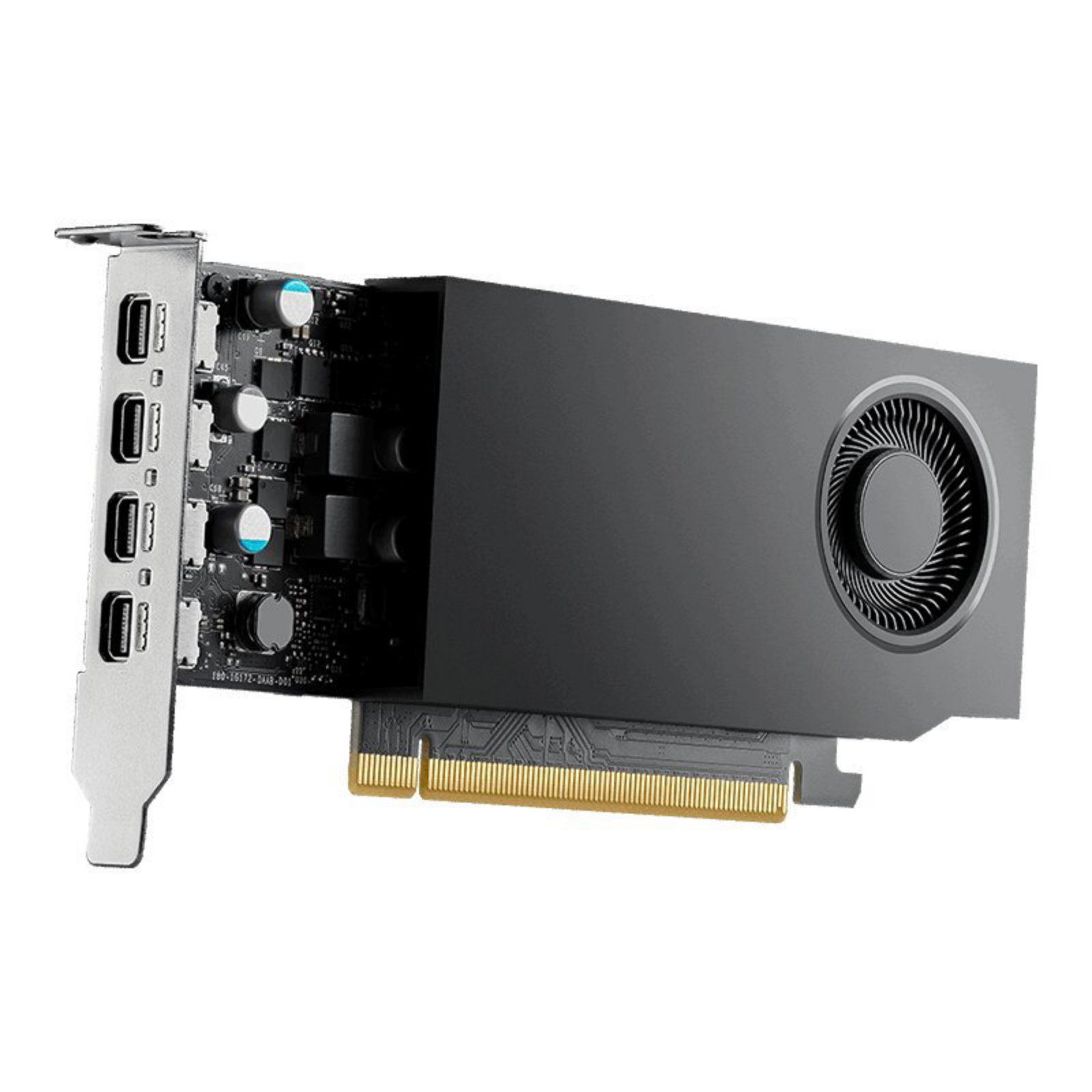

NVIDIA RTX A1000

Memory
8 GB GDDR6

CUDA Cores
2304

Memory Interface
128-bit

Max Resolution
7680 x 4320

Max Resolution Details
DisplayPort: 7680 x 4320 at 30 Hz

Max Monitors Supported
4

Interfaces Details
4 x Mini DisplayPort (HDCP)

API Supported
OpenCL 3.0, DirectCompute, DirectX 12, Shader Model 6.6, OpenGL 4.6, Vulkan 1.3

Dimensions (WxDxH)
16.3 cm x 6.86 cm

Package Type
OEM

Manufacturer's Website:

www.pny-europe.com

Warranty:

3 Year Warranty, 1 Year RTB, 2 Years Manufacturers, please see www.pny.eu for more details.

DESIGN
Number of slots	1
Cooling type	Active
Bracket height	Low-Profile (LP)
ENERGY MANAGEMENT
Power consumption (typical)	50 W
MEMORY
Graphics card memory type	GDDR6
Memory bus	128 bit
Memory bandwidth (max)	192 GB/s
Discrete graphics card memory	8 GB
PERFORMANCE
TV tuner integrated	No
DirectX version	12.0
OpenGL version	4.6
Shader model version	6.6
Dual Link DVI	No
HDCP	Yes
HDCP version	2.2
PORTS & INTERFACES
Interface type	PCI Express x8 4.0
DVI-I ports quantity	0
DVI-D ports quantity	0
HDMI ports quantity	0
DisplayPorts quantity	0
Mini DisplayPorts quantity	4
DisplayPort version	1.4a
PROCESSOR
Graphics processor	RTX A1000
Maximum resolution	7680 x 4320 pixels
CUDA	Yes
CUDA cores	2304
Graphics processor family	NVIDIA
WEIGHT & DIMENSIONS
Height	69 mm
Length	163 mm
