Target Components

5 x RJ-45 2.5 Gigabit Ethernet Ports
1 x SFP+ 10GbE Port for Uplink / Fibre
Compact form factor
Wall Mountable
Fanless (Silent) Operation
Low Power Consumption

2.5 Gigabit Ethernet Ports
A significant speed upgrade with faster data transfer rates. Improved bandwidth to accommodate more devices without compromising performance, providing smoother, faster, and more reliable connections.
Benefits: Ideal for high-demand applications such as HD video streaming, large file transfers, gaming, and cloud services.

SFP+ 10GbE Port for Uplink / Fibre
Utilise ultra-fast, high-bandwidth fibre uplink to connect to core networks, servers, or other switches with 1 SFP+ 10GbE port. Enable faster data transfers between your device and external network infrastructure.
Benefits: Seamless integration with existing network infrastructures and supporting high-volume data transfers.

Compact Form Factor
Reliable performance in a durable metal casing, ideal for smaller office spaces and suitable for easy accessibility.
Benefits: Placement option flexibility that allows for discreet and accessible display.

Plug and Play Deployment
The VigorSwitch Q60x unmanaged switch just needs power to connect devices on the network. The switch is aware of untagged and VLAN tag traffic that can be sent without any configuration.
Benefits: Fast and easy installation.

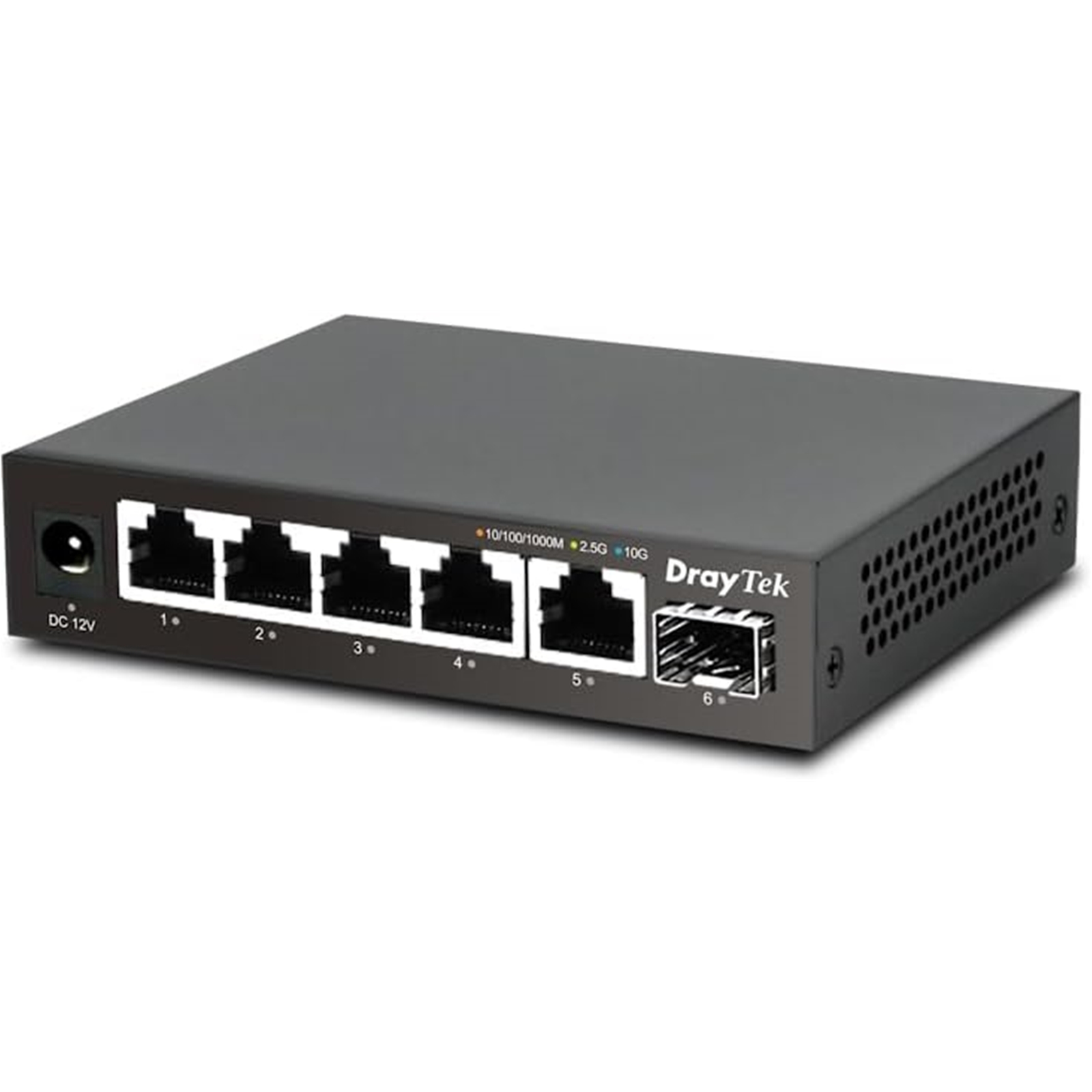

VigorSwitch Q60x - Unmanaged Switch with 5 x 2.5 GbE Ports and 1 x 10Gbps SFP+ Uplink
VigorSwitch Q60x is a small, high-performance unmanaged 2.5 Gigabit Ethernet switch with 5 x 2.5-Gigabit RJ-45 LAN ports and 1 x 10-Gigabit SFP+ port. Use the faster 2.5 GbE ports for high-speed connections between switches, servers, and wireless access points such as the VigorAP 805. The 10Gb SFP+ interface can be an ideal option for uplink purposes to connect to a router or another switch.

Our lightweight, low-power network switch is easy to deploy. This VLAN-aware device requires no configuration, offers fanless operation, and comes with a power supply.

Specifications

Physical Interfaces
Factory Reset Button
AC Power Socket
5 RJ-45 Ethernet Ports – 10/100/1000/2500Mbps
1 SFP+ Port – 1000Mbps/10Gbps

Networking Performance
Switching Capacity: 45Gbps
Forwarding Rate: 33.5Mpps (64 bytes)
MAC Addresses Supported: 4k
Jumbo Frames up to 12KB
Packet Buffer size: 8Mbit

General IEEE Standards Compliance
3u 100Base-T
3z 1000Base-X
3ab 1000Base-T
3bz 2.5GBase-T
3ae 10GBase-X
3x Flow Control Capability
3 Auto-negotiation
3az Energy Efficient Ethernet

Operating Requirements
AC Power Input Requirements: 100-240V @ 0.3A
AC Power supply: External
Maximum Power Consumption: 4.85W
Cooling: Fanless (Silent) Passive Cooling
Operating Temperature: 0 oC to 45 oC
Storage Temperature: -40 oC to 70 oC
Operating Humidity: 10% to 90% RH (non-condensing)
Storage Humidity: 5% to 95% RH (non-condensing)

Physical Specifications
Dimensions (W x D x H): 114 x 90 x 25mm
Rack mountable: No
Wall mountable: Yes
Weight (excluding SFP modules/cables): 250g

Box Content
VigorSwitch Q60x Network Switch
UK Power Adapter
Quick Start Guide

Warranty
Two (2) Year Manufacturer's RTB
Optional VigorCare Enhanced Warranty Available
VigorCare A3 3 Year Subscription: VCARE-A3
VigorCare A5 5 Year Subscription: VCARE-A5
