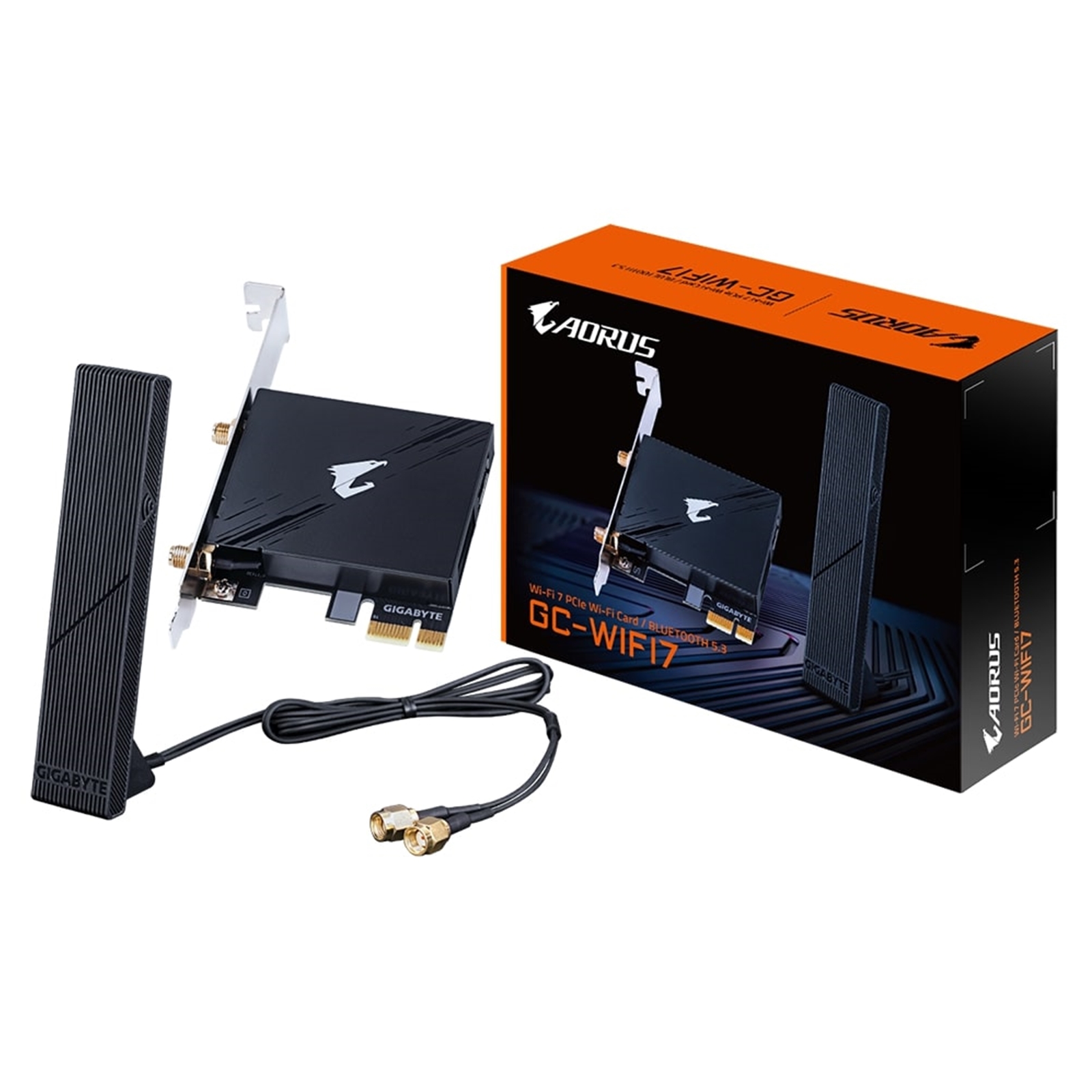

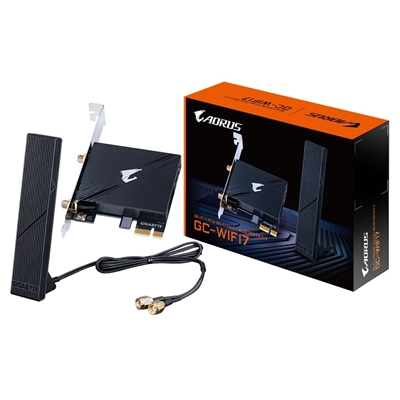

GC-WIFI7
Key Features
Built-in Wi-Fi 7 module
Supports high-speed wireless connections of up to 5800Mbps
Offers up to 320MHz bandwidth support across the 2.4GHz, 5GHz, and 6GHz bands
MLO (Multi-Link Operation) enables simultaneous connections on two bands
MRU (Multiple RU) enhances interference mitigation and OFDMA efficiency
4K-QAM allows for higher transmission rates, resulting in increased efficiency
Bluetooth 5.3 Compatible
Supports MU-MIMO TX/RX
Complies with IEEE 802.11 a/b/g/n/ac/ax/be standards
Equipped with an ultra-high gain 2Tx2R antenna, supporting both directional and omnidirectional signals
PCIe x1 Interface Card
Upgrade Your PC to Wi-Fi 7
5800 Mbps
Wi-Fi 7
2400Mbps
Wi-Fi 6E
867Mbps
Wi-Fi 5
Wi-Fi 7 brings you the Ultimate VR experience
Wi-Fi 7 provides significant benefits to the realm of virtual reality (VR). With its high bandwidth and low latency capabilities, Wi-Fi 7 ensures a smooth and immersive VR experience.
320/160 MHz channels
Wi-Fi 7 supports up to 320 MHz channels, providing a significant increase in bandwidth for faster data rates.
Multi-link Operation
With MLO(Multi-Link Operation) technology, you can allocate the 2.4GHz band for streaming and the 5/6GHz band for gaming, resulting in a higher quality network experience with fewer interruptions.
4K-QAM
With 4K-QAM technology, Wi-Fi 7 improves data throughput, resulting in faster file transfers and seamless streaming.
Deterministic low latency
Deterministic low latency ensures minimal delays, making it ideal for real-time applications like video conferencing and online gaming.
GIGABYTE Ultra-high Gain Antenna
Experience enhanced signal strength with the GIGABYTE Ultra-high gain Antenna, which incorporates a smart antenna function to optimize Wi-Fi signal transmission.
Direction Signal
up to 5dBi
Omnidirectional Signal
up to 4dBi
Magnetic Base
Specifications
Ports & Interfaces
Connectivity
Wireless
Host interface
PCI Express
Interface
WLAN / Bluetooth
Network
Maximum data transfer rate
5800 Mbit/s
Networking standards
IEEE 802.11be, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-F
Yes
Wi-Fi band
Tri-band (2.4 GHz / 5 GHz / 6 GHz)
Frequency range
2.4 - 6 GHz
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Bluetooth
Yes
Bluetooth version
5.3
Packaging Content
Quick installation guide
Yes
Design
Internal
Yes
Component for
PC
Product color
Black
Antenna
Yes
Antenna type
2x2
Weight &Dimensions
8.27 x 5.83 x 2.16 inches
0.69 lbs.
Warranty:
Gigabyte 3-Year Return-To-Base Warranty
Warranty Length: 3 years
Warranty Type:Return-To-Base
Warranty Coverage: Gigabyte's 3-year warranty includes a 30-day DOA period covering manufacturing defects and faults. If a product becomes faulty within the first 30 days of purchase, it can be returned to Target under the 30-Day DOA agreement, at which point we will replace it where possible, or offer account credit. If it becomes faulty after the first 30 days the product will be repaired or replaced with a graded unit. Account credit will be unavailable outside of the 30-day DOA agreement.
The end user will need to return it to the reseller they purchased it from originally. If the unit is found faulty within the first 30 days of purchase, it can be returned to the reseller to claim under DOA with Target - a proof of end-user purchase WILL be required.
Warranty Instructions: RESELLERS - please raise a Target RMA.
END USERS - in the first instance, please return it to the reseller you originally purchased it. Target is unable to deal with end-user warranty issues. In the event an end-user is unable to contact the reseller, they must contact Gigabyte directly via Gigabyte Returns.
Warranty Information: https://www.gigabyte.com/uk/Support/Consumer/Warranty
Warranty Contact: Gigabyte Returns
DESIGN
|
Internal |
Yes |
Antenna type |
2x2 |
Product colour |
Black |
Antenna |
Yes |
Component for |
PC |
NETWORKING
|
Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
Maximum data transfer rate |
5800 Mbit/s |
Bluetooth version |
5.3 |
Networking standards |
IEEE 802.11be, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Bluetooth |
Yes |
Wi-Fi |
Yes |
Frequency range |
2.4 - 6 GHz |
Wi-Fi band |
Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
PACKAGING CONTENT
|
Quick installation guide |
Yes |
PORTS & INTERFACES
|
Interface |
WLAN / Bluetooth |
Connectivity technology |
Wireless |
Host interface |
PCI Express |
