Target Components
Target Components
Home    Home, Business & Enterprise Networking    Home Networking    IP Cameras    NPUBI-UVCDOORLW

Target Components

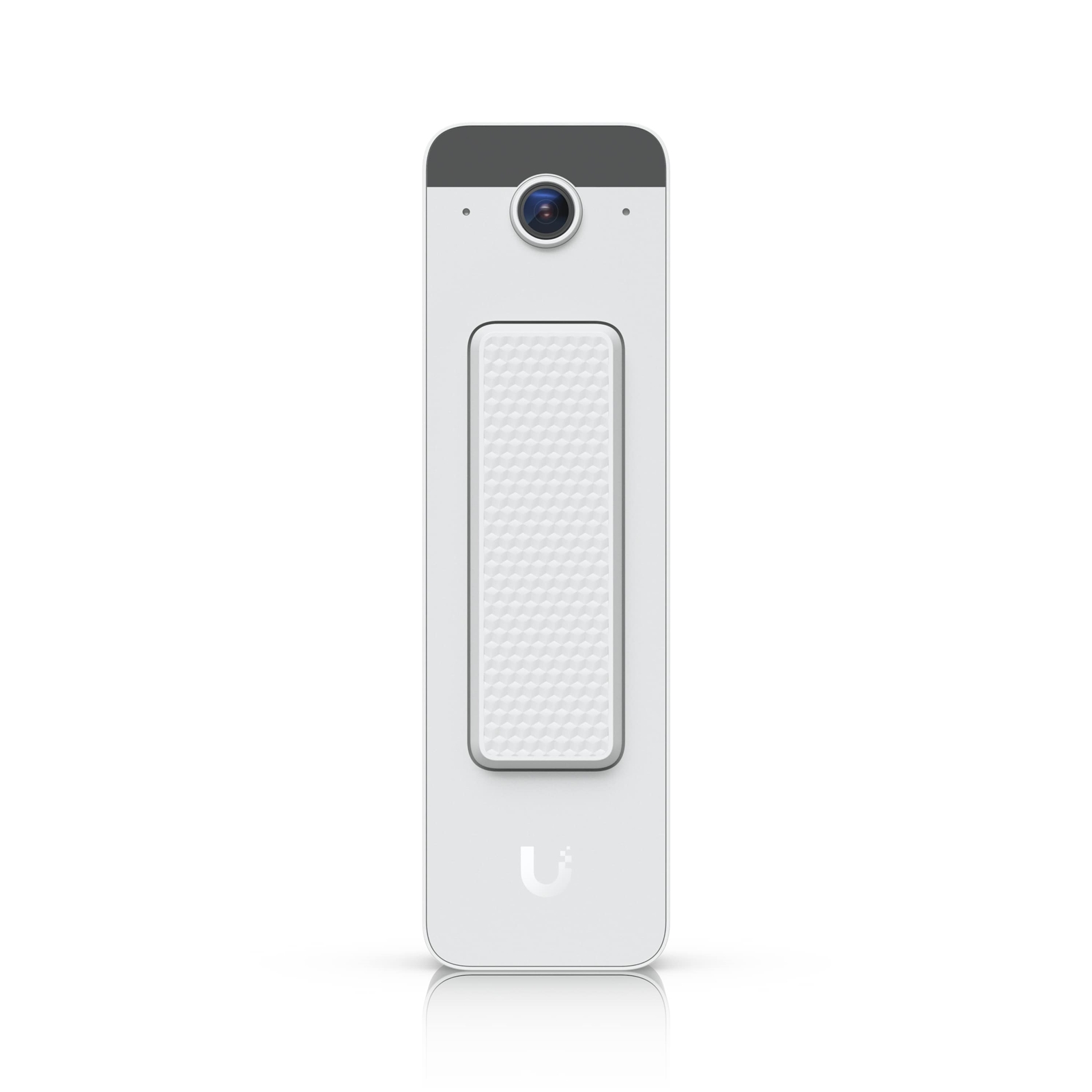

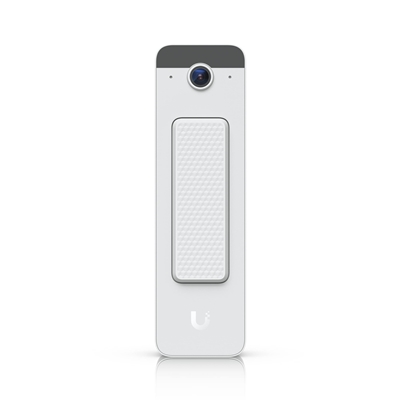

Ubiquiti Unifi (UVC-Doorbell-Lite-W) Compact PoE video doorbell with two-way audio and versatile mounting options.

NPUBI-UVCDOORLW
Key Specifications
Bullet/DomeAccessory
SD Card SlotNo
Resolution5mp
Lens SizeN/A
/productImages/80/NPUBI-UVCDOORLW.JPG
/productImages/80/212710.JPG
/productImages/80/212711.JPG
/productImages/80/212712.JPG
/productImages/80/212713.JPG
/productImages/80/212714.JPG
/productImages/80/212715.JPG
/productImages/80/212716.JPG
/productImages/80/212717.JPG
Manufacturer : UBIQUITI
EAN : 0810010075208
Manufacturer Part Code : UVC-Doorbell-Lite-W
Weight : 0.35 kg
Login For Pricing

Key Specifications
Bullet/DomeAccessory
SD Card SlotNo
Resolution5mp
Lens SizeN/A
Manufacturer :
UBIQUITI

EAN :
0810010075208

Manufacturer Part Code :
UVC-Doorbell-Lite-W

Weight :
0.35 kg
Recommended Products
849Network Attached Storage
See details
840Switches
See details
824Network Cables
See details

Ubiquiti Unifi Compact PoE video doorbell

Specifications

Overview

Dimensions
137 x 40 x 26.4 mm
(5.4 x 1.6 x 1")

IR Night Vision
5 m (16 ft)

Smart Detections (People, Vehicles, Animals)
Yes

Resolution
5MP

Field of View
H: 95.8, V: 131., D: 175.9

Audio
Two-way audio

Weatherproofing
IPX5

Mounting
Wall, 20 wedge (Included)
Gang box, junction box (Optional)

Performance

Networking Interface
10/100 MbE port

Video

Image Settings
Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay

Max. Frame Rate
24 FPS

Resolution
5MP 1920 x 2560 (3:4)

Optics

Sensor
1/2.7" 5MP

Lens
Fixed focal length

Night Mode
Built-in IR LED illumination and IR cut filter

Hardware

Max. Power Consumption
8W

Supported Voltage Range
37—57V DC

Power Method
PoE

Processor
Dual-core Arm Cortex-A7 based chip

Weight
Device: 142 g (5 oz)
With flat wall mount: 165 g (5.8 oz)
With 20 wedge mount: 179 g (6.3 oz)

Enclosure Material
Polycarbonate, metal

Mount Material
Formed sheet metal

Button
(1) Ring button
(1) Factory-reset

Ambient Operating Temperature
-30 to 50 C (-22 to 122 F)

Ambient Operating Humidity
20 to 90% noncondensing

NDAA Compliant
Yes

Certifications
CE, FCC, IC

Warranty:
Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.
CAMERA
Megapixel (approx.) 5 MP
Frame rate 24 fps
Night vision Yes
Maximum video resolution 2560 x 1920 pixels
Night vision distance 5 m
DESIGN
Product colour White
Indication light Yes
Reset button Yes
Housing material Metal, Polycarbonate (PC)
FEATURES
Built-in microphone Yes
Built-in speaker(s) Yes
International Protection (IP) code IPX5
Connection type Wired
Weatherproof Yes
OPERATIONAL CONDITIONS
Operating relative humidity (H-H) 20 - 90%
Operating temperature (T-T) -30 - 50 °C
PACKAGING CONTENT
Quantity 1
Manual Yes
Mounting kit Yes
POWER
Power source type PoE
TECHNICAL DETAILS
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)
WEIGHT & DIMENSIONS
Weight 142 g
Height 137 mm
Width 40 mm
Depth 26.4 mm
