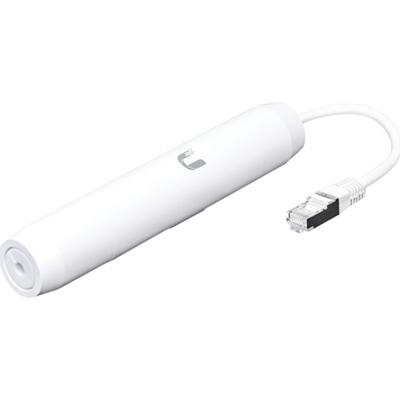

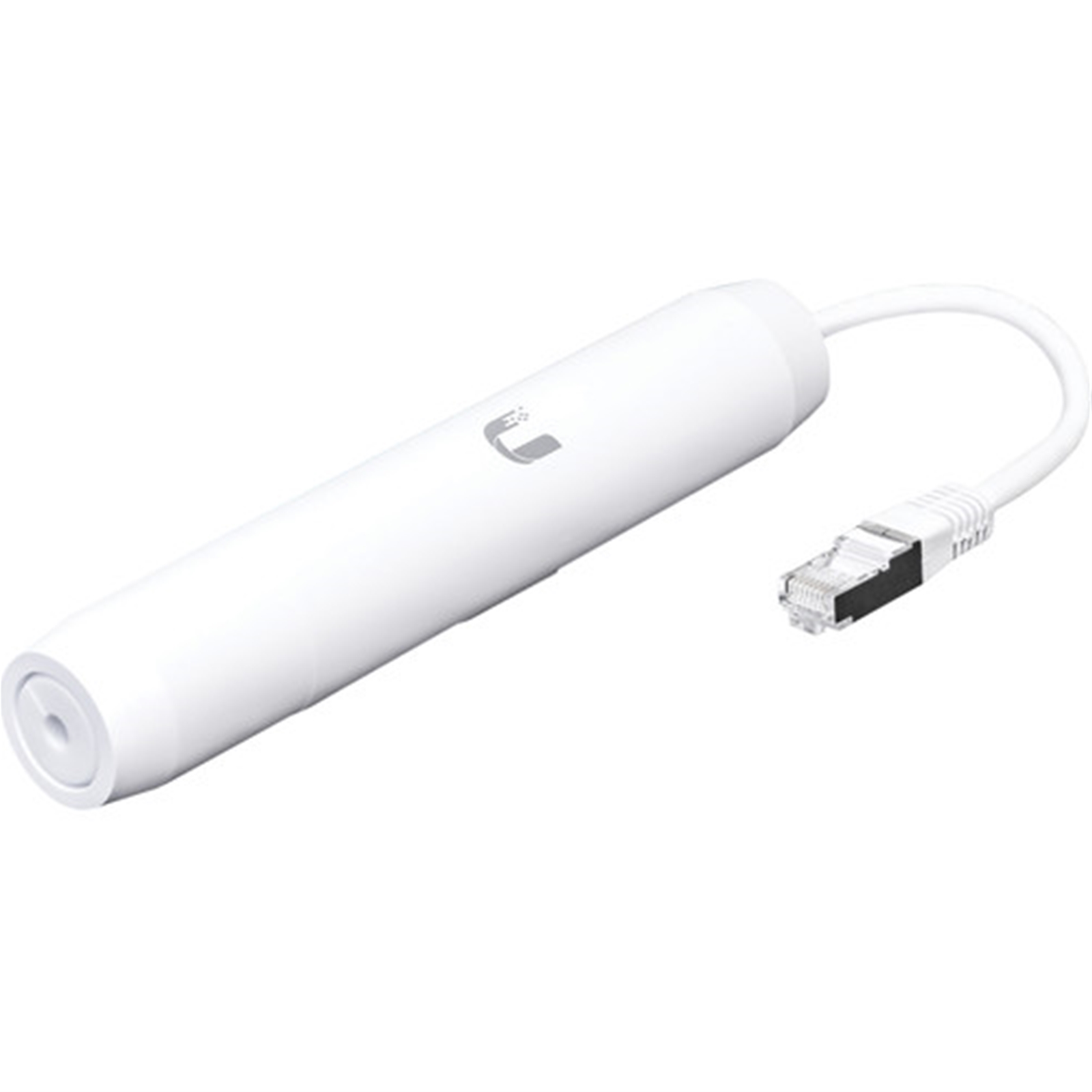

Ubiquiti Instant 802.3af Outdoor Gigabit Adapter - INS-3AF-O-G

The Ubiquiti Instant 802.3af Outdoor Gigabit Adapter (INS-3AF-O-G) is the new and improved, gigabit version of the INS-8023AF-O.

Converting any 48V 802.3af supply into 24V passive PoE, compatible with many Ubiquiti products.

Specifications

Product code
INS-3AF-O-G

Dimensions
30.2 x 166 mm (1.19 x 6.54")

Weight
90 g (3.17 oz)

Networking Interface
1 x Gigabit RJ45 Port
1 x Gigabit Ethernet Cable

Operating Temperature
-30 to 70C

Power Input
48V, 802.3af

Max. Power Output
24V, 0.5A

Power Method
24V Passive PoE (Pairs 4, 5+; 7, 8 Return)

Ethernet ESD/Surge Protection
15kV

Box Contents
1 x INS-3AF-O-G

Warranty:

Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.

ENERGY MANAGEMENT
Input voltage	48 V
Input current	0.5 A
Output current	0.5 A
Power over Ethernet (PoE) voltage	48 V
Surge protection voltage	15 kV
FEATURES
Product colour	White
Surge protection	Yes
LOGISTICS DATA
Harmonized System (HS) code	85044095
NETWORKING
Networking standards	IEEE 802.3af
Power over Ethernet (PoE)	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
OPERATIONAL CONDITIONS
Operating temperature (T-T)	-30 - 70 °C
PORTS & INTERFACES
Ethernet LAN (RJ-45) ports	2
RJ-45 input ports	1
RJ-45 output ports	1
TECHNICAL DETAILS
Harmonized System (HS) code	85044095
WEIGHT & DIMENSIONS
Weight	90 g
Height	30.2 mm
Width	30.2 mm
Depth	366.6 mm
