Power over Ethernet Adapters

PoE Adapters power Ubiquiti products that support passive PoE.

Device Protection
PoE Adapters are highly reliable, and when used with Ubiquiti TOUGHCable, they provide earth grounding and surge protection to help protect against electrostatic discharge (ESD) events.

Convenient Wall-Mounting
The 24V, 0.5A models, POE-24-12W and POE-24-12W-G, are wall-mountable using the optional wall-mount brackets.

Seamless airGateway Compatibility
The 24V, 0.5A model works with the airGateway to bridge airMAX connections to Wi-Fi at customer locations.

Specifications

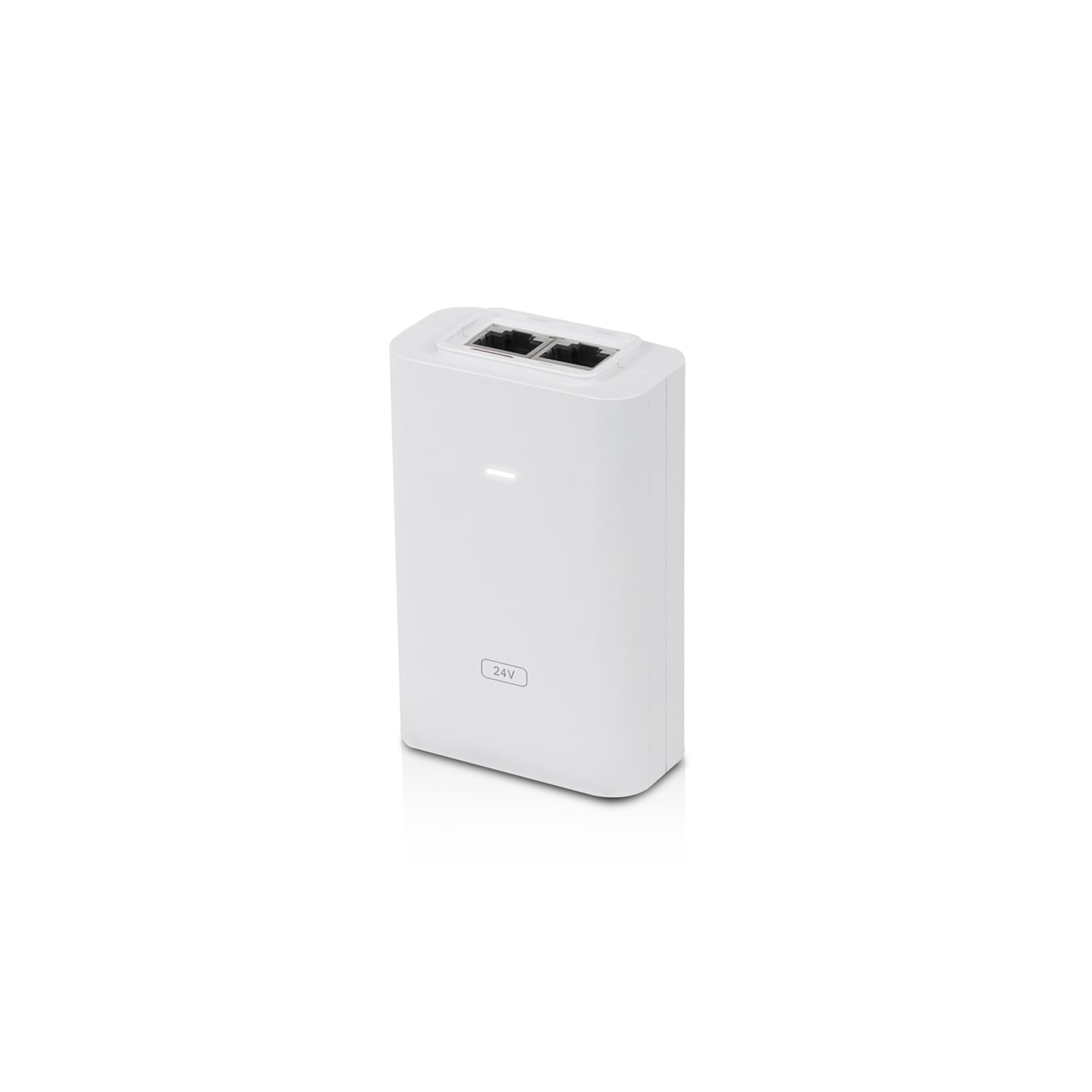

Model: POE-24-12W-G-WH
Output Voltage: 24VDC @ 0.5A
Gigabit LAN Port: Yes

Warranty:

Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.

ENERGY MANAGEMENT
AC adapter input voltage	100 - 240 V
AC adapter frequency	50/60 Hz
Input current	0.3/0.2 A
Output current	0.5 A
Power over Ethernet (PoE) voltage	24 V
Power plug type	Type C
FEATURES
Certification	CE, FCC, IC, UL
Product colour	White
Surge protection	Yes
NETWORKING
Ethernet interface type	Gigabit Ethernet
OPERATIONAL CONDITIONS
Operating relative humidity (H-H)	35 - 95%
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating temperature (T-T)	32 - 104 °F
PACKAGING CONTENT
Number of products included	1 pc(s)
PORTS & INTERFACES
Ethernet LAN (RJ-45) ports	2
WEIGHT & DIMENSIONS
Dimensions (WxDxH)	89 x 46 x 33 mm
Weight	75 g
