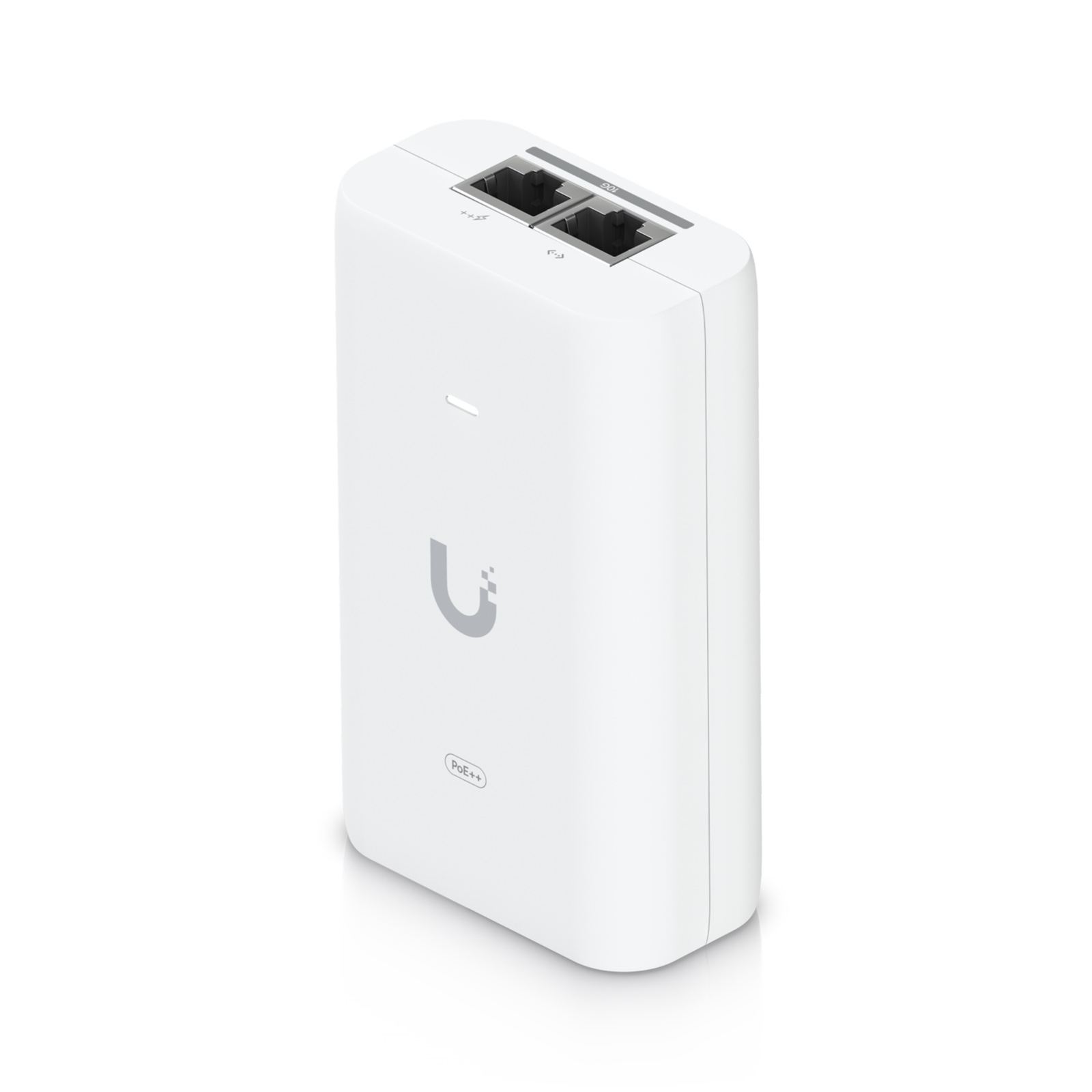

An adapter that can power UniFi PoE++ devices, reduce dependency on PoE switch power, and provide a Multi-Gigabit LAN connection.

Delivers up to 60W of PoE++
Surge, peak pulse, and overcurrent protection
Contains RJ45 data input, AC cable with earth ground, and PoE++ output
LED indicator for status monitoring

Dimensions
106 x 63 x 34 mm (4.2 x 2.5 x 1.3")

Weight
210 g (7.4 oz)

Output Voltage
54V DC @ 1.12A

LAN Activity Indicator
No

Gigabit LAN Port
Yes, up to 10 GbE

Remote Reset Capability
No

Reset Button
No

Rated Voltage
100—240V AC @ 50/60Hz

Input Current
1.5A max.

Inrush Current
<150A peak @ 230V AC

Efficiency
>88%

Output Ripple
1% max.

Switching Frequency
65 kHz

Line Regulation
< 2%

Load Regulation
< 5%

2-Pair Powering
No

4-Pair Powering
Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)

Data In / POE
RJ45 shielded socket

Surge Protection
Difference and common mode

Clamping Protection
11V data, 60V power

Max. Surge Discharge
1500A power

Peak Pulse Current
36A data

Shunt Capacitance
<5 pF Data

Response Time
<1 ns

Max. PoE+ wattage per port by PSE
60W

Certifications
CE, FCC, IC, UL, UKCA, KC, CCC, RoHS

Warranty:

Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.

CERTIFICATES
Compliance certificates	CCC, CE, Federal Communications Commission (FCC), Industry Canada (IC), KC, RoHS, UKCA, UL
ENERGY MANAGEMENT
AC adapter input voltage	100 - 240 V
AC adapter frequency	50/60 Hz
Input current	1.5 A
Output current	1.12 A
Power over Ethernet (PoE) voltage	54 V
Total Power over Ethernet (PoE) budget	60 W
FEATURES
LED indicators	Status
Wall mountable	Yes
Product colour	White
Power protection features	Over current, Peak pulse, Surge protection
Surge protection	Yes
NETWORKING
Power over Ethernet (PoE)	Yes
Ethernet LAN data rates	10,100,1000,10000 Mbit/s
Ethernet interface type	10 Gigabit Ethernet
OPERATIONAL CONDITIONS
Operating relative humidity (H-H)	10 - 95%
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating temperature (T-T)	32 - 104 °F
PACKAGING CONTENT
Number of products included	1 pc(s)
PORTS & INTERFACES
Ethernet LAN (RJ-45) ports	2
TECHNICAL DETAILS
Compliance certificates	CCC, CE, Federal Communications Commission (FCC), Industry Canada (IC), KC, RoHS, UKCA, UL
WEIGHT & DIMENSIONS
Weight	210 g
Height	106 mm
Width	63 mm
Depth	34 mm
