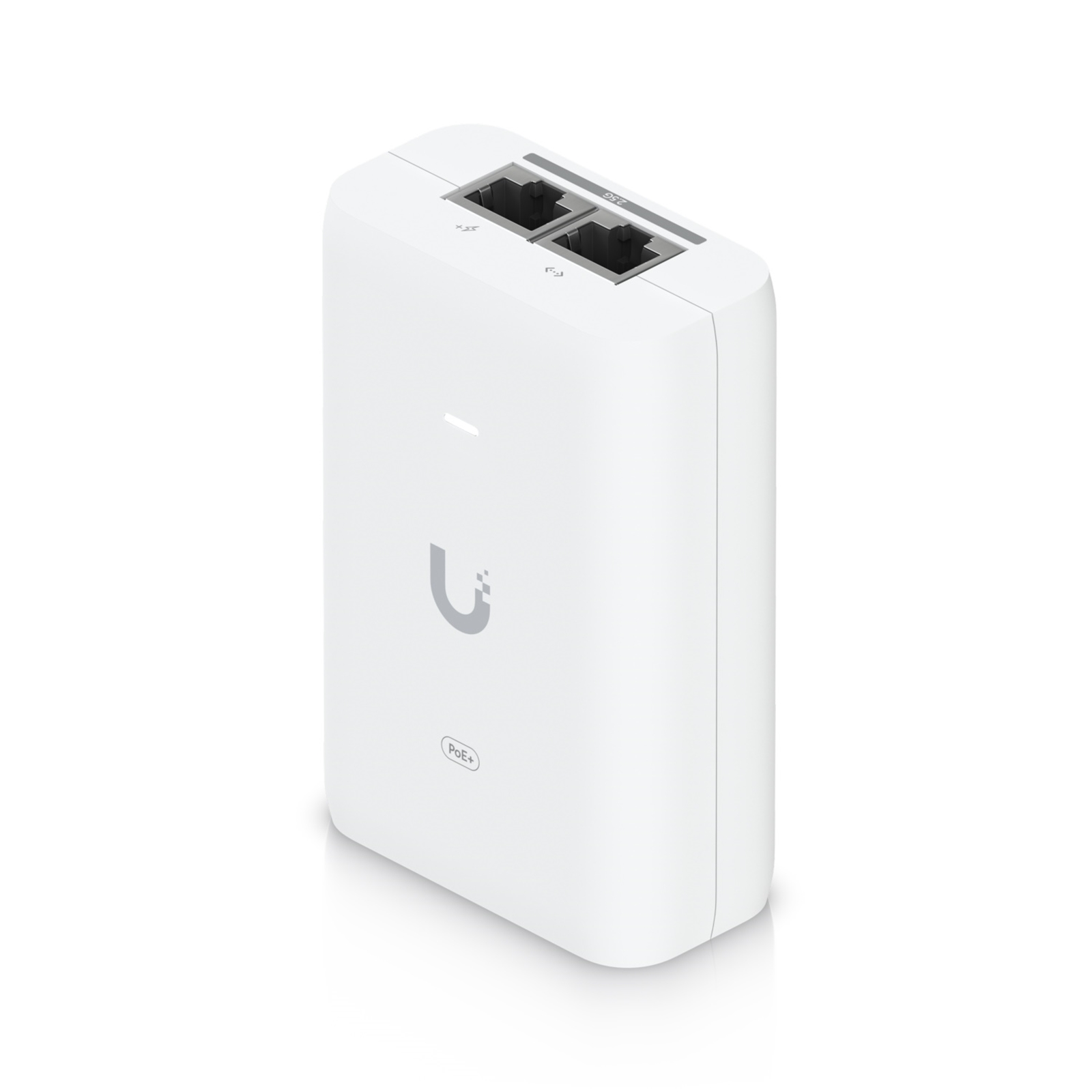

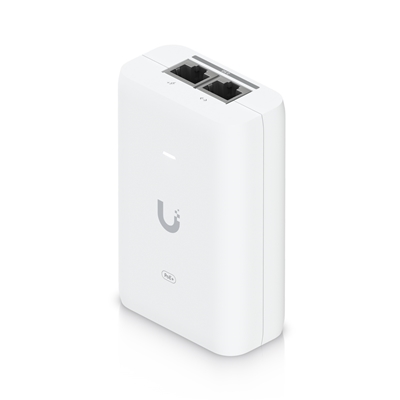

An adapter that can power UniFi PoE+ devices, reduce dependency on PoE switch power, and provide a Multi-Gigabit LAN connection.

Delivers up to 30W of PoE+
Surge, peak pulse, and overcurrent protection
Contains RJ45 data input, AC cable with earth ground, and PoE+ output
LED indicator for status monitoring

Dimensions
93 x 62 x 35 mm (3.7 x 2.4 x 1.4")

Weight
156 g (5.5 oz)

Output Voltage
48V DC @ 0.65A

LAN Activity Indicator
No

Gigabit LAN Port
Yes, up to 2.5 GbE

Remote Reset Capability
No

Reset Button
No

Rated Voltage
100—240V AC @ 50/60Hz

Input Current
0.75A max.

Inrush Current
<150A peak @ 230V AC

Efficiency
>87%

Output Ripple
1% max.

Switching Frequency
65 kHz max.

Line Regulation
< 1%

Load Regulation
< 3%

2-Pair Powering
Pins 4, 5 (+) and 7, 8 (-)

4-Pair Powering
No

Data In / POE
RJ45 shielded socket

Surge Protection
Difference and common mode

Clamping Protection
11V data, 60V power

Max. Surge Discharge
1500A power

Peak Pulse Current
36A data

Shunt Capacitance
<5 pF Data

Response Time
<1 ns

Certifications
CE, FCC, IC, UL, UKCA, KC, CCC, RoHS

Warranty:

Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.

CERTIFICATES
Compliance certificates	CCC, CE, Federal Communications Commission (FCC), Industry Canada (IC), KC, RoHS, UKCA, UL
ENERGY MANAGEMENT
AC adapter input voltage	100 - 240 V
AC adapter frequency	50/60 Hz
Input current	0.75 A
Output current	0.65 A
Power over Ethernet (PoE) voltage	48 V
Total Power over Ethernet (PoE) budget	30 W
FEATURES
LED indicators	Status
Wall mountable	Yes
Product colour	White
Power protection features	Over current, Peak pulse, Surge protection
Surge protection	Yes
NETWORKING
Power over Ethernet (PoE)	Yes
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Ethernet interface type	2.5 Gigabit Ethernet
OPERATIONAL CONDITIONS
Operating relative humidity (H-H)	10 - 95%
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating temperature (T-T)	32 - 104 °F
PACKAGING CONTENT
Number of products included	1 pc(s)
PORTS & INTERFACES
Ethernet LAN (RJ-45) ports	2
TECHNICAL DETAILS
Compliance certificates	CCC, CE, Federal Communications Commission (FCC), Industry Canada (IC), KC, RoHS, UKCA, UL
WEIGHT & DIMENSIONS
Weight	156 g
Height	93 mm
Width	62 mm
Depth	35 mm
