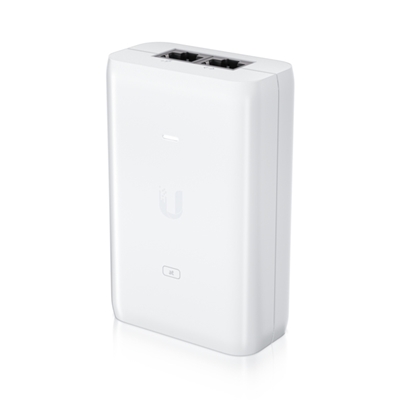

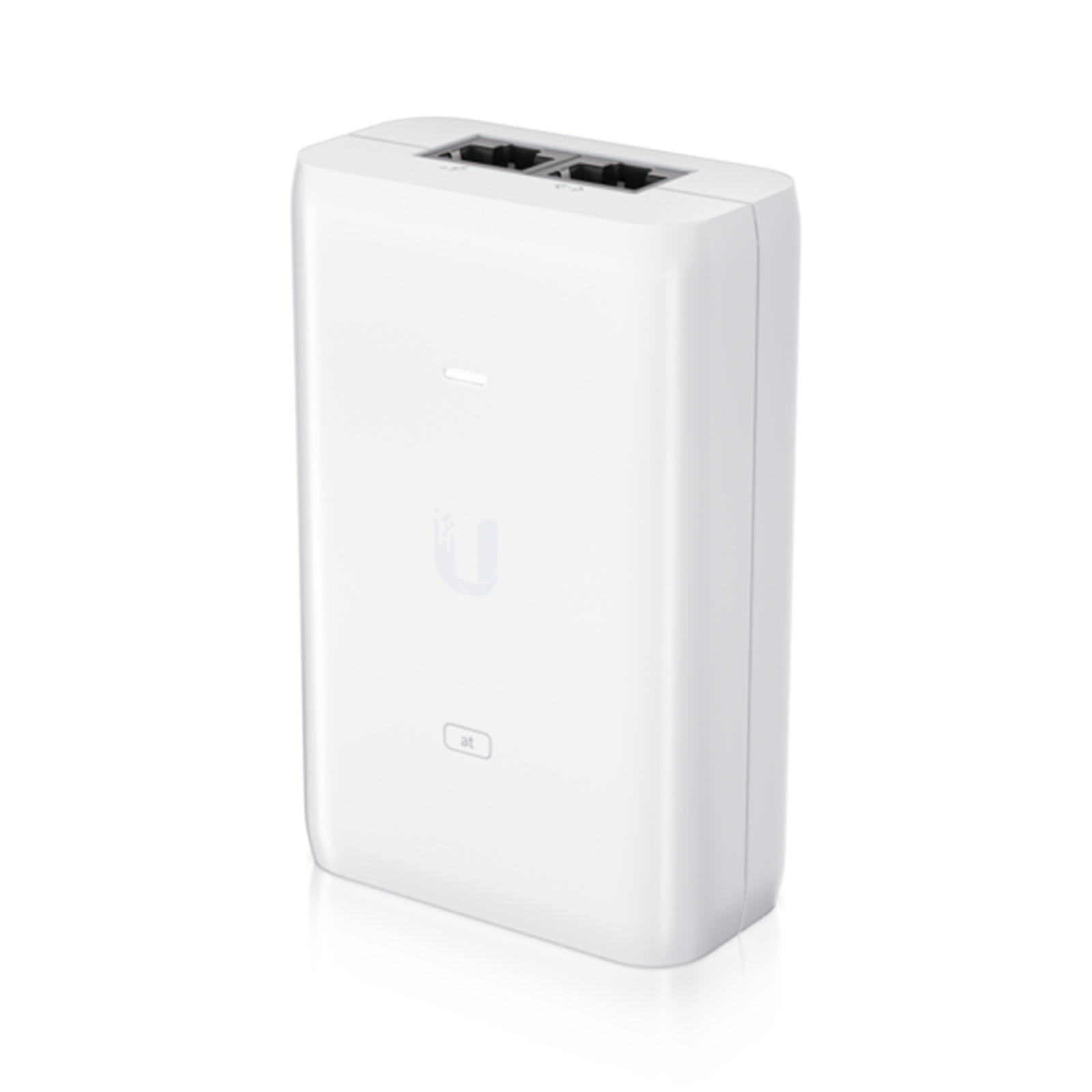

Ubiquiti U-POE+ (Previously U-POE-AT) Universal 802.3at 48V 30W Power POE+ Injector

NPUBI-U-POE-AT
Key Specifications
Product TypePOE Injector
POE Capability48v
Device SupportUniversal
/productImages/80/NPUBI-U-POE-AT_92708125.JPG
/productImages/80/NPUBI-U-POE-AT_54471189.jpg
/productImages/80/NPUBI-U-POE-AT_54471190.jpg
/productImages/80/NPUBI-U-POE-AT_54471191.jpg
/productImages/80/NPUBI-U-POE-AT_54471192.jpg
/productImages/80/NPUBI-U-POE-AT_54471193.jpg
/productImages/80/NPUBI-U-POE-AT_54471194.jpg
/productImages/80/NPUBI-U-POE-AT_54471195.jpg
Manufacturer : UBIQUITI
EAN : 817882027205
Manufacturer Part Code : U-POE+
Weight : 0.16 kg
Login For Pricing

Key Specifications
Product TypePOE Injector
POE Capability48v
Device SupportUniversal
Manufacturer :
UBIQUITI

EAN :
817882027205

Manufacturer Part Code :
U-POE+

Weight :
0.16 kg
Recommended Products

Compact adapter capable of delivering 30W of PoE+ to the U6 LR, U6 Pro, and other 802.3at devices.

The 802.3at PoE+ Injector (U PoE AT) is designed to power 802.3at PoE+ devices. The U PoE AT delivers up to 30W of PoE+ that can be used to power the Access Point WiFi 6 Long-range (U6 LR), Pro (U6 Pro), and other devices that adhere to the 802.3at PoE+ standard. It also provides enhanced protection against electrical surges.

Features
Delivers up to 30W of PoE+
Compatible with the U6 LR, U6 Pro, and other 802.3at PoE+ devices
Surge and clamping protection
AC cable with earth ground
Warranty:
Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.
CERTIFICATES
Compliance certificates CCC, CE, Federal Communications Commission (FCC), Industry Canada (IC), KC, RoHS, UKCA, UL
ENERGY MANAGEMENT
Input voltage 100 - 240 V
Input frequency 50/60 Hz
Input current 0.75 A
Output current 0.65 A
Power over Ethernet (PoE) voltage 48 V
Output power 30 W
FEATURES
LED indicators Status
Product colour White
Power protection features Over current, Peak pulse, Surge protection
Surge protection Yes
NETWORKING
Networking standards IEEE 802.3at
Power over Ethernet (PoE) Yes
Ethernet LAN data rates 10,100,1000 Mbit/s
Ethernet interface type Gigabit Ethernet
OPERATIONAL CONDITIONS
Operating relative humidity (H-H) 10 - 95%
Storage temperature (T-T) -30 - 70 °C
Operating temperature (T-T) 0 - 40 °C
Operating temperature (T-T) 32 - 104 °F
PACKAGING CONTENT
Number of products included 1 pc(s)
PORTS & INTERFACES
Ethernet LAN (RJ-45) ports 2
TECHNICAL DETAILS
Compliance certificates CCC, CE, Federal Communications Commission (FCC), Industry Canada (IC), KC, RoHS, UKCA, UL
WEIGHT & DIMENSIONS
Weight 156 g
Height 93 mm
Width 62 mm
Depth 35 mm
