Target Components Ltd

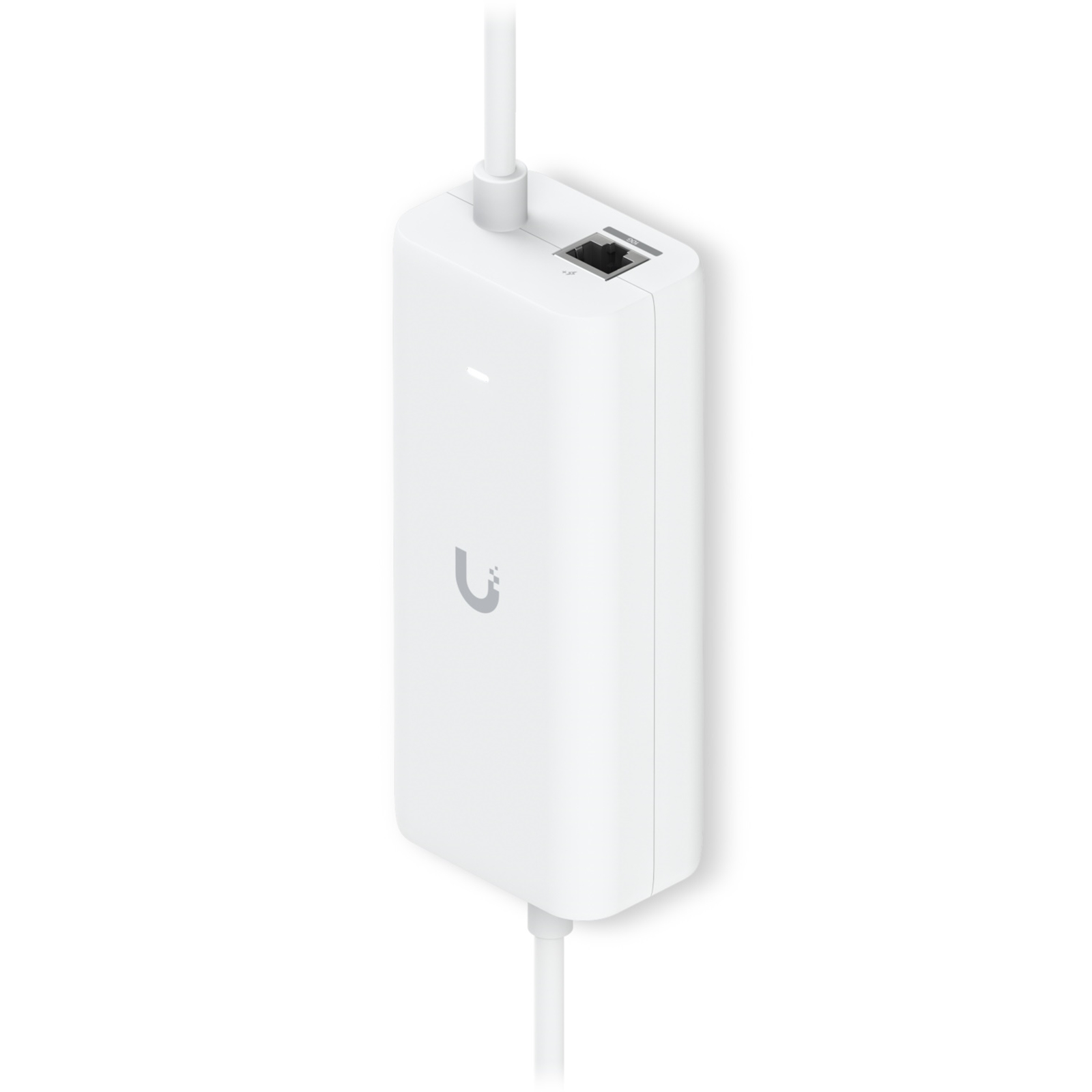

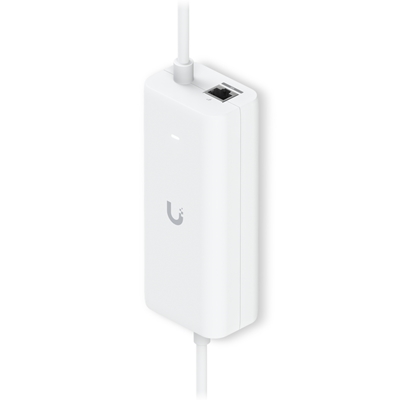

An AC adapter with integrated PoE, enabling the UniFi Cloud Gateway device to support PoE output on a single port.

Delivers up to 30W of PoE+
Supports wall mount, DIN rail and floating mount - sold separately
Lockable latch designed for power cord security

Dimensions
146 x 62 x 42 mm (5.7 x 2.4 x 1.7")

Weight
358 g (12.6 oz)

Cable Length
Type-C/Ethernet: 150 cm (4.9 ft)
Power cord: 180 cm (5.9 ft)

Output Voltage
Type-C: 5V@ 5A
PoE+: 48V@ 0.65A

LAN Activity Indicator
No

Gigabit LAN Port
Up to 10 GbE

Remote Reset Capability
No

Reset Button
No

Rated Voltage
100—240V AC @ 50/60Hz

Input Current
1.5A max.

Inrush Current
120A

Efficiency
82%

Output Ripple
1% max.

Switching Frequency
65 kHz

Line Regulation
< 5%

Load Regulation
< 5%

2-Pair Powering
No

4-Pair Powering
Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)

Data In / POE
RJ45 shielded socket

Surge Protection
Difference and common mode

Clamping Protection
11V data, 60V power

Max. Surge Discharge
1500A power

Peak Pulse Current
36A data

Shunt Capacitance
<5 pF Data

Response Time
<1 ns

Certifications
CE, FCC, IC, UL, UKCA, CCC, KC, RoHS

Warranty:

Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.

CERTIFICATES
Compliance certificates	CCC, CE, Federal Communications Commission (FCC), Industry Canada (IC), KC, RoHS, UKCA, UL, National Defense Authorization Act (NDAA)
ENERGY MANAGEMENT
AC adapter input voltage	100 - 240 V
AC adapter frequency	50/60 Hz
Input current	1.5 A
Output current	5 A
Power over Ethernet (PoE) voltage	48 V
Efficiency	82%
Total Power over Ethernet (PoE) budget	30 W
Inrush current	120 A
Switching frequency	65 kHz
Output voltage (USB Type-C)	5 V
Line regulation	5%
Load regulation	5%
Response time	1 ns
FEATURES
LED indicators	Yes
Wall mountable	Yes
Product colour	White
Power protection features	Peak pulse, Surge protection
Surge protection	Yes
NETWORKING
Power over Ethernet (PoE)	Yes
Ethernet LAN data rates	10,100,1000,10000 Mbit/s
Ethernet interface type	Gigabit Ethernet
OPERATIONAL CONDITIONS
Operating relative humidity (H-H)	10 - 95%
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating temperature (T-T)	32 - 104 °F
PACKAGING CONTENT
Power cord included	Yes
Number of products included	1 pc(s)
PORTS & INTERFACES
Ethernet LAN (RJ-45) ports	1
USB Type-C ports quantity	1
TECHNICAL DETAILS
Compliance certificates	CCC, CE, Federal Communications Commission (FCC), Industry Canada (IC), KC, RoHS, UKCA, UL, National Defense Authorization Act (NDAA)
WEIGHT & DIMENSIONS
Weight	358 g
Height	146 mm
Width	62 mm
Depth	42 mm
