Target Components Ltd

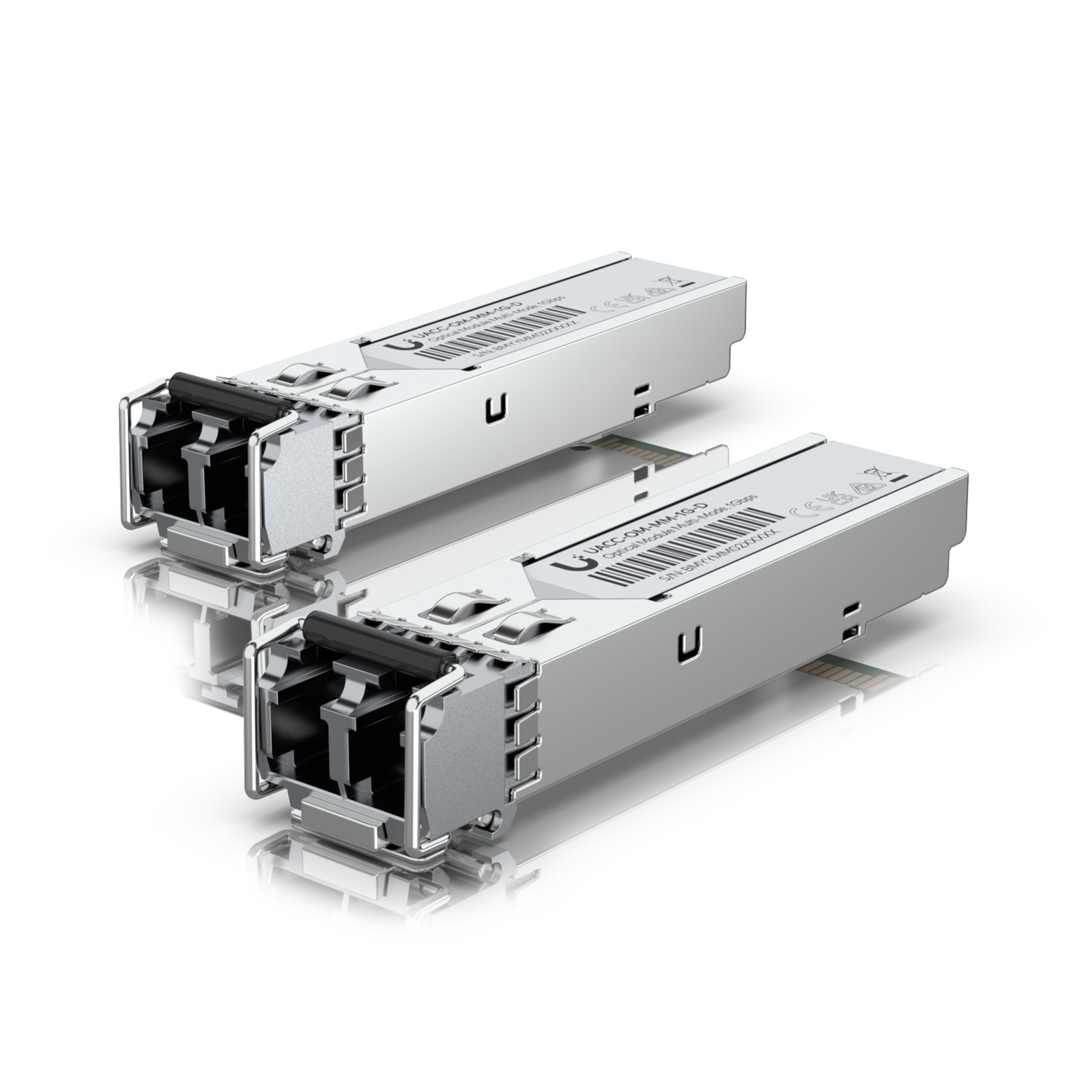

SFP transceiver that supports 1G connections up to 550 m using multi-mode fiber with a duplex LC UPC connector.

Max data rate: 1 Gbps
Compatible with SFP interfaces
Duplex LC UPC connector
Supports multi-mode fiber connections up to 550 m

Specifications

Supported Media
Multi-mode fiber

Connector Type
(2) LC

TX wavelength
Black latch: 850 nm

RX wavelength
Black latch: 850 nm

Data Rate
1 Gbps

Max. Power Consumption
0.66W

Cable Distance
550m

Warning
CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014 – Do not look into the ends of the fiber optic cable or SFP module while converters are powered.

Warranty:

Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.

FEATURES
Product colour	Stainless steel
LOGISTICS DATA
Quantity per pack	2 pc(s)
OPERATIONAL CONDITIONS
Operating temperature (T-T)	0 - 70 °C
Maximum operating temperature	70 °C
PACKAGING CONTENT
Quantity per pack	2 pc(s)
PACKAGING DATA
Number of products included	2 pc(s)
PERFORMANCE
Interface type	SFP
Maximum data transfer rate	1250 Mbit/s
Fiber optic connector	LC
Maximum transfer distance	550 m
SFP transceiver type	Fiber optic
Rx wavelength (max)	850 nm
Tx wavelength (max)	850 nm
Multi-mode fiber (MMF) supported	Yes
