Target Components Ltd

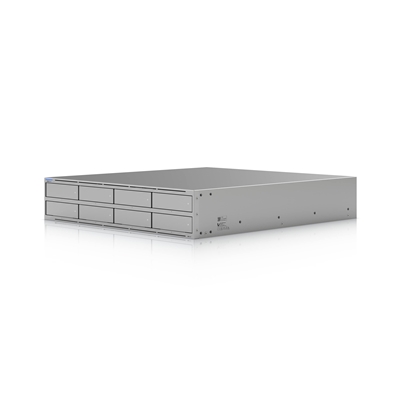

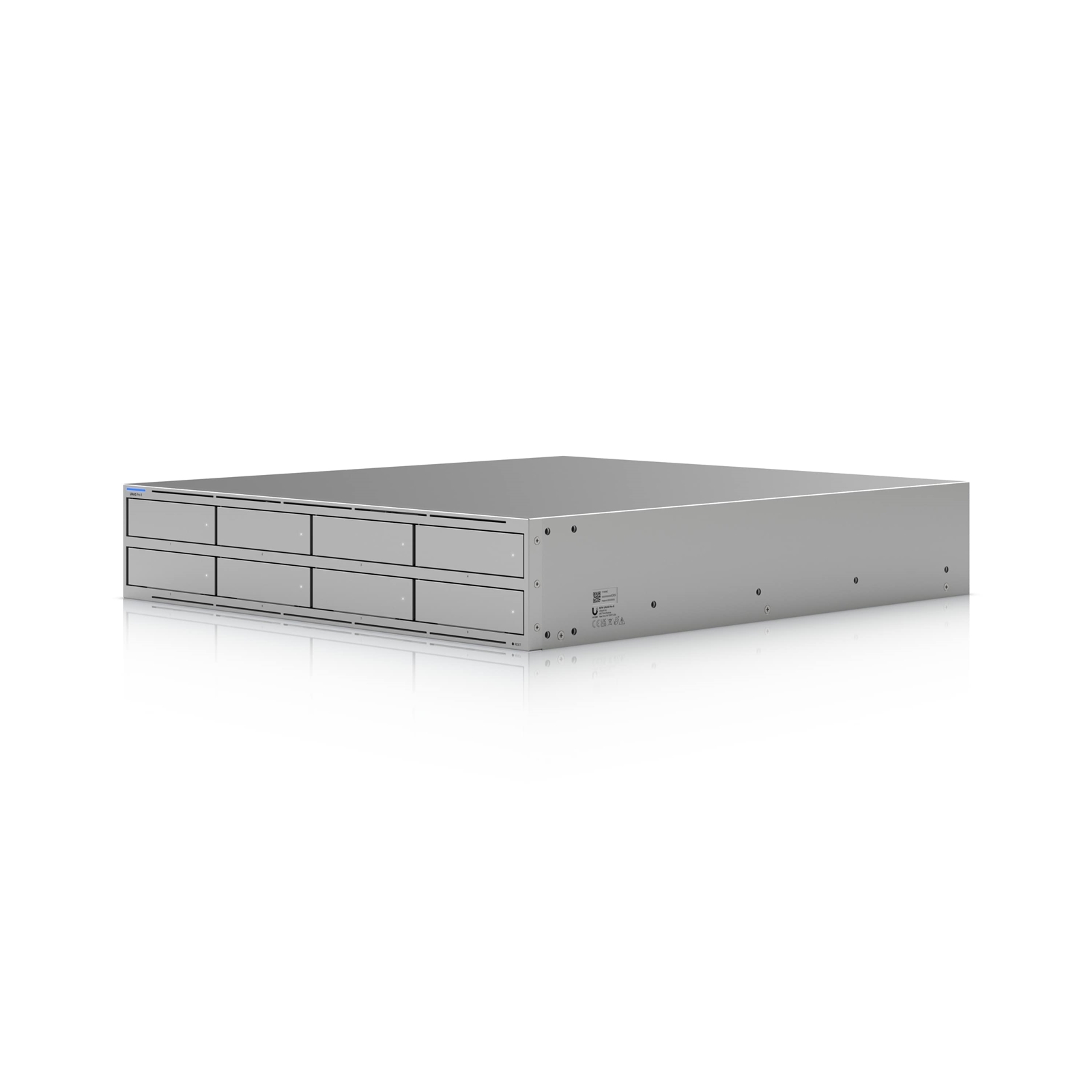

Unbiquiti 2U rack-mount NAS with (8) 2.5/3.5" HDD bays and (2) M.2 NVMe SSD cache slots, delivering faster access, lower latency, and high-availability 10 Gbps networking for large-scale file storage and sharing.

Specifications

Overview

Dimensions
442.4 x 480 x 87.4 mm
(17.4 x 18.9 x 3.4")

Storage Capacity
(8) 3.5" drive bays
(2) M.2 NVMe bays

Networking Interface
(2) 10G SFP+ (10G Only)
(1) 10 GbE RJ45 (10G/5G/2.5G/1G/100M)

Power Redundancy
Yes

Form Factor
Rack mount (2U)

Hardware
Hard Drive Capacity
(8) 2.5/3.5" HDD / SSD support
(2) M.2 NVMe SSD support

Max. Power Budget for Drives
225W

Max. Power Consumption
250W

Power Method
(2) AC input, Hot-swappable power modules

Power Supply
(2) Hot-swappable AC/DC 550W power modules

Processor
Quad-Core ARM Cortex-A57 at 2.0 GHz

Memory
16 GB

Management
Ethernet

RF Interface
Bluetooth 4.1

Weight
11.5 kg (25.35 lb)

Enclosure Material
SGCC steel

Mount Material
SGCC steel

LEDs
Ethernet - Yes
SFP+ - Yes
HDD - Yes
System - Yes

Ambient Operating Temperature
-5 to 40 C (23 to 104 F)
Ambient Operating Humidity
5 to 95% noncondensing

NDAA Compliant
Yes

Certifications
FCC, CE, IC

Warranty:

Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.

DESIGN
Chassis type	Rack (2U)
Product colour	Grey
Housing material	SGCC
Cooling type	Active
ENERGY MANAGEMENT
Power consumption (typical)	550 W
MEMORY
Internal memory	16 GB
OPERATIONAL CONDITIONS
Operating temperature (T-T)	-5 - 40 °C
PERFORMANCE
Type	NAS
Backup function	Yes
PORTS & INTERFACES
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	2
Fiber optic connector	SFP+
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB port	Yes
PROCESSOR
Processor model	Cortex-A57
Processor manufacturer	ARM
Processor family	Cortex-A
Processor cores	4
Processor architecture	ARM Cortex-A57
Processor frequency	1.7 GHz
STORAGE
RAID support	Yes
Storage drive interface	Serial ATA
Storage drives installed	No
Number of storage drives installed	10
Installed storage drive type	No
Supported storage drive types	HDD & SSD
WEIGHT & DIMENSIONS
Weight	11.5 kg
Height	87.4 mm
Width	442.4 mm
Depth	480 mm
